Flywheel-Driven Water Booster Pump Bearing Fault
Proactive bearing replacement was performed on a critical flywheel-driven water booster pump after detecting an outer race defect. The flywheel assembly was removed, bearings replaced, and the flywheel balanced and laser-aligned before reinstallation.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

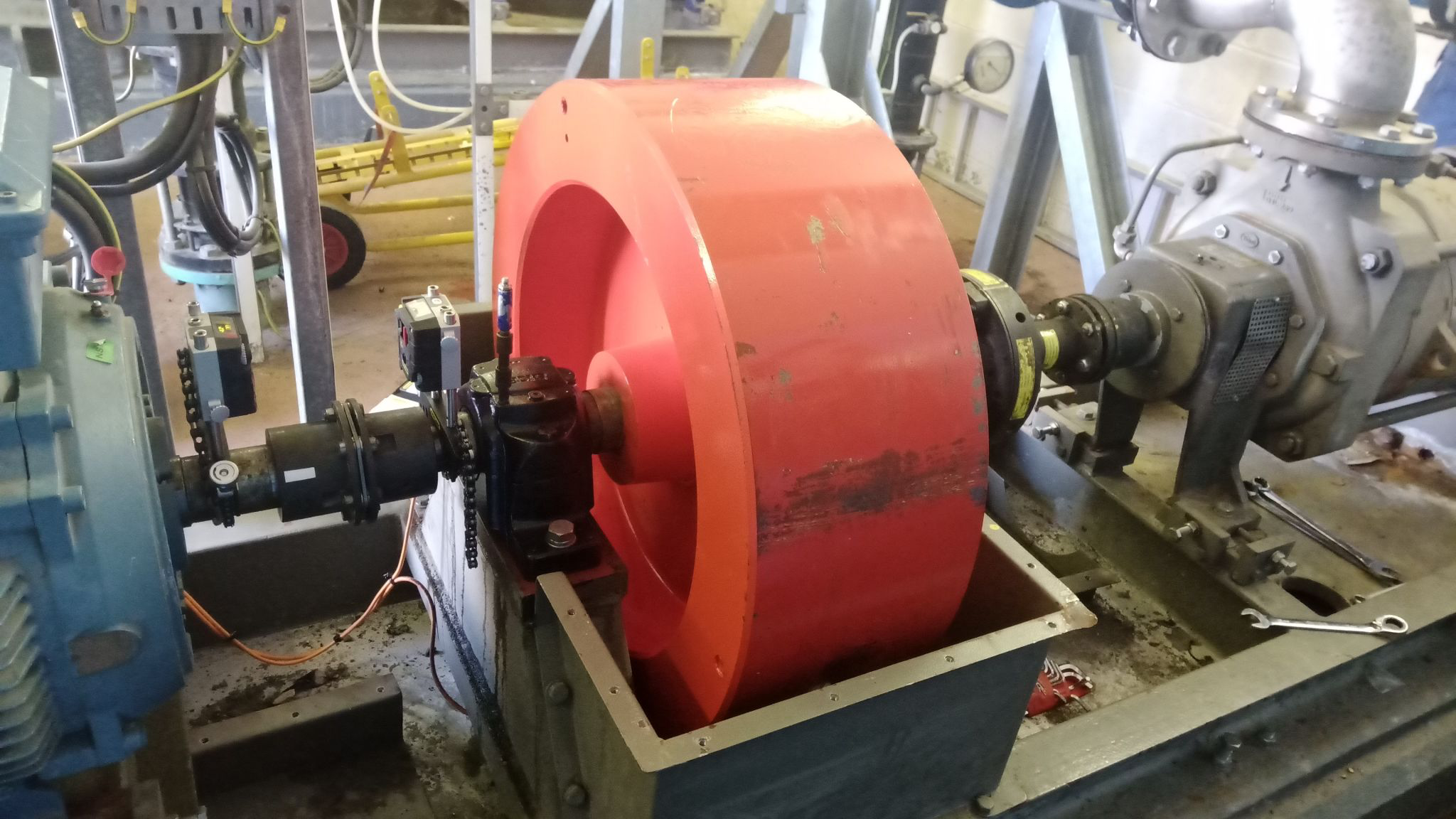

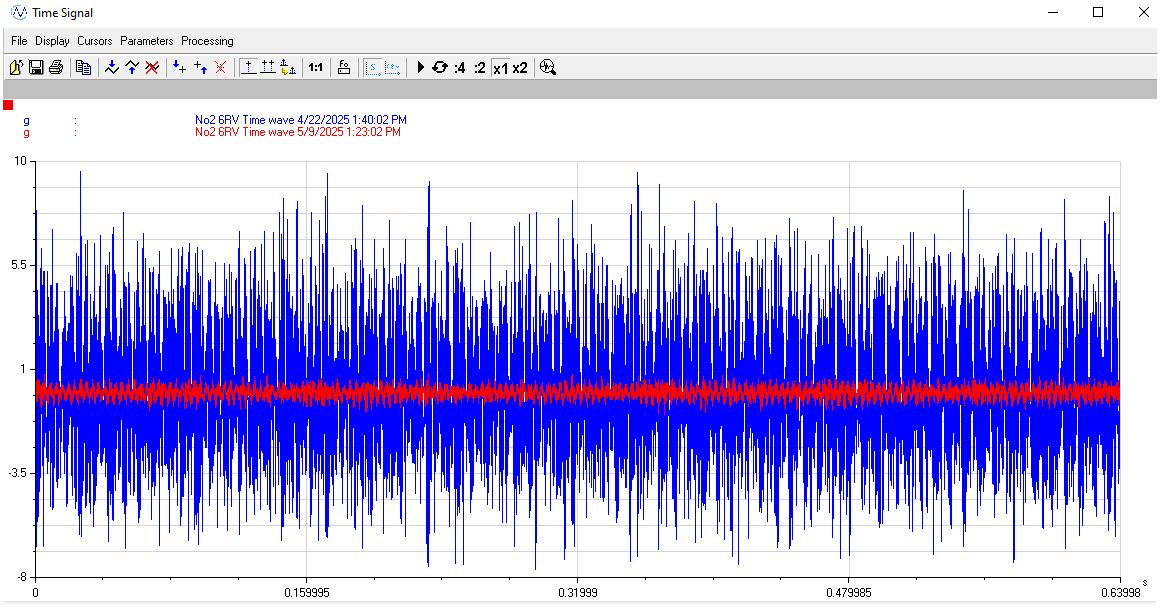

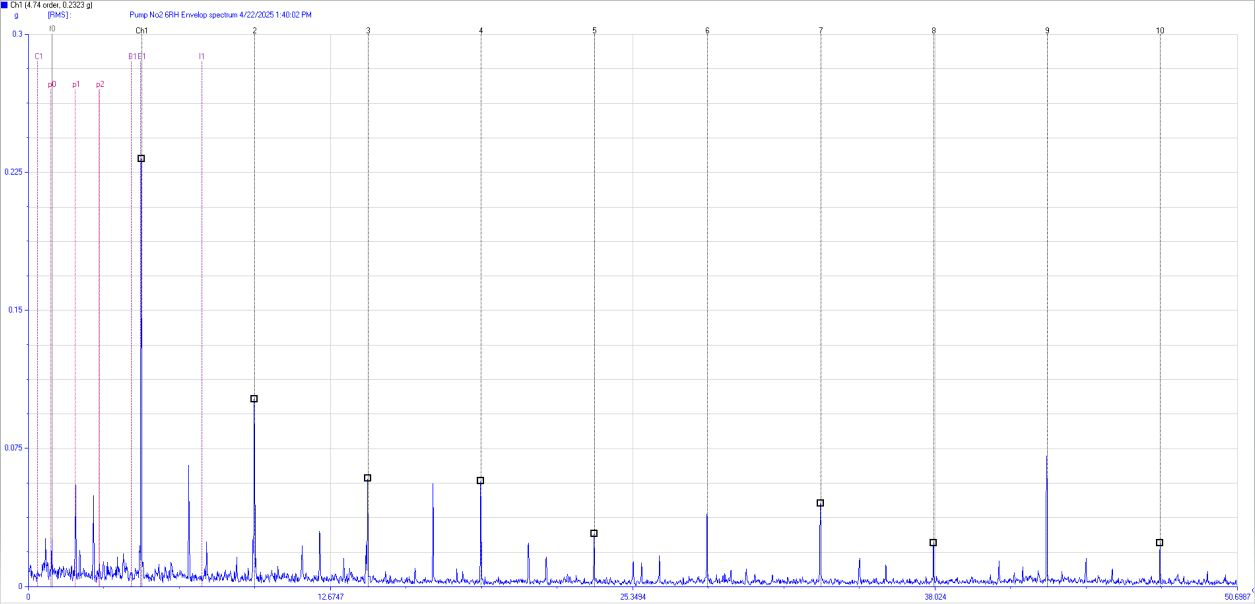

Proactive Bearing replacement on this critical flywheel driven water booster pump carried out last week🔧🔩⚙️. An outer race🏃➡️ defect was detected🧐🔍 and monitored 📊until a planned intervention could be carried out. Work was then carried out to have the Flywheel assembly removed 🔧 🧰🏗. Once removed the bearings were replaced 🆕️✅before the Flywheel was balanced ⚖️to G1.0. and Laser Aligned 🎯on re-installtion. Inspection 👀👁️of the bearings confirmed the inner race defect diagnosis
Additional Images
