Small Water Pump Bearing Failure
Bearing defect on 185 g’s is severe, with multiple defects including damaged balls, outer race, and cage.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

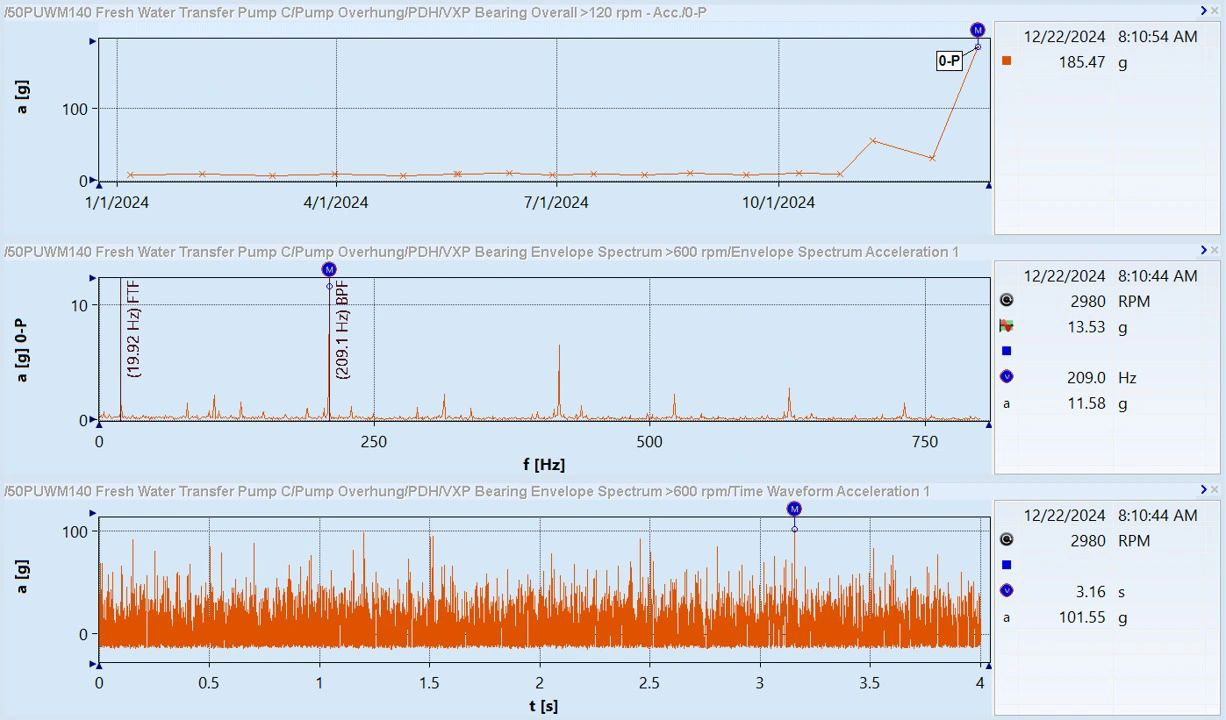

How severe is the bearing defect on 185 g's? see pictures
Small water pump running on 3000rpm oil lubricated coupled by motor 40HP. Redundant unit.
The easiest way to define a bearing defect is appearance audible noise, whenever you hear audible noise on high speed unit mostly the acceleration g's swing is about 50-100++, the bearing already damaged.

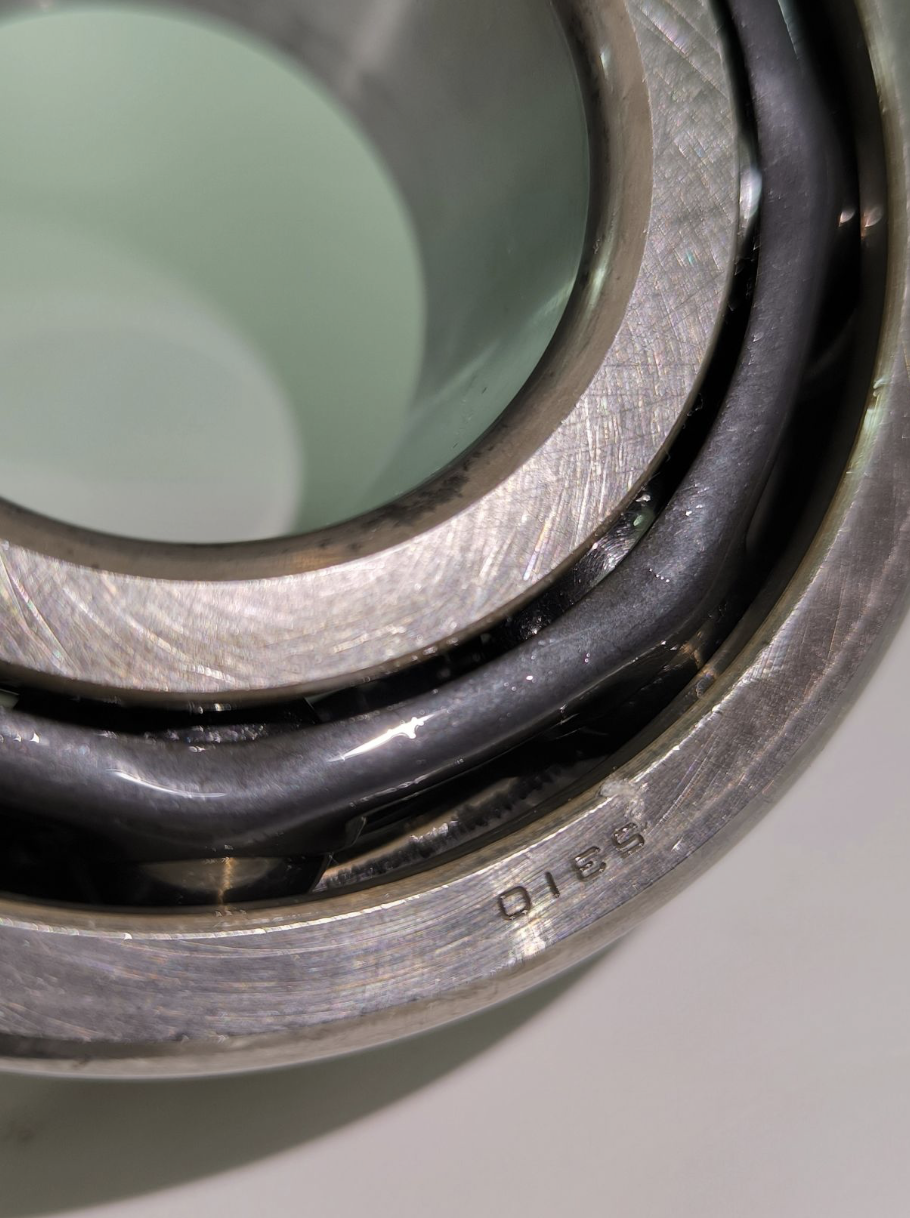

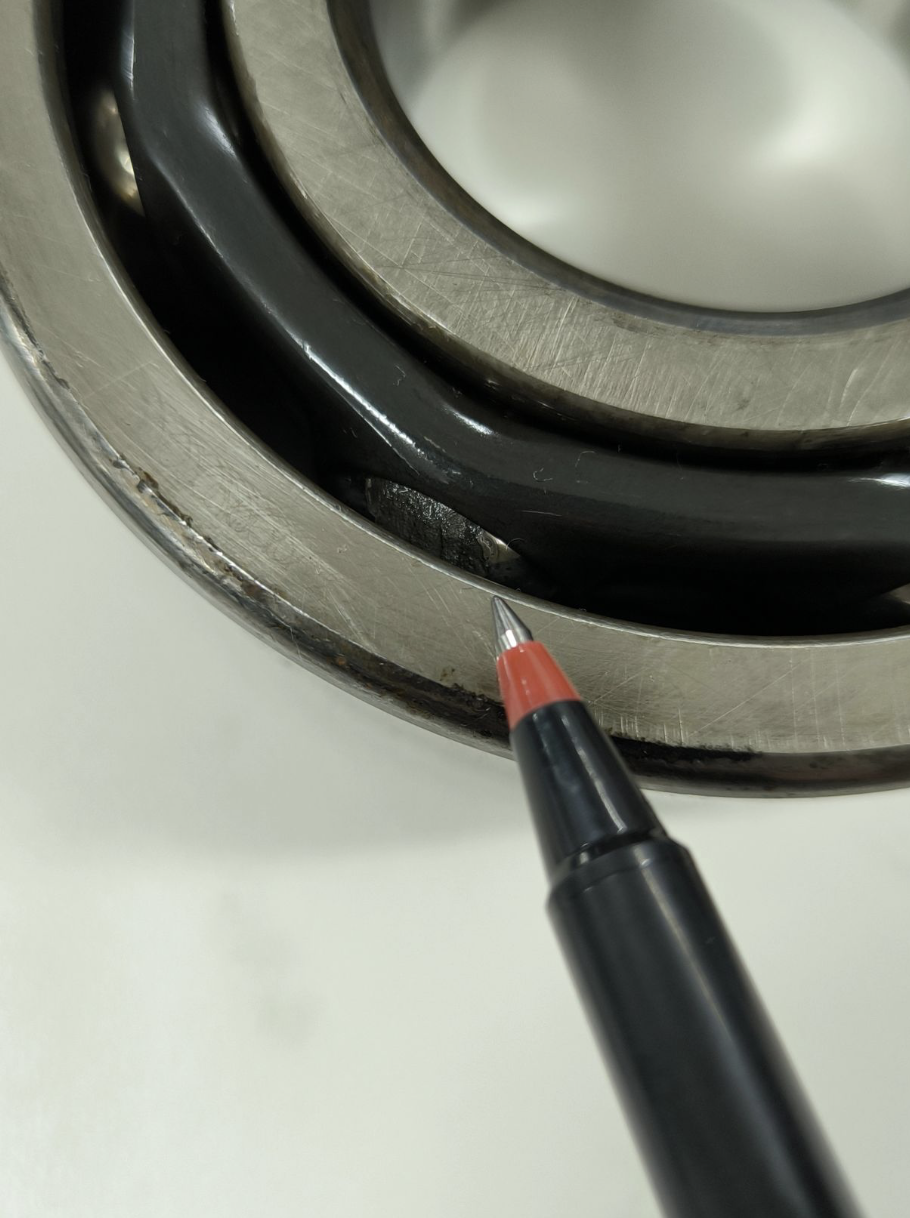

Multiple bearing defects occur on this bearing. Two balls were damaged, outer race defect, the cage also damaged. Captured by Muhammad Fauzan
