Cavitation in Desalination Brine Pump
Cavitation in a desalination brine pump, identified through vibration analysis, is causing damage and efficiency loss. Key findings include high-frequency energy bursts, irregular pulsations, and elevated noise floors, indicating fluid-related issues. Addressing cavitation early is crucial to prevent impeller and bearing damage, energy waste, and structural weakening.
Cavitation in Desalination Brine Pump
Cavitation is a major issue in pump systems, causing vibration, wear, and efficiency loss. A recent vibration analysis of a desalination brine pump revealed clear signs of cavitation that need attention.
🔍 Key Findings:

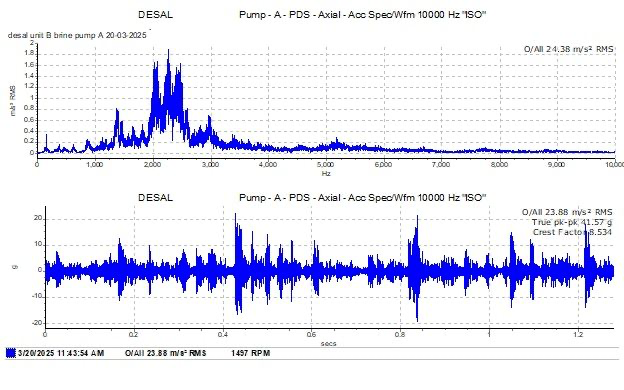

✔️ High-Frequency Energy Bursts – Sharp spikes in the spectrum show intense impacts from collapsing vapor bubbles.
✔️ Irregular Pulsations – the high frequency bursts of energy are clearly visible the pulsations in the waveform are not evenly spaced ,the source of the vibration is not periodic, proving the issue is not mechanical but fluid-related.
✔️ Raised Noise Floor – The background noise in the spectrum is elevated, a strong sign of continuous cavitation activity.
✔️ Energy Mounds Under Peaks – Impacting is reflected in the spectrum, accelerating component stress and failure.

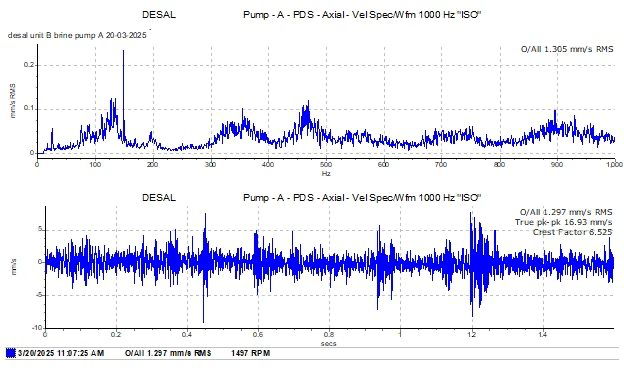

✔️ Peak at Vane Pass Frequency – The spectrum reflects the impacting in the raised noise floor and mounds of energy under the peaks. The highest peak is at vane pass.
⚠️ Why It Matters:
If ignored, cavitation leads to:
🔸 Impeller & Bearing Damage – Shorter equipment life and costly repairs.
🔸 Energy Waste – More power needed to maintain performance.
🔸 Structural Weakening – Long-term stress on pump components.
🔧 How to Fix It:
🔹 Check Suction Conditions – Ensure the Net Positive Suction Head (NPSH) is adequate.
🔹 Inspect the Impeller & Vanes – Look for pitting and erosion.
🔹 Optimize Flow & Pressure – Adjust operating conditions to reduce cavitation risk.
💡 Cavitation doesn’t just make noise—it slowly damages the pump and reduces its reliability.. discovering it early means fewer breakdowns, lower costs, and better efficiency.
Additional Images
