Broken and Pitted Gear Failure Case Study
Gear failure case study presented, featuring broken, pitted teeth and characteristic frequency spectra.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
I share with you a case of local fault gear:
Gear failures are critical issues that can affect the performance and safety of machinery. These failures can be caused by different factors and can manifest themselves in various ways.
Below I present a gear with broken, pitted teeth. It is characterized by having predominant gear frequencies with a large number of sidebands at the speed of the component at fault, which increases according to the severity of the damage.

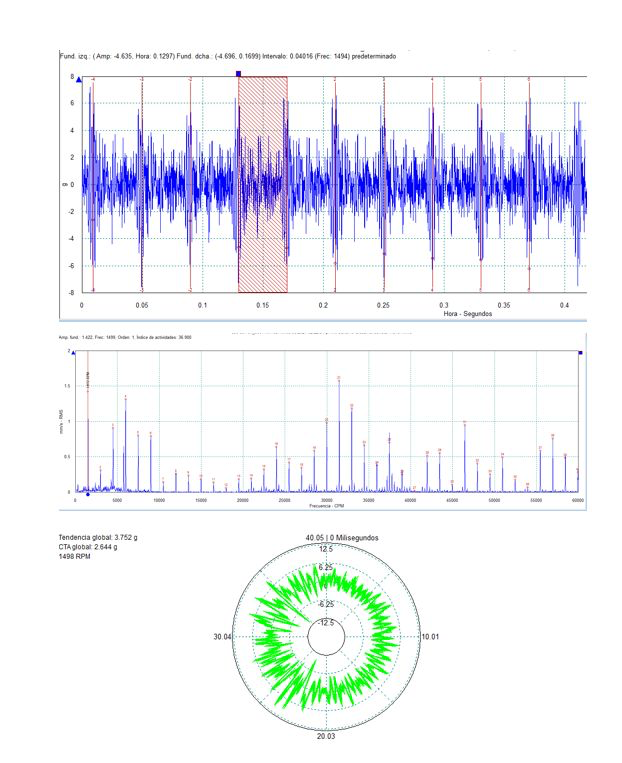

I add velocity, waveform, and contribution graph spectra.
