Poor Lubrication Related Damage to Gimbal Bar
Damage to the gimbal bar was caused by poor lubrication, resulting in axial vibration and first harmonics. Regular lubrication is crucial to prevent sudden failures.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Damage to the cardan bar due to poor lubrication.

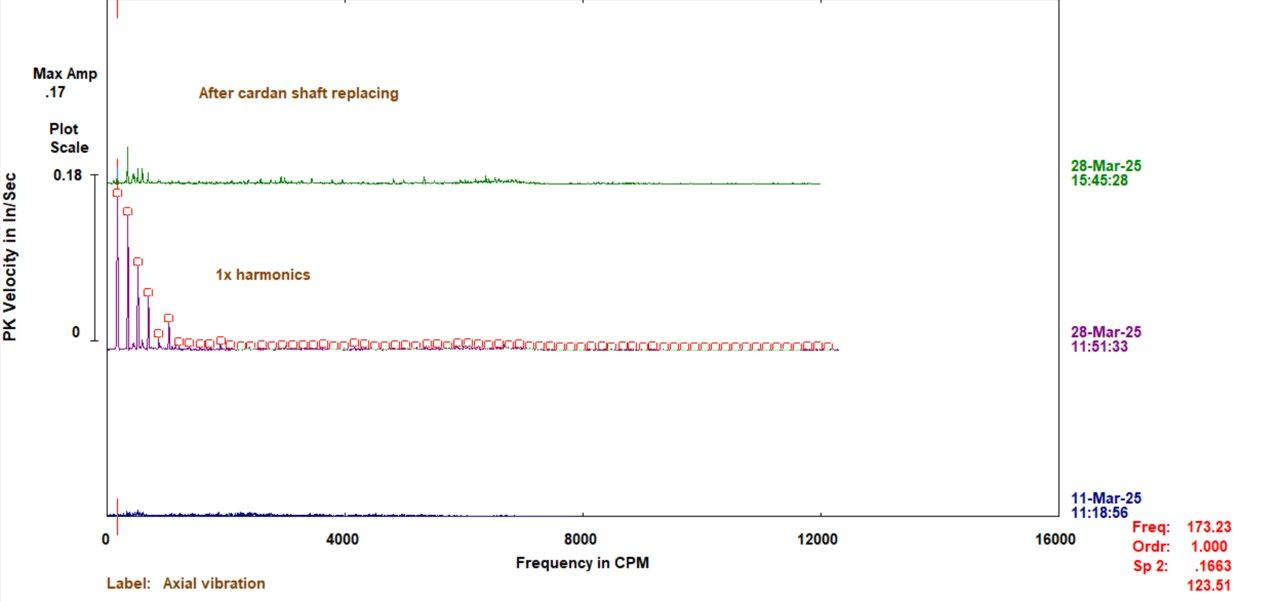

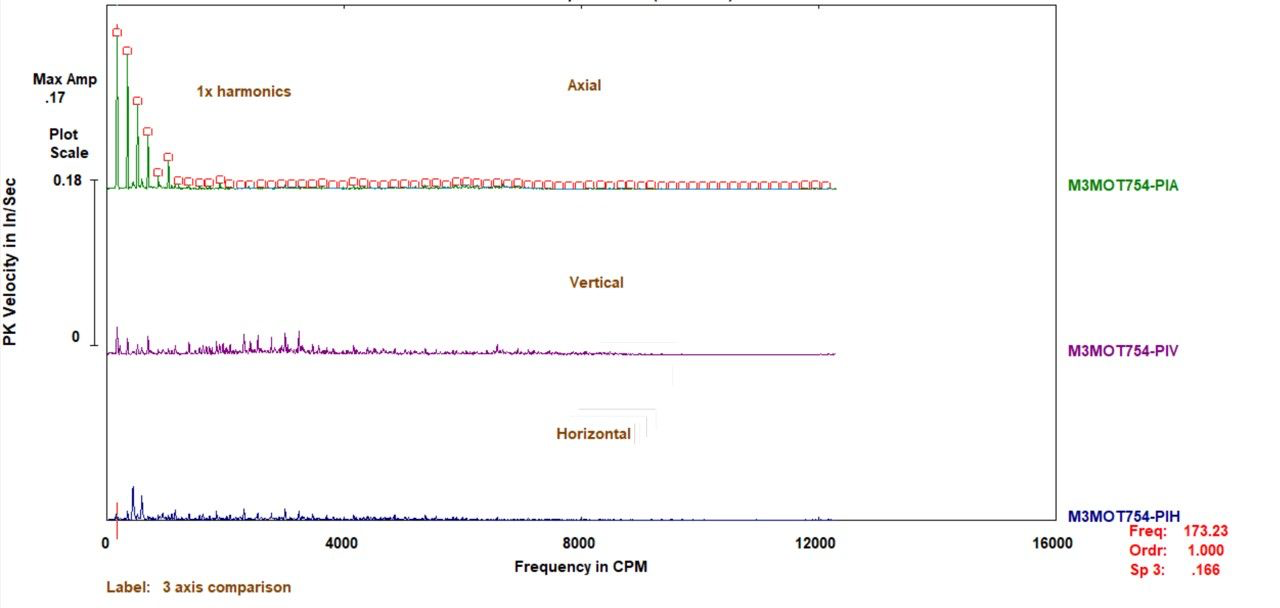

Vibration readings were taken when monitoring was requested because wobble was detected in the gimbal bar. Axial vibration and the first harmonics are triggered by damage to the gimbal bar.
Upon physical inspection, it was detected that it had not been lubricated. It is important to comply with lubrication programs in couplings so as not to avoid sudden failures in their elements.
MPC, your reliability partner.
