Ball Mill Motor Bearing Block
The bearing block of a ball mill motor, consisting of a bearing and bushing, supports the motor shaft and reduces friction. This ensures smooth operation, minimizes wear, and extends equipment life.
The bearing block of the motor of a ball mill is a fundamental part that serves to support and reduce friction between the moving parts of the motor. Here's a more detailed explanation:
1.Bearing: It is a bracket that holds the motor shaft in position and allows it to rotate smoothly. It can be likened to a "bed" for the shaft, providing stability and alignment.
2.Bushing: It is a bushing or liner inside the bearing that reduces friction between the shaft and the bearing. It is usually made of low-friction materials, such as bronze or special alloys, to allow the shaft to rotate freely with minimal resistance.
3.Ball mill motor: In a ball mill, the motor is responsible for rotating the drum that contains the balls and the material to be ground. The bushing bearings ensure that the engine runs efficiently, reducing wear and tear and extending the life of the equipment.
In summary, the bushing bearing is crucial for the proper functioning of a ball mill's motor, as it minimizes friction and wear, ensuring smooth and efficient operation.

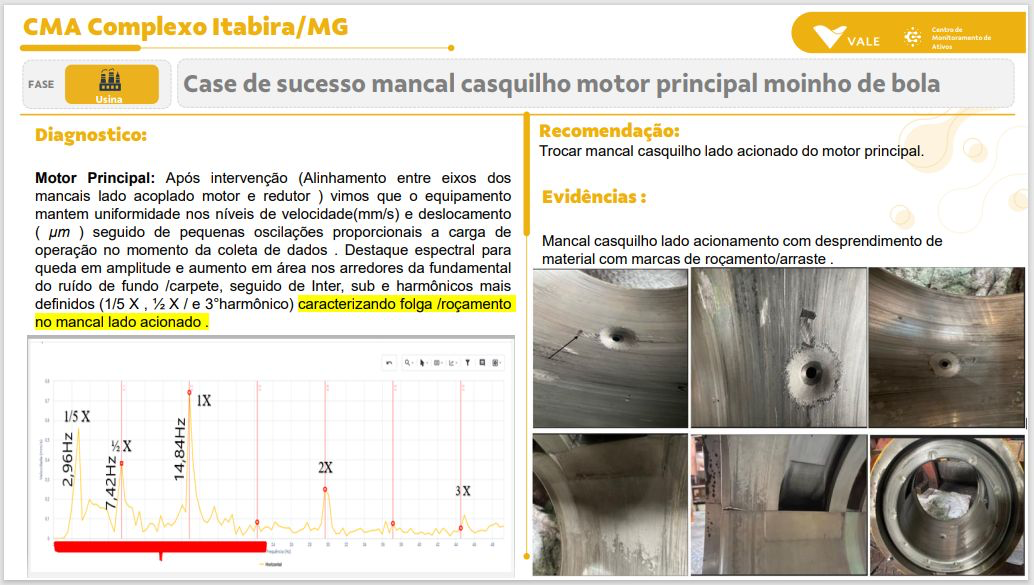

Below is one of the successful cases associated with the bushing on the driven side of the main motor of the ball mill, where our CMA Predictive Itabira-MG team was able to diagnose through the remote system of the Dynamox platform in a timely manner, being able to act preventively, avoiding unexpected production stoppage.
Additional Images
