Centrifugal Pump Coupling Membrane Damage
Centrifugal pump coupling membrane damage caused noisy operation and changes in FFT spectra. Corrective action included replacing the coupling spacer and reviewing and correcting alignment.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
CATCH OF THE DAY
API OH2 TYPE CENTRIFUGAL PUMP COUPLING MEMBRANE DAMAGE:
OBSERVATIONS:
· NOISY OPERATION,
· CHANGE IN FFT SPECTRA WITH MULTIPLE HARMONICS,
· NO STEP CHANGE IN VIBRATION OVERALL AMPLITUDE (less than 2.0mm/sec Pk)
· IMPACTS IN TWF
CORRECTIVE ACTION: COUPLING SPACER REPLACED, ALIGNMENT REVIEWED AND CORRECTED.

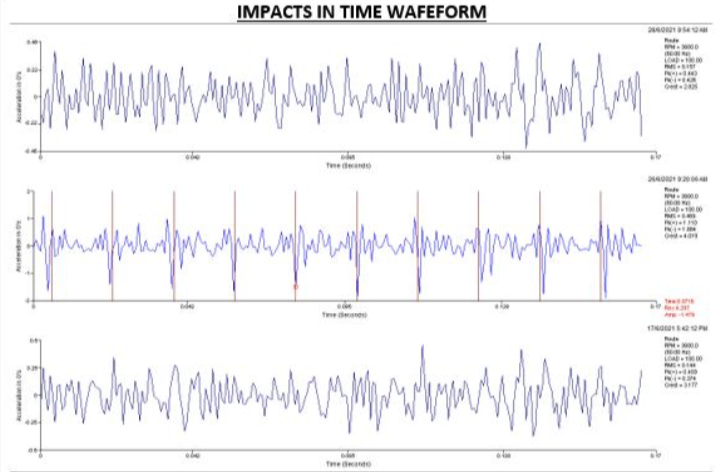

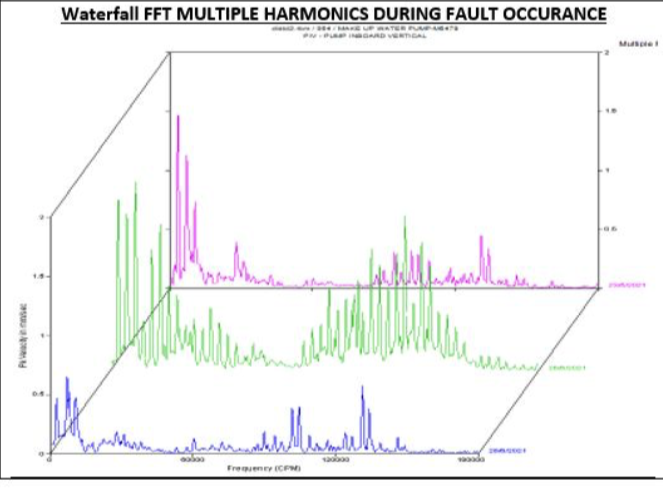

note: below is damaged coupling membrane. waterfall and time waveform before, with failure (middle data) and after correction.
