In the world of vibration analysis, sidebands are a critical piece of the puzzle in diagnosing machinery health. But what exactly are they?

**What Are Sidebands?**

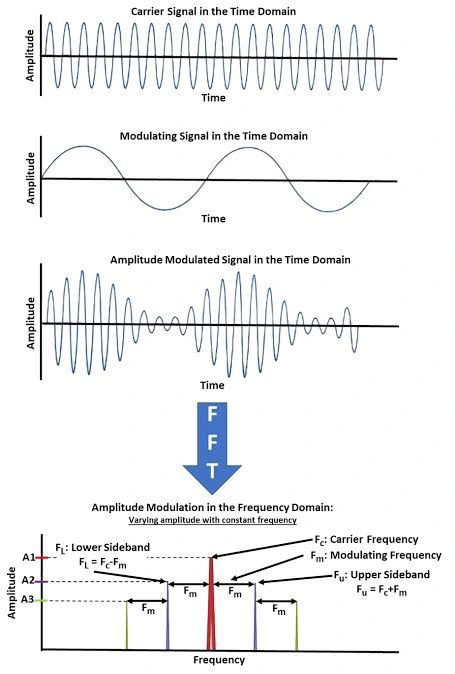

Sidebands are frequencies that appear in the frequency domain due to the modulation of a carrier signal by a modulating signal. Imagine gears meshing perfectly with no issues—this would result in vibration activities occurring only at the Gear Mesh Frequency (GMF). However, in reality, imperfections such as worn or damaged teeth or shaft play cause additional frequencies to appear around the GMF. These additional frequencies are known as sidebands.

**Types of Modulation**
Sidebands are typically formed from two types of modulation:
1. **Amplitude Modulation**: This is the most common form in vibration analysis. It results in a new signal with varying amplitude but at a constant frequency.
2. **Frequency Modulation**: This form is less common and results in a new signal with a constant amplitude but varying frequency.

**Examples of Sidebands in Vibration Analysis**
1. **Bearing Related Issues**: When rolling element bearings deteriorate, sidebands can appear due to modulation of the running speed around the bearing tones.
2. **Gear Related Issues**: Worn or damaged gear teeth cause sidebands to appear around the Gear Mesh Frequency.
3. **Electrical Related Issues**: Damaged rotor bars in electric motors can cause sidebands due to modulation of the slip frequency around the rotor speed.

Understanding sidebands can provide valuable insights into the health of your machinery, helping you diagnose and address issues before they lead to catastrophic failures.
learn more about vibration analysis
