Leach Tank Gearbox Broken Gear Teeth
Increased vibration from worn and broken gear teeth in a leach tank gearbox led to inspection.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

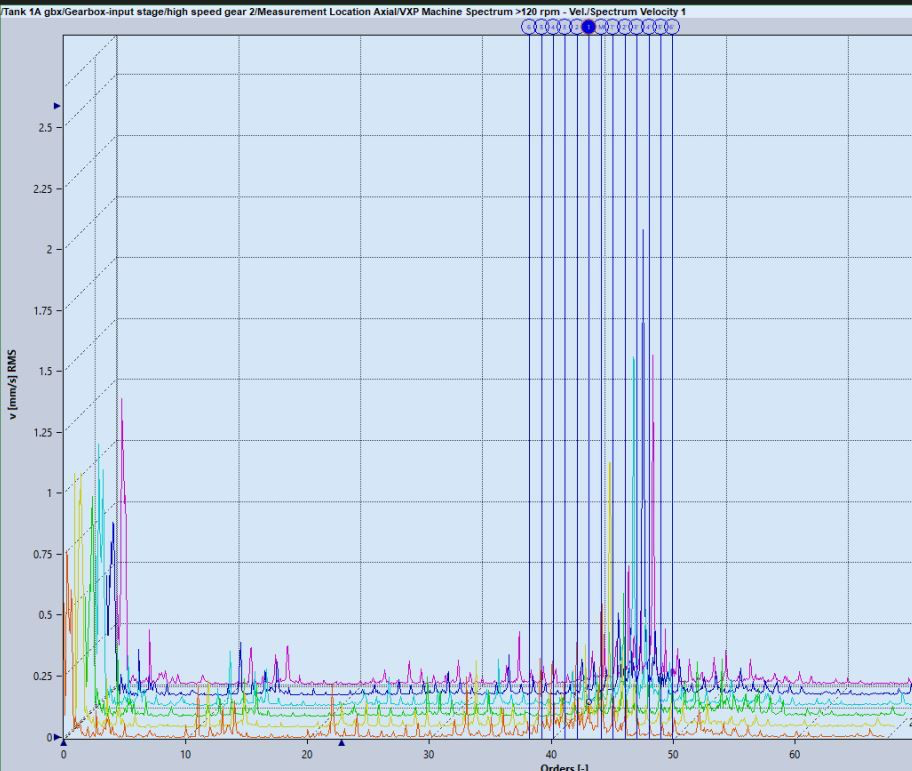

One of the leach tank gearboxes on site was found worn upon inspection due to increase in vibration from gear teeth. The sidebands of high-speed gear mesh frequency peak had gone up from 0.1mm/sec to 0.25mm/sec which led to the inspection. Both high-speed and low-speed gear teeth were found worn and some teeth were broken. Time waveform also showed impacts spaced at running speed of shaft and had increased in amplitude.
Additional Images
Post Information
Category:
Vibration Case Study
Language:
English
Reading Time:
1 min
Tags
Original Authors
Rohit Radhakrishnan
