Cracked Tooth in Gearbox Case by Vibration
Advanced vibration analysis diagnostics, including time waveform, autocorrelation signal, and circular plot analysis, are used to identify a cracked tooth in a gearbox.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Identifying a Cracked Tooth in Gearbox with Advanced Vibration Analysis Diagnostics.

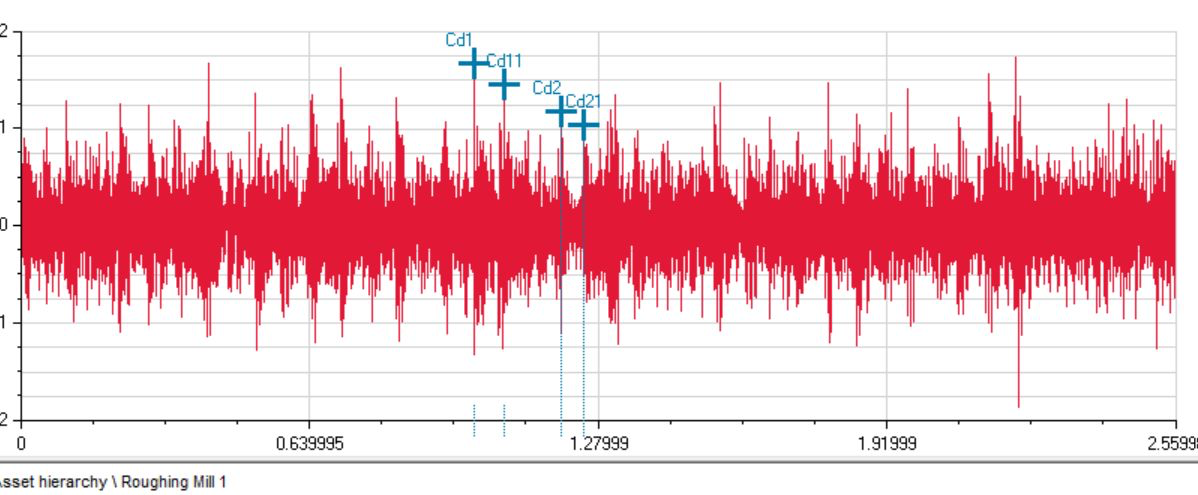

1. Time Waveform (TW) Analysis: Visualized raw vibration data to detect irregularities.
2. Autocorrelation Signal: Enhanced detectability of periodic faults.

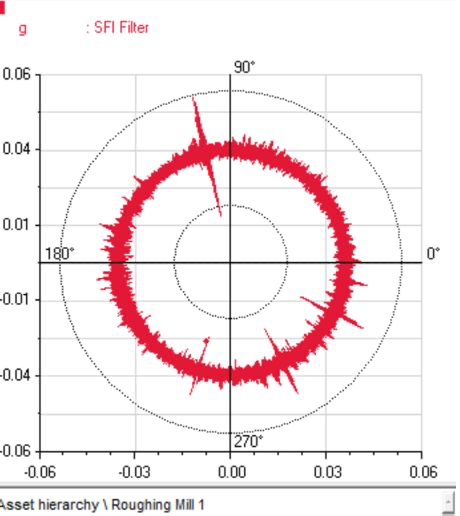

3. Circular Plot: Mapped vibration data to highlight deviations and confirm the crack.
