Air Screw Compressor Mis-Diagnosis and Real Diagnosis Case
A client’s air screw compressor was misdiagnosed as needing a full overhaul due to screw wear. A second opinion revealed the real issue: screw misalignment caused by a flexible machine foundation, requiring structural reinforcement instead of a costly screw replacement.
The Cost of Misdiagnosis in Machinery Analysis
We were recently contacted by a client for vibration analysis and diagnostics on an air screw compressor after they had concerns about a previous report from another supplier.
The initial diagnosis concluded that the screw element was worn and recommended a full overhaul an expensive and time-consuming task. However, once the machine was opened, no wear or damage was found on the screw.!!
That’s when they reached out to us for a second opinion. After performing a detailed vibration analysis, we uncovered the real issue:

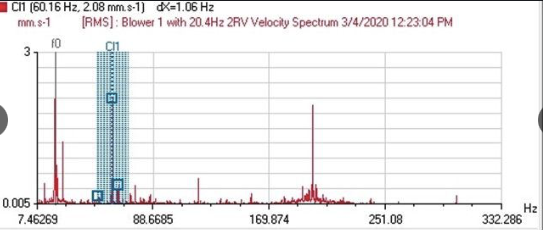

The spectrum clearly showed dominant 2X screw mesh frequency with rich sidebands—a classic sign of screw misalignment as shown in Spectrum .

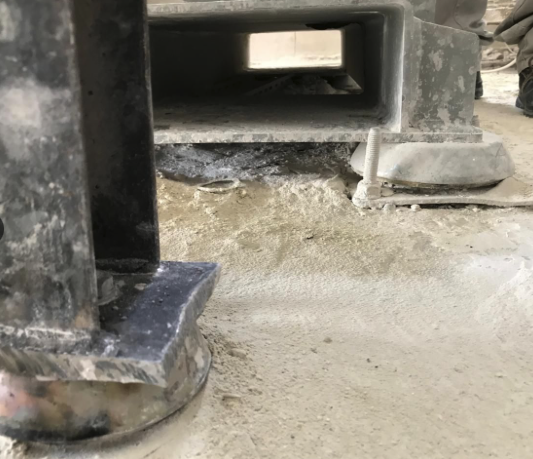

this misalignment was not due to screw wear, but rather foundation flexibility—the machine's structural base lacked the necessary stiffness, leading to misalignment under load and excessive vibration
Root Cause:
A flexible machine foundation causing screw misalignment
Corrective Action:
Structural reinforcement, not a screw replacement!
This case is a strong reminder that accurate diagnostics save time, cost, and unnecessary downtime. A wrong interpretation of vibration data can easily lead to incorrect conclusions—and costly consequences.
Always verify.
