Bearing Inner Race Failure Case
Vibration analysis identified high-level excitation of the asynchronous frequency of the internal bearing raceway (BPFI) at 13.5Hz, highlighting the importance of predictive maintenance in asset management.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

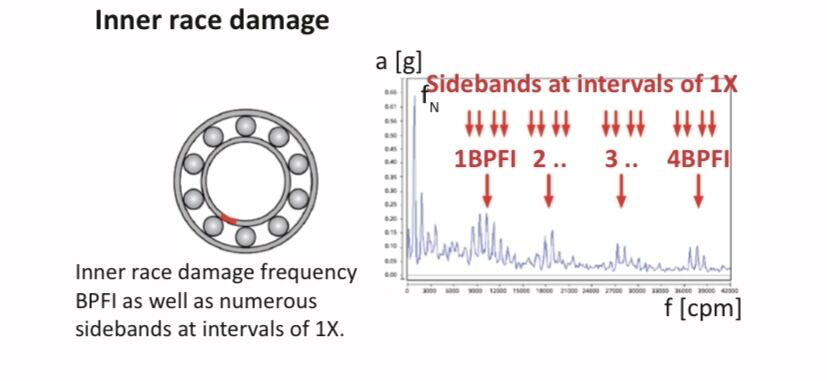

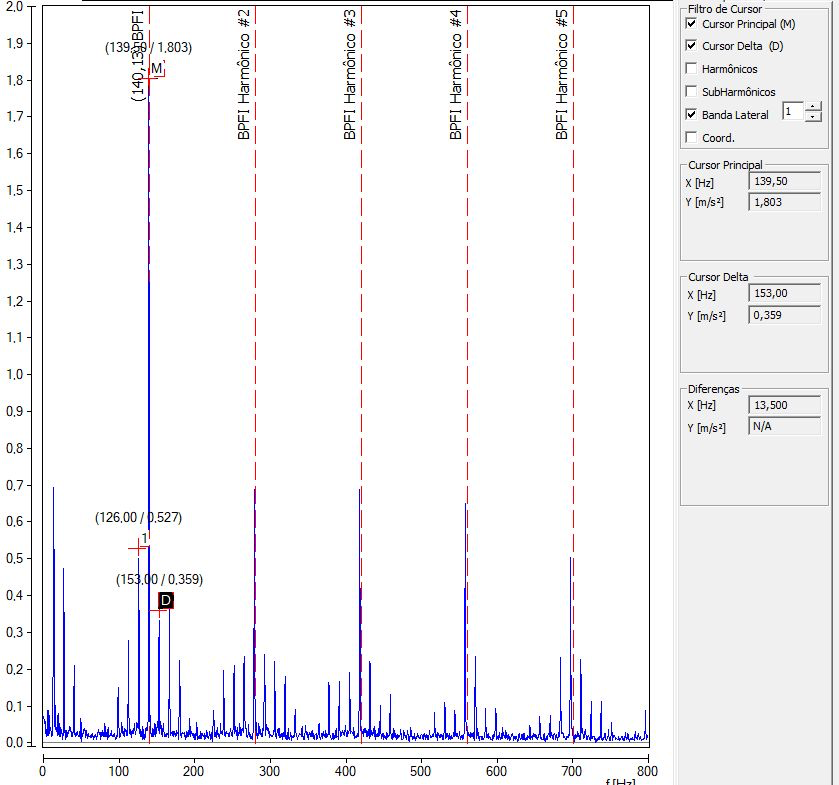

Better known as the "workbook chart", it is amazing when we experience the theory being lived in practice. In this case, the excitation of the asynchronous frequency of the internal bearing raceway (BPFI) was identified at a high level of vibrational amplitude with harmonics and sidebands equal to the frequency of 1XRPM (13.5Hz).
Predictive maintenance through vibration analysis demonstrates its paramount importance in asset maintenance management, in order to predict failures in the elements of industrial machinery and equipment.
