VFD Electrical Flucttuations Related Bearing Failure
CMS vibration measurement detected a critical problem on the 800 kW VFD electric motor, caused by electrical fluctuations.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

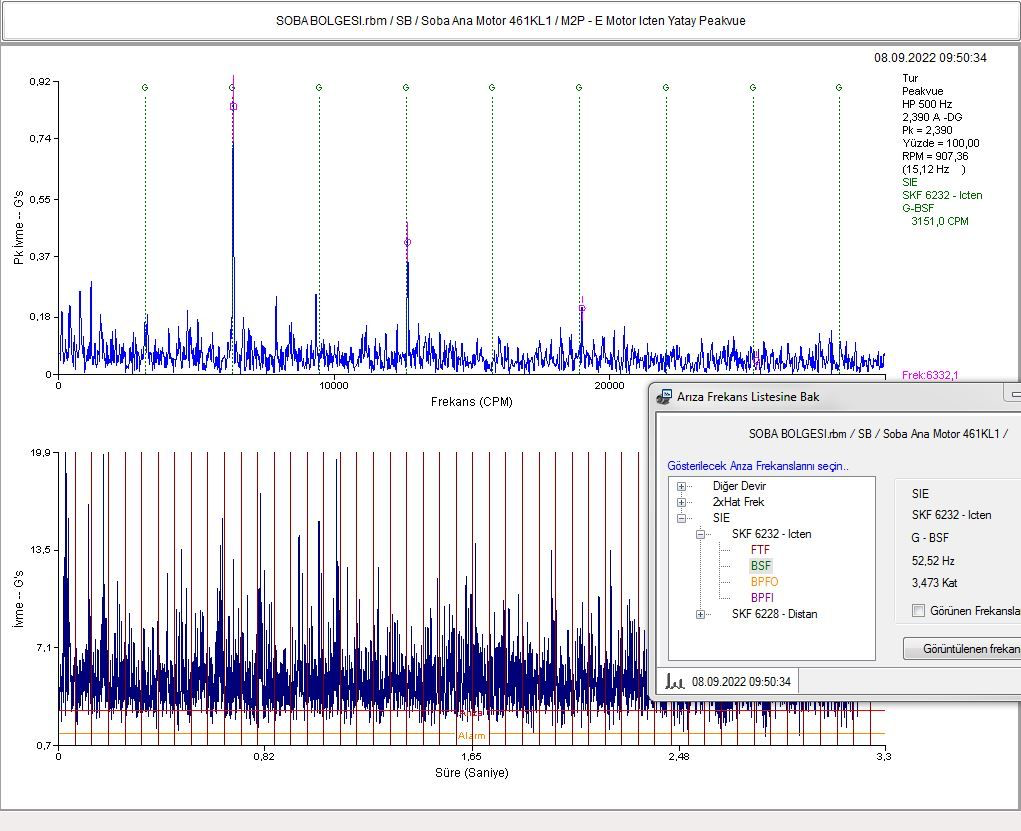

By the CMS vibration measuring, we detected critical problem on 800 kW VFD electric motor.
BSF- Presence of ball spin frequency with harmonics and cage rate sidebands as rolling element contacts inner race and outer race and travels at cage rate
BPFO- Presence of outer race frequency with harmonics

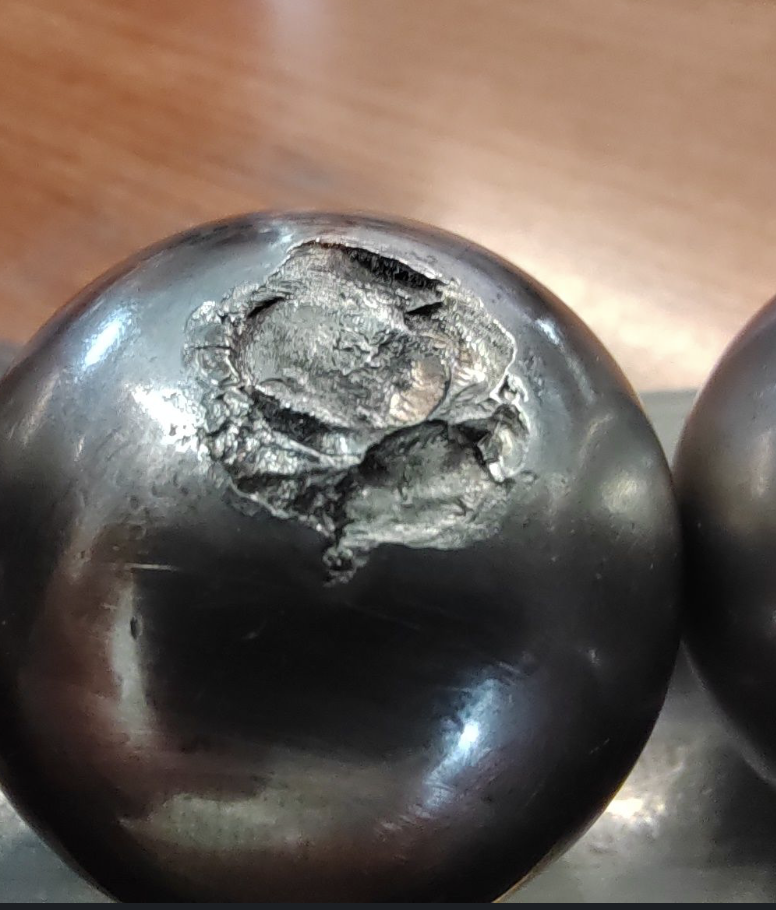

This fault caused by discharge of voltage generated in the rotor as a result of electrical fluctuations in VFD
