Haystack Effect
Sometimes, in frequency spectrum of a rotary equipment, a little hill or stack can be seen in 600 -1600 Hz. This is called haystack effect, which the stack is noisy (full of little peaks) or interconnected and generally is because of bad lubrication, either improper/corrupted lubricant or mal-lubrication of bearing.

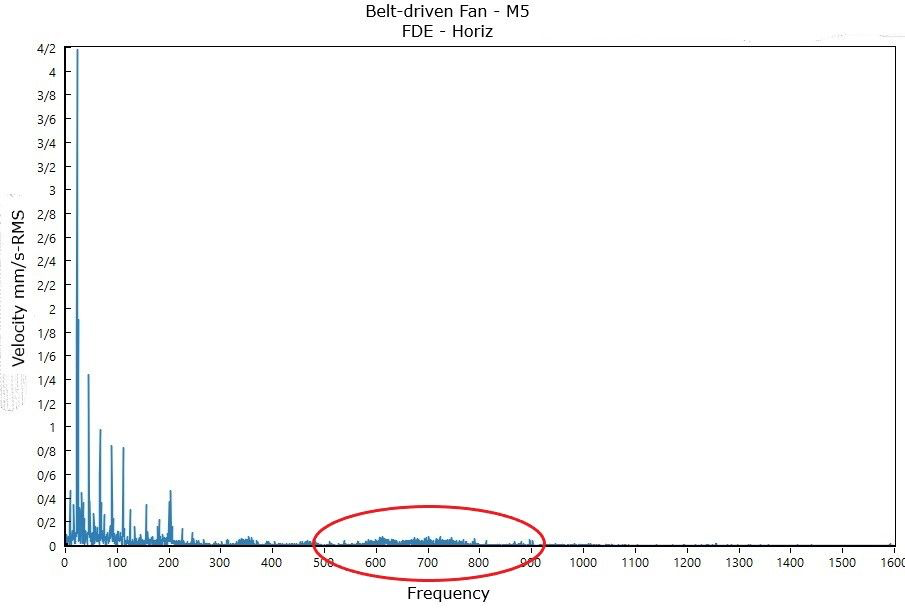

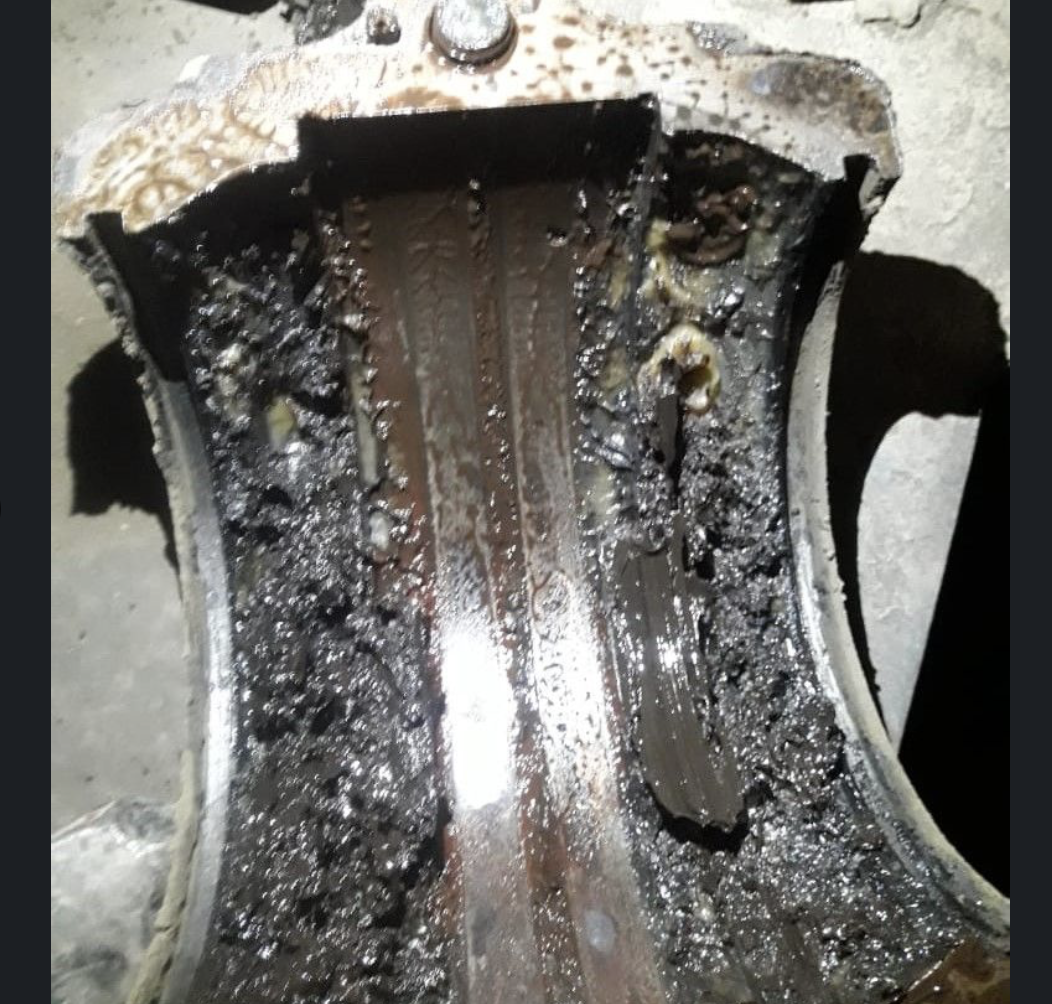

Following pictures show corrupted lubricant in a bearing and its frequency spectrum of horizontal direction.
Attention:
By developing corruption, haystack goes to left side of spectrum and gets wider.
