Bearing Catastrophic Damage Case
Bearing Catastrophic Damage Case
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Maintenance Coordinator finding for condition Andrés Felipe Henao Ramirez, good job!!

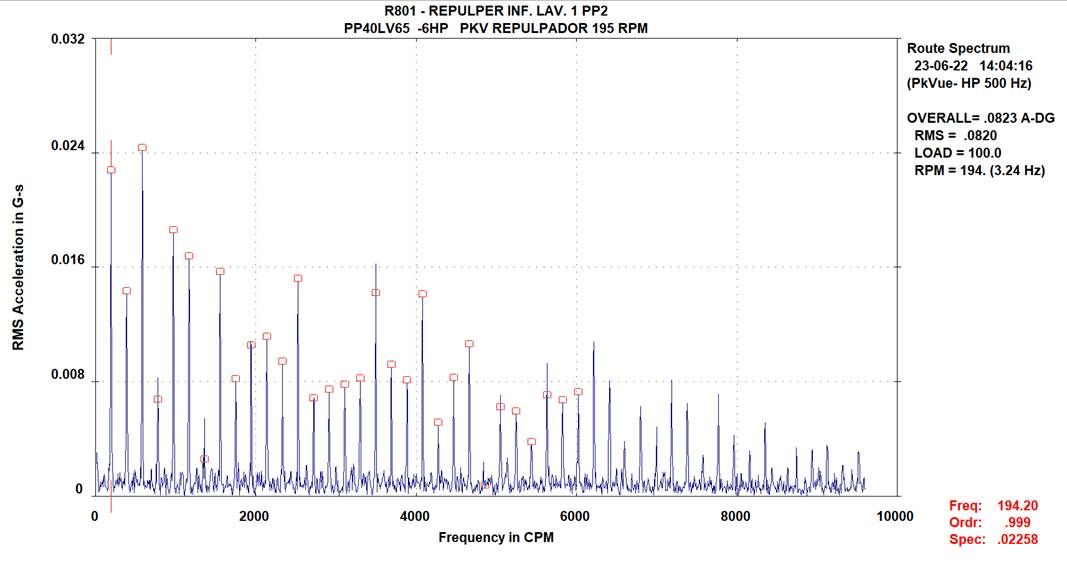

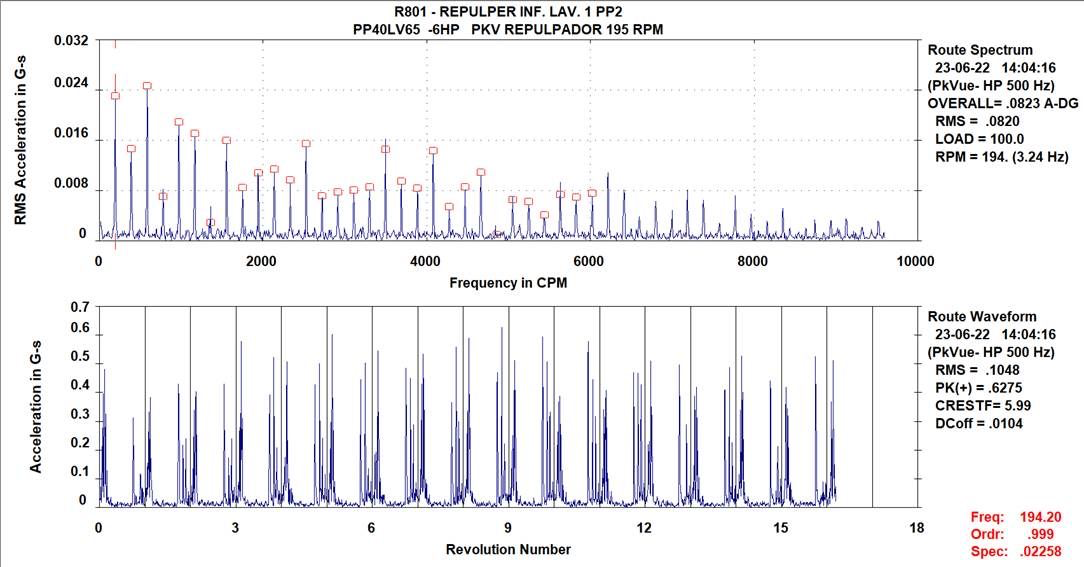

Multiple harmonics of rotation velocity are identified in the peakVue spectrum, in the measurement point configuration you have a 500 HZ HP filter, why are the multiples of the rotation velocity so clear? Can this behavior then be related to the identified failure?

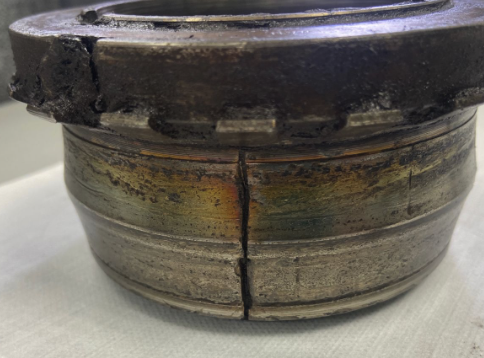

The bearing is intervened by finding the internal track with a crack, catastrophic damage to the canatislla and rolling elements.
