Induction Motor Mechanical Looseness
High vibrations in the radial directions on the RH side of a 2000 KW Induction Motor at 990 RPM were observed. After correcting mechanical looseness, the vibration level decreased to 1.4mm/s.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
2000 KW Induction Motor
990 RPM
As far as overall vibration is concerned, we noted high vibrations in the radial directions on the RH side.

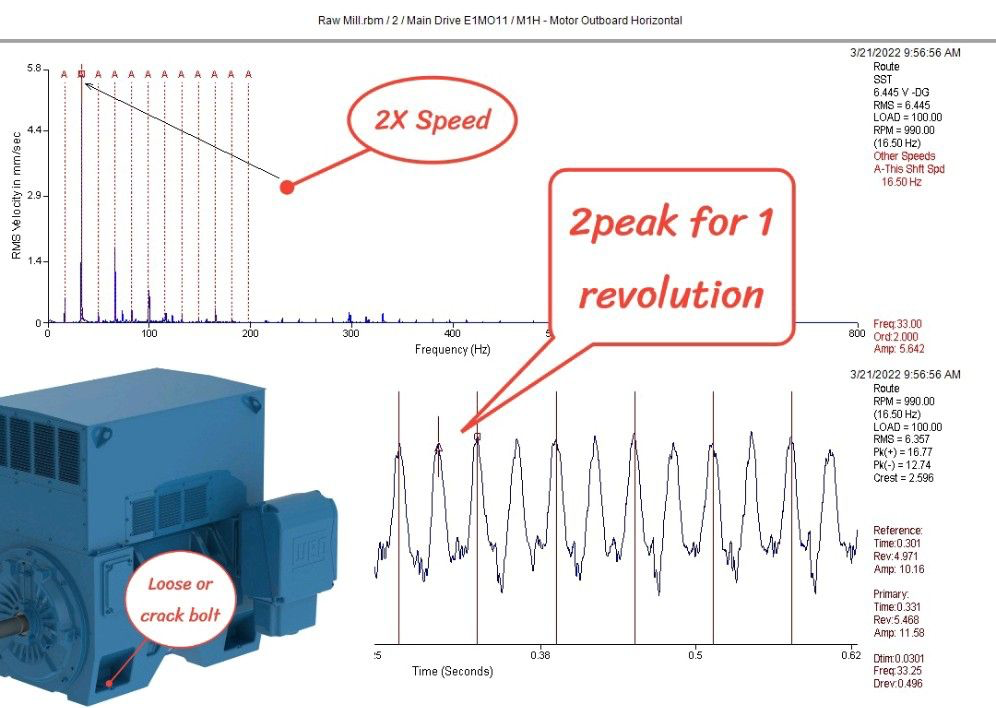

1- 2x speed higher than 1x
2-harmonic with synchronous speed for 6x
3- small peak with 2LF
4- 2 peak in single revolution with TWF
mechanical looseness symtom
weak in structural , bolt lose ,crack foundation
They noticed that one of the bolt in rare feet is broken after correcting these tasks, the vibration level decreases to 1.4mm/s.
