Misalignment Related GMF and Sidebands at Gear-Pinion
Harmonic GMF, sidebands, and a small peak at 1x speed indicate misalignment between the pinion and girth gear or journal bearing clearance.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

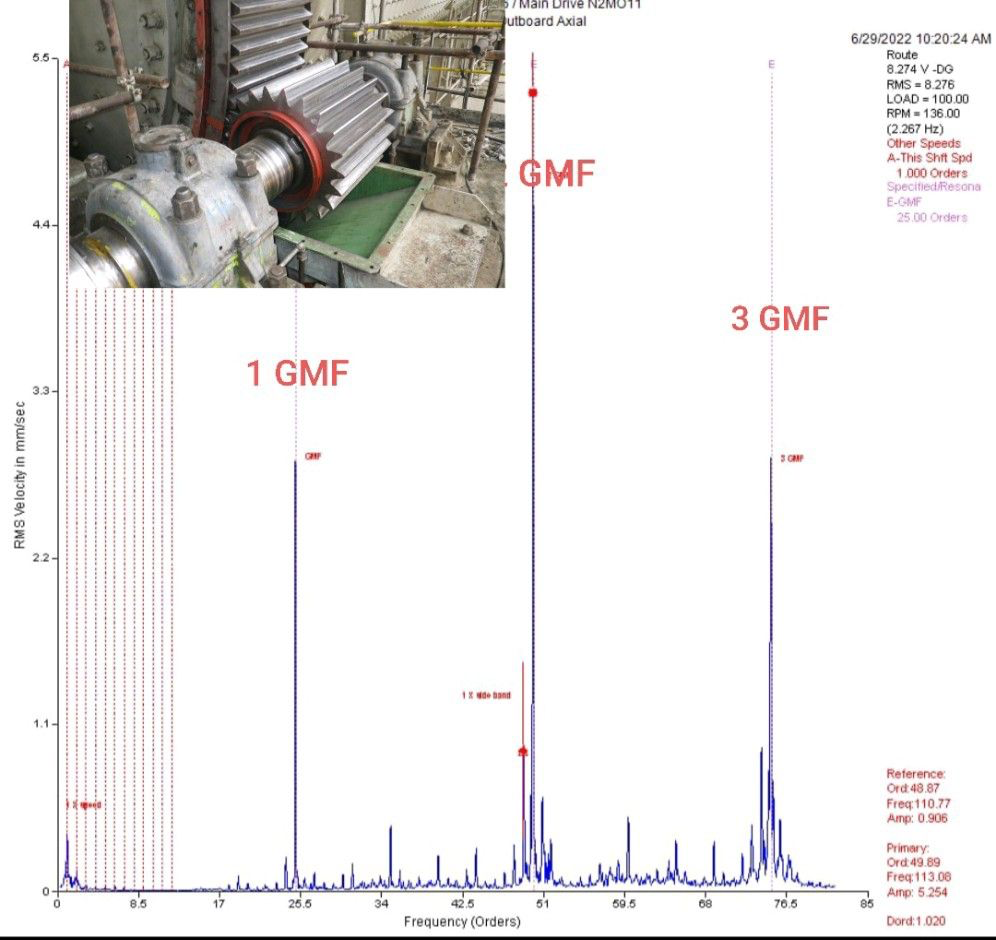

Pinion drive N= 25 spur type
shaft speed = 2.26 Hz
GMF = 56.5 Hz
journal bearing ,
We can Noted
1- harmonic GMF , with 2GMF more than 1 GMF
2- 1x sidebabds around the gmf .
3- 1x speed noted with small peak .
,
The most common cause of these defects is misalignment between the pinion and girth gear, or clearance in journal bearing leads to these misalign,
For sideband its appear when wear in tooth pattern occurs , but when misalignment happens, the contact between the tooth flank incorrect leads to like this defect
