Bearing Wear Case
Vibration spectra show bearing 22314 failure frequencies, with peakVue impacts up to 5.8 G’s.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

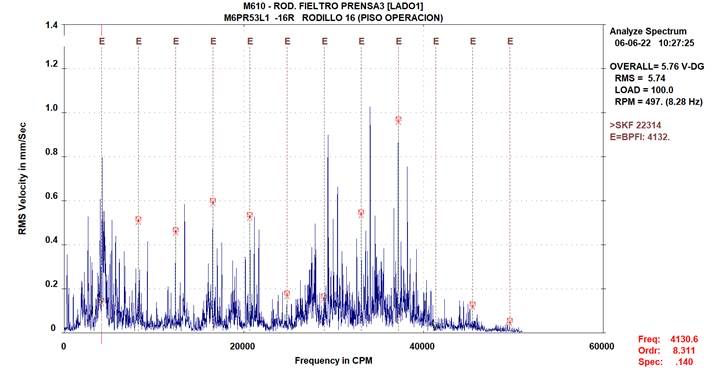

BPFI-BPFO bearing 22314.

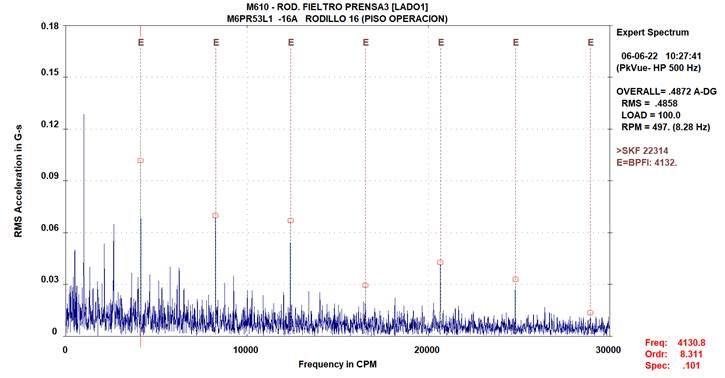

Failure frequencies related to damage to the outer and inner race of the bearing are observed in the vibration spectra.

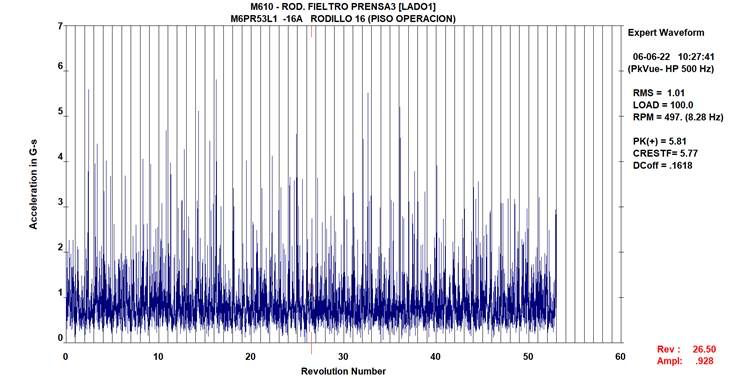

Activity in the peakVue waveform shows impacts of up to 5.8 G's.
