Soft Foot..
Motor 250KW, 6P, Belting and Pulley, High Vibration at vertical NDe Motor, Abnormal Noise.

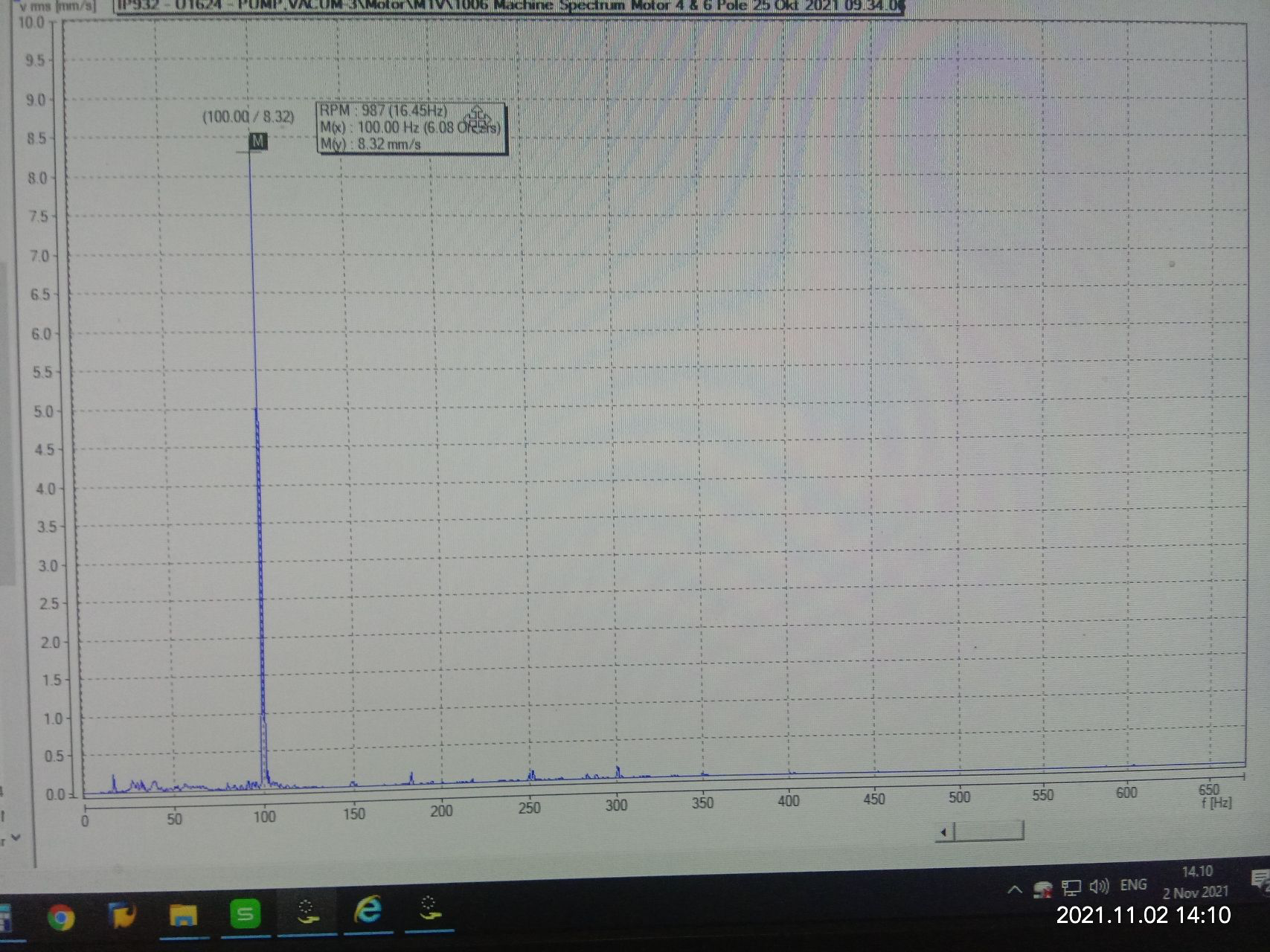

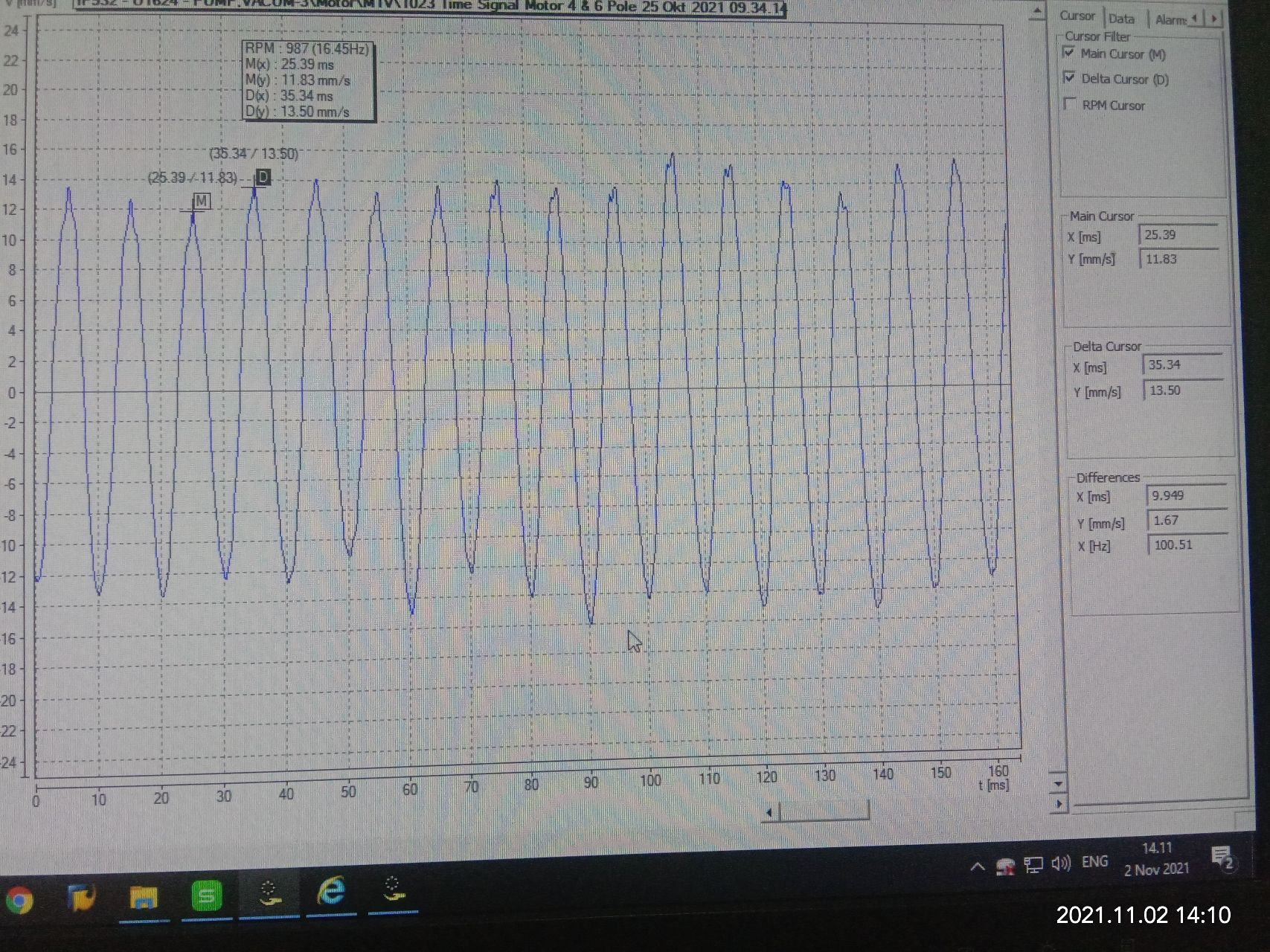

On the Spectrum Appears 2xLF (100Hz), an indication of a Soft Foot problem.

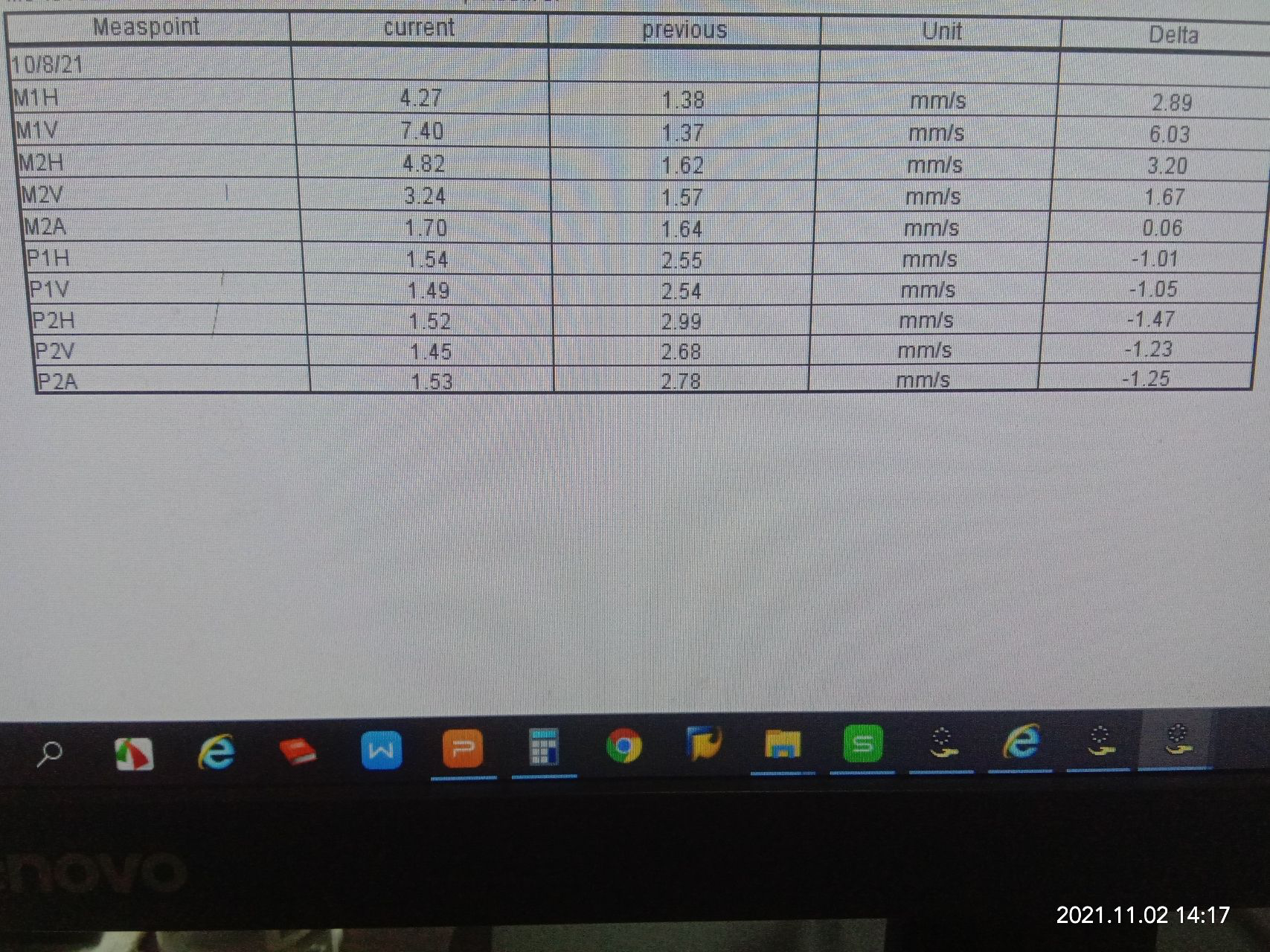

We check the condition of the base frame on the motorcycle, on the right side (Right side-red mark) amplitude 6.9 mm/s and Left side - yellow 1.9 mm/s.
This condition can cause Soft Foot, which will cause eccentricity between the Stator and the Rotor.
Thank you for your input Muhammad Trendo VCAT-II, ARP-A, MA-
