Centrifugal Pump Vane Pass - Blade Erosion

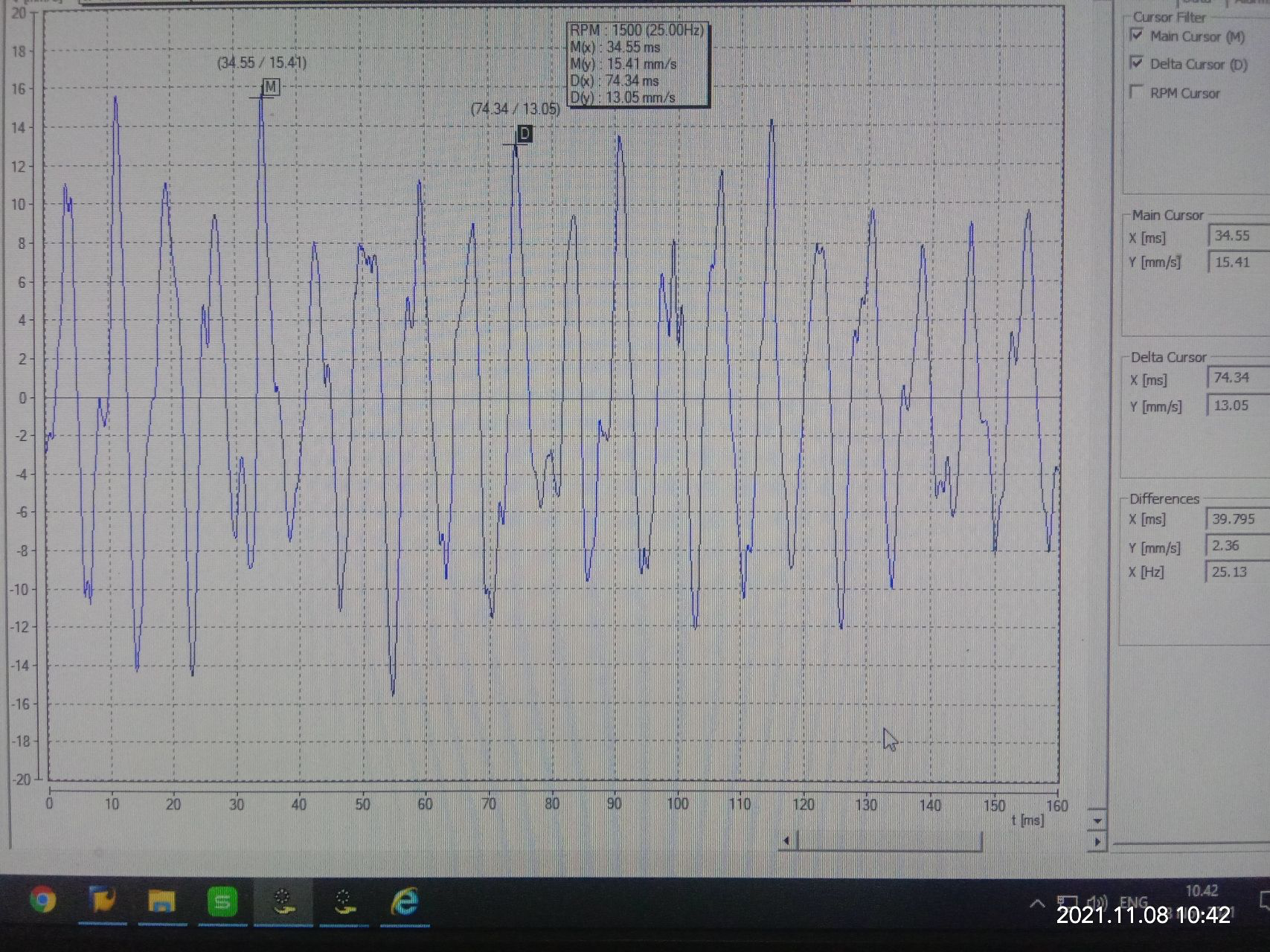

Vane pass phenomenon observed in centrifugal pump spectrum at 125Hz, indicating blade erosion.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Vane/blades Pass..
The Vane pass phenomenon is common in Centrifugal Pumps.
The characteristic of the Vane pass appears on the Spectrum: #Vane /blades x TS

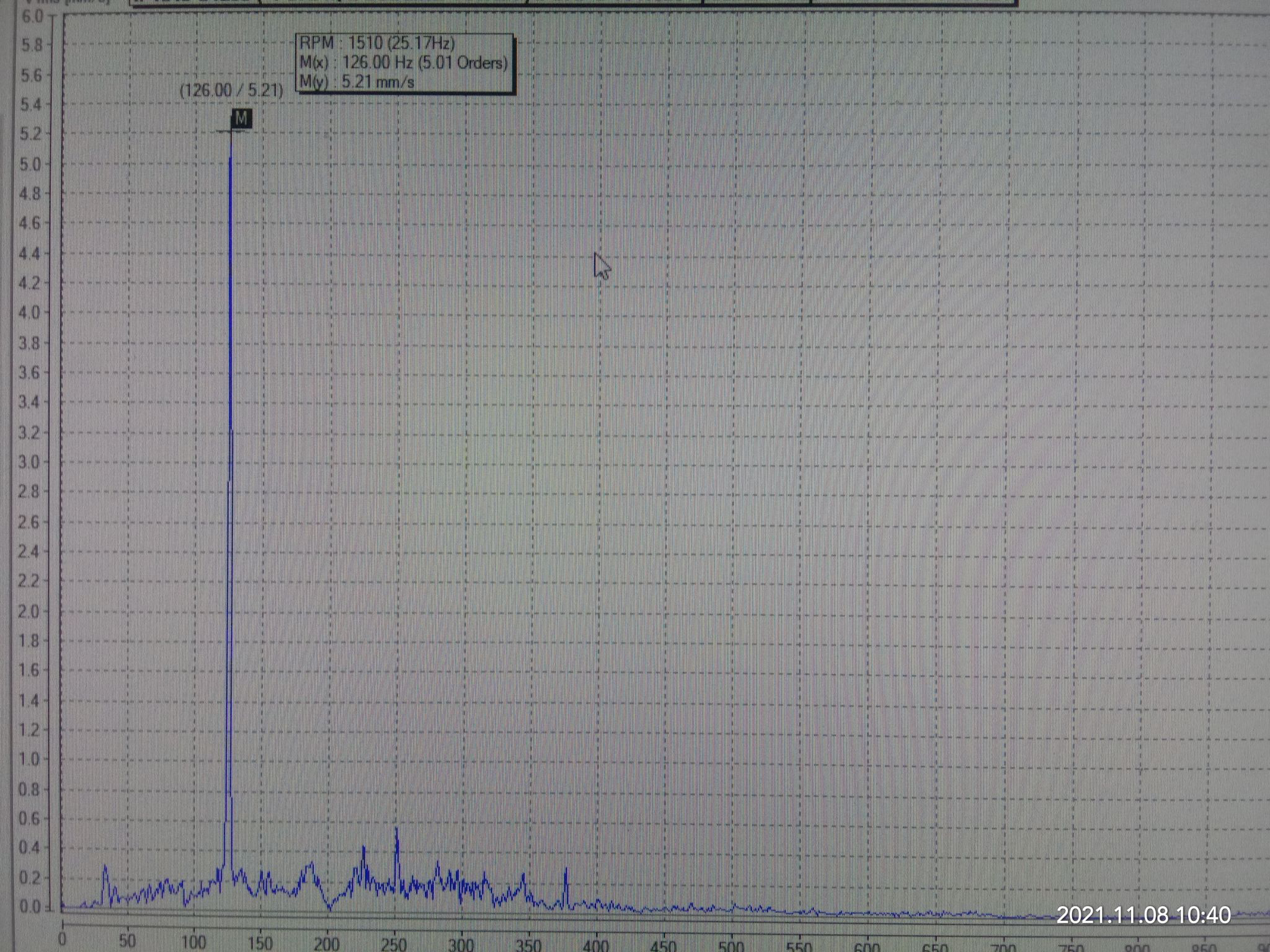

In this case, the Vane Spectrum passes appear at 125Hz (5xTs),
which motor speed 1500Rpm = 25 Hz. Number of blades impeller pump 5pc.
After checking, it was found that the blade impeller pump had eroded.
