Pump Inner Race Fault Detection
Vibration monitoring prevented a potential in-operation failure of a unit at a plant in the North West. Bearing details were inputted after the pump was stripped down for inspection.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

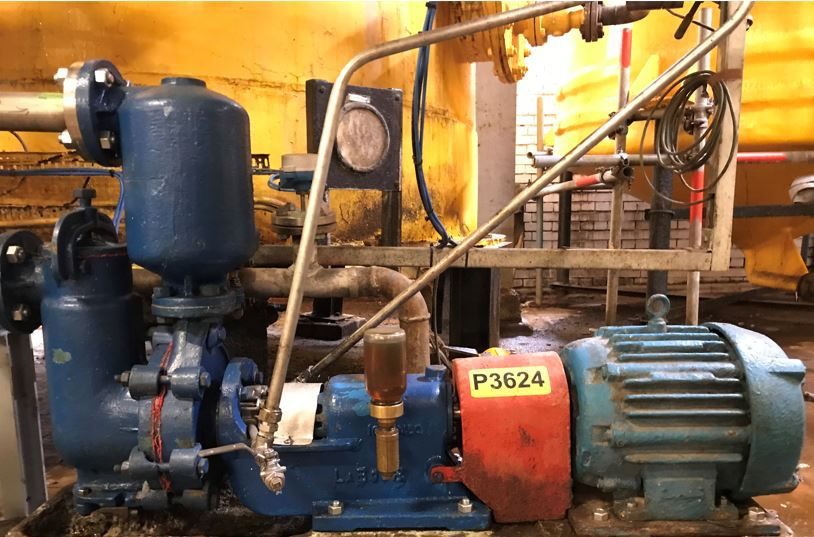

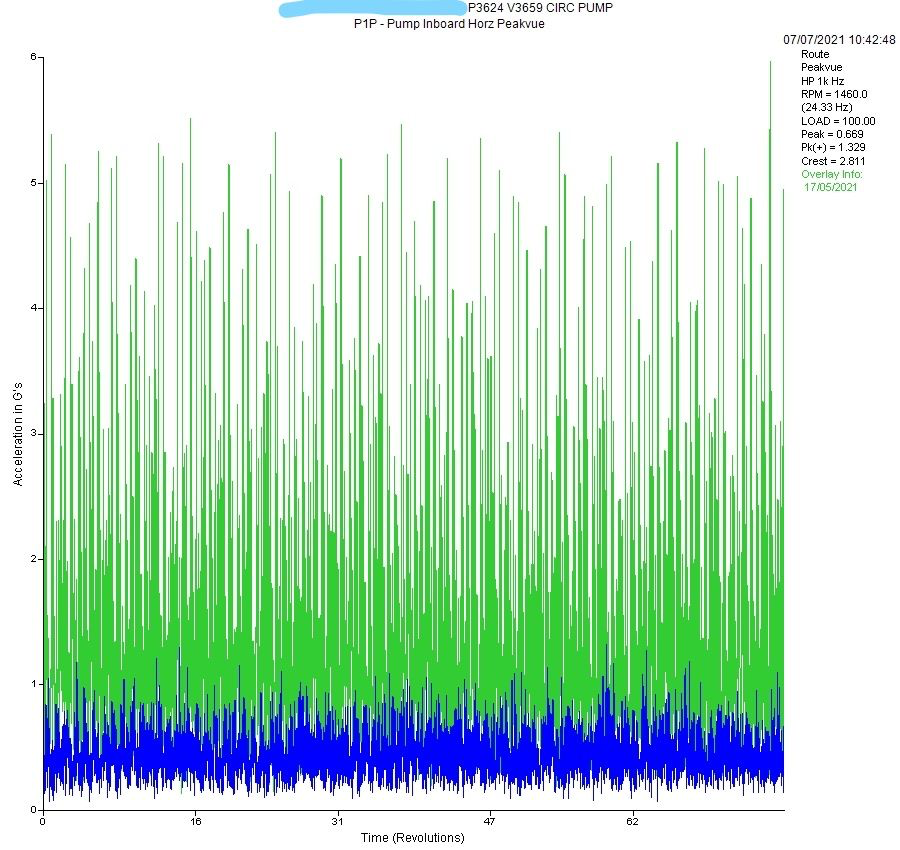

Working closely with the site team at a plant in the North West, we avoided a potential in-operation failure of a unit by means of #vibrationmonitoring . The unit was replaced during the plant's July shutdown, before which we did not have any internal details of the pump.

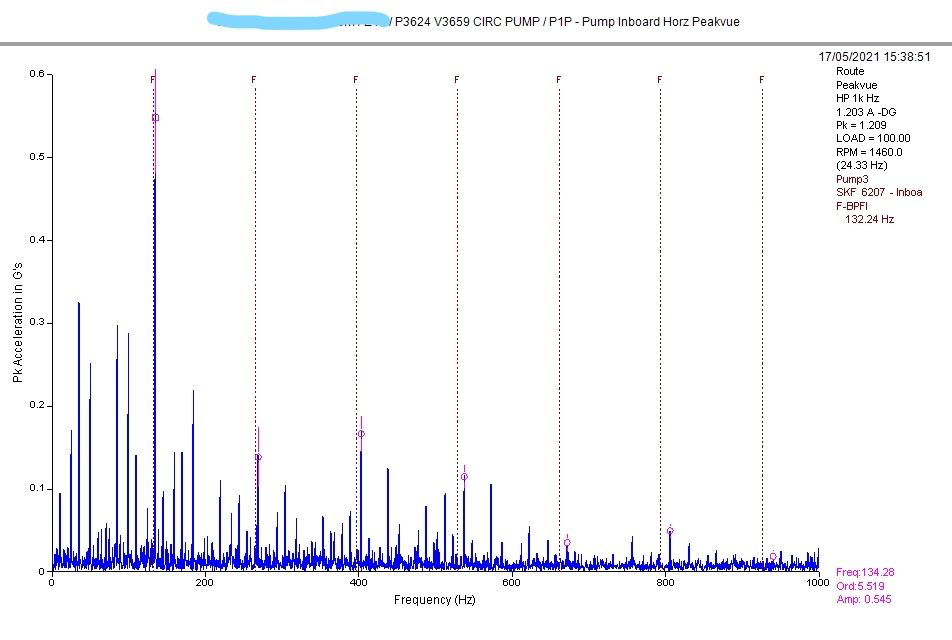

Inputting the #bearing details after the pump was stripped down for inspection, we can see the inner race markers lining up nicely against the fault frequencies.
