Motor-Driven Pump Bearing Failure
Bearings 6309 2Z/C3 and 6209 2Z/C3 in a motor-driven pump showed increased vibration and damage after maintenance, with markings indicating axial overload and circular markings on rolling elements.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

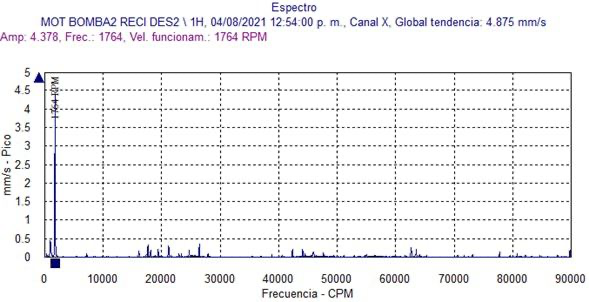

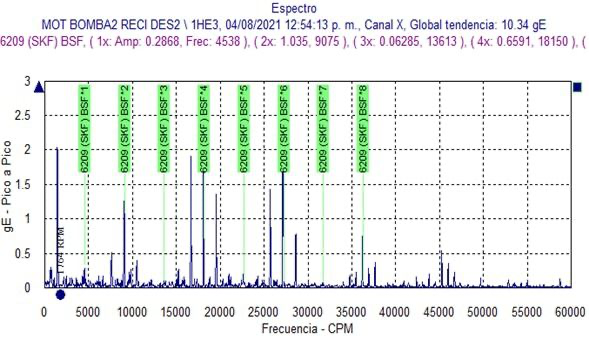

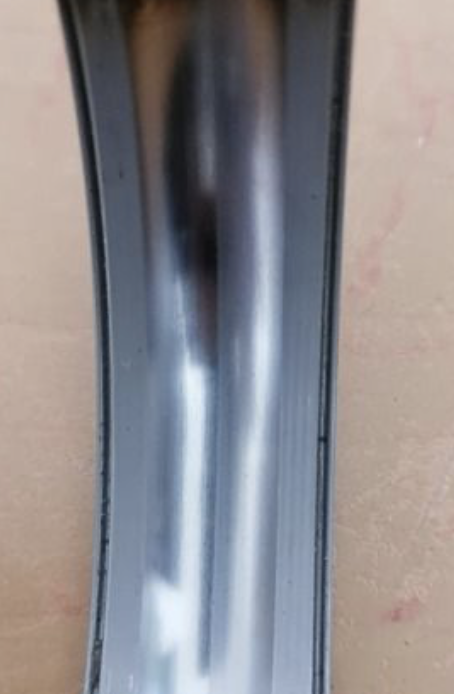

It is interesting to see how the following bearings 6309 2Z/C3 and 6209 2Z/C3 from a motor driving a pump, presented a critical increase in vibration in acceleration of the envelope filter after maintenance. Frequencies of damage with sidebands were observed at the speed of operation. The result is bearings with markings on the raceways that show axial overload and the rolling elements have circular markings in different areas.
Additional Images
Post Information
Category:
Vibration Case Study
Language:
English
Reading Time:
1 min
Tags
Original Authors
Osvaldo Pérez Flores
