Motor Bearing Outer Race Fault
LUBEXPERT demonstration for a customer’s NDE motor bearing 6316 at 2976 rpm showed 100% lubrication failure and a clear 154 Hz indicator for outer race bearing failure.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
LUBEXPERT demonstration for one of my customer
- NDE motor bearing 6316
- 2976 rpm

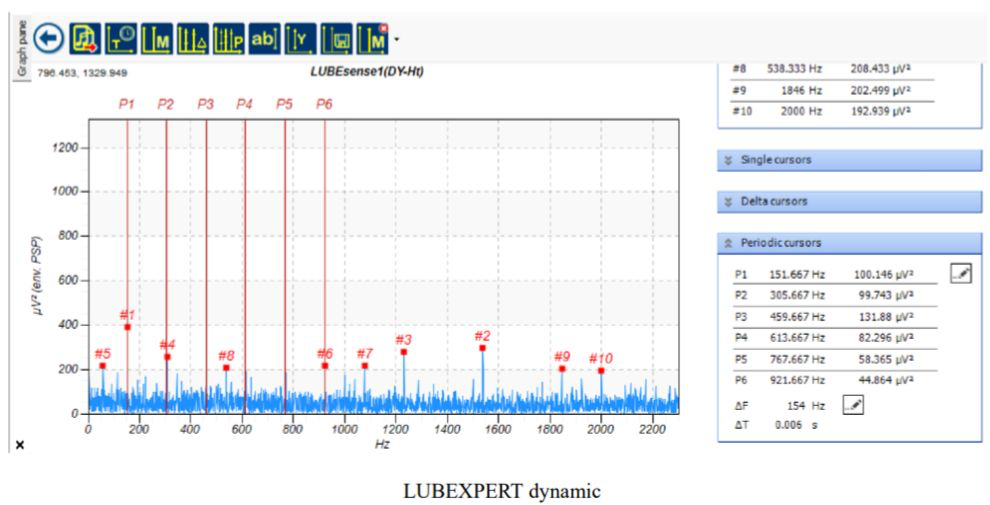

100% lubrication failureI using dynamic LUBEXPERT i found clear 154 Hz

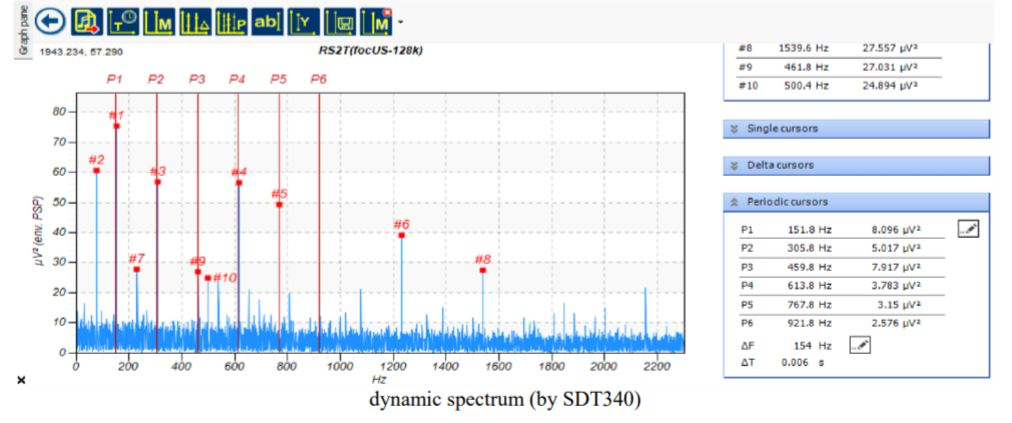

Same is catching by SDT340
Clear indicator for outer race bearing failure at the early stages
