SAG Mill Corona Problem

Circular waveform - Last case of the year 2021

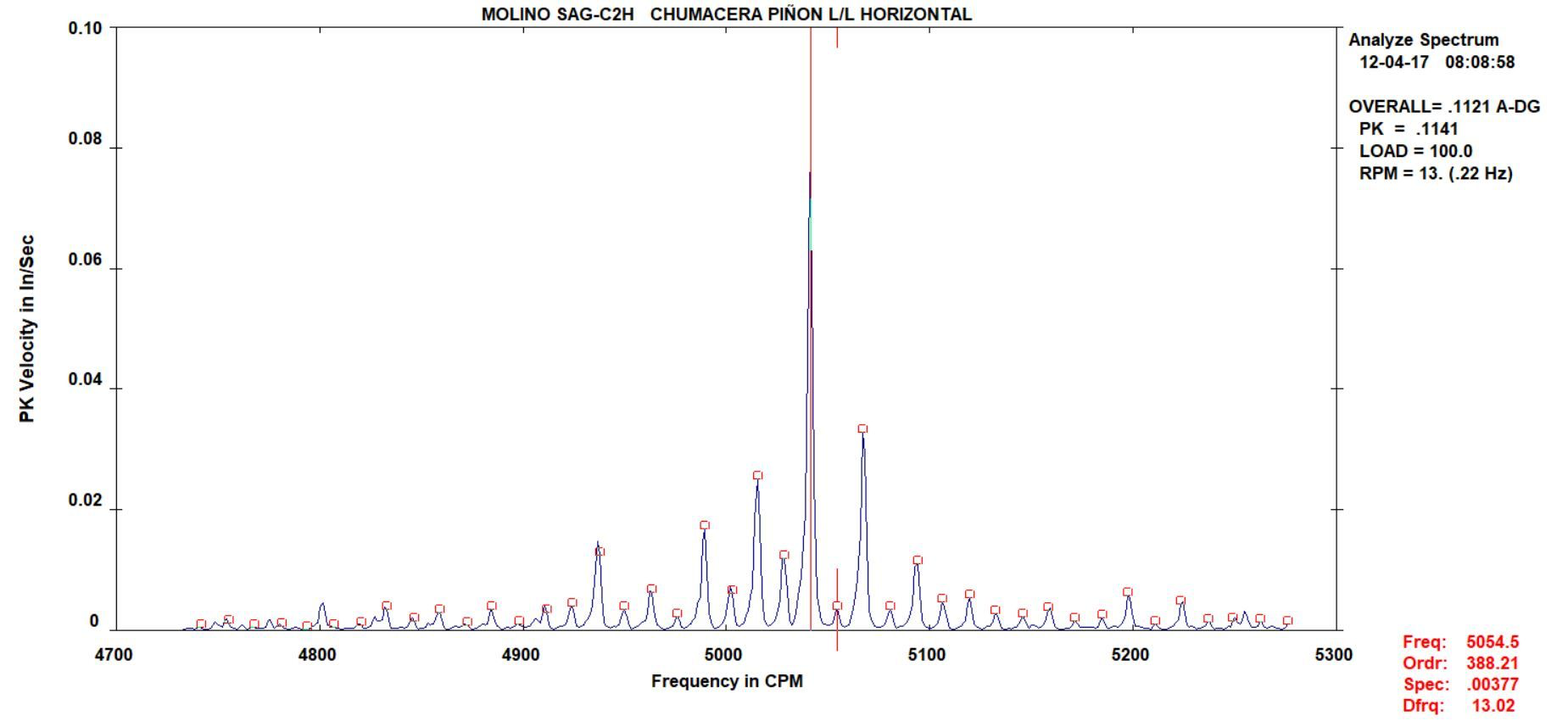

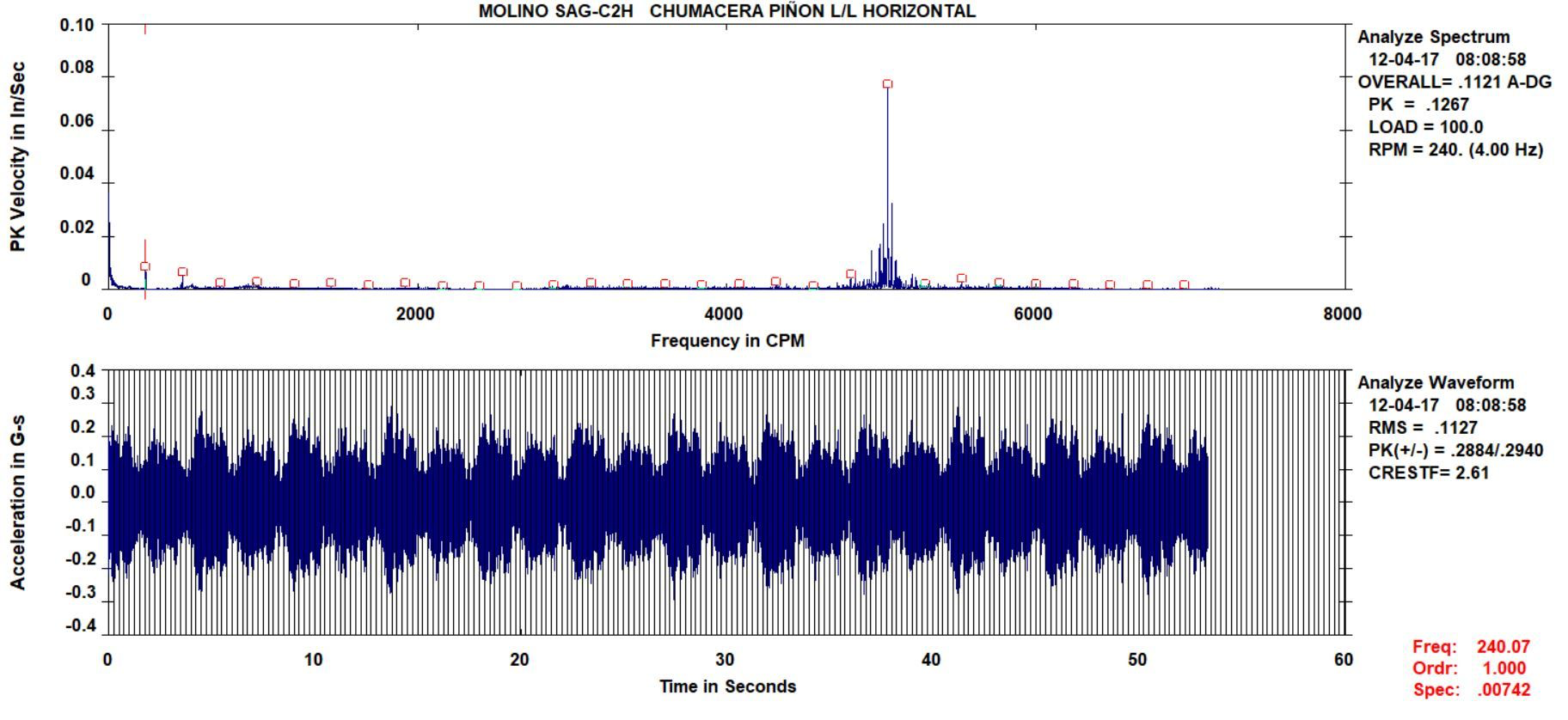

Good day friends and colleagues, I have my last case study of this year 2021. The study corresponds to a SAG mill that is apparently without problems. The vibration amplitudes are not greater than 0.13 ips 0-Pk, however, we can see in the spectrum that the frequency of 5035 cpm (21x of the pinion) has sidebands and the amplitude modulation is clearly observed in the waveform. Collecting an additional reading with higher spectral resolution, it is determined that the separation of the sidebands is equal to the frequency of rotation of the drum which is 13.02 cpm.... What will the pinion and the crown have?

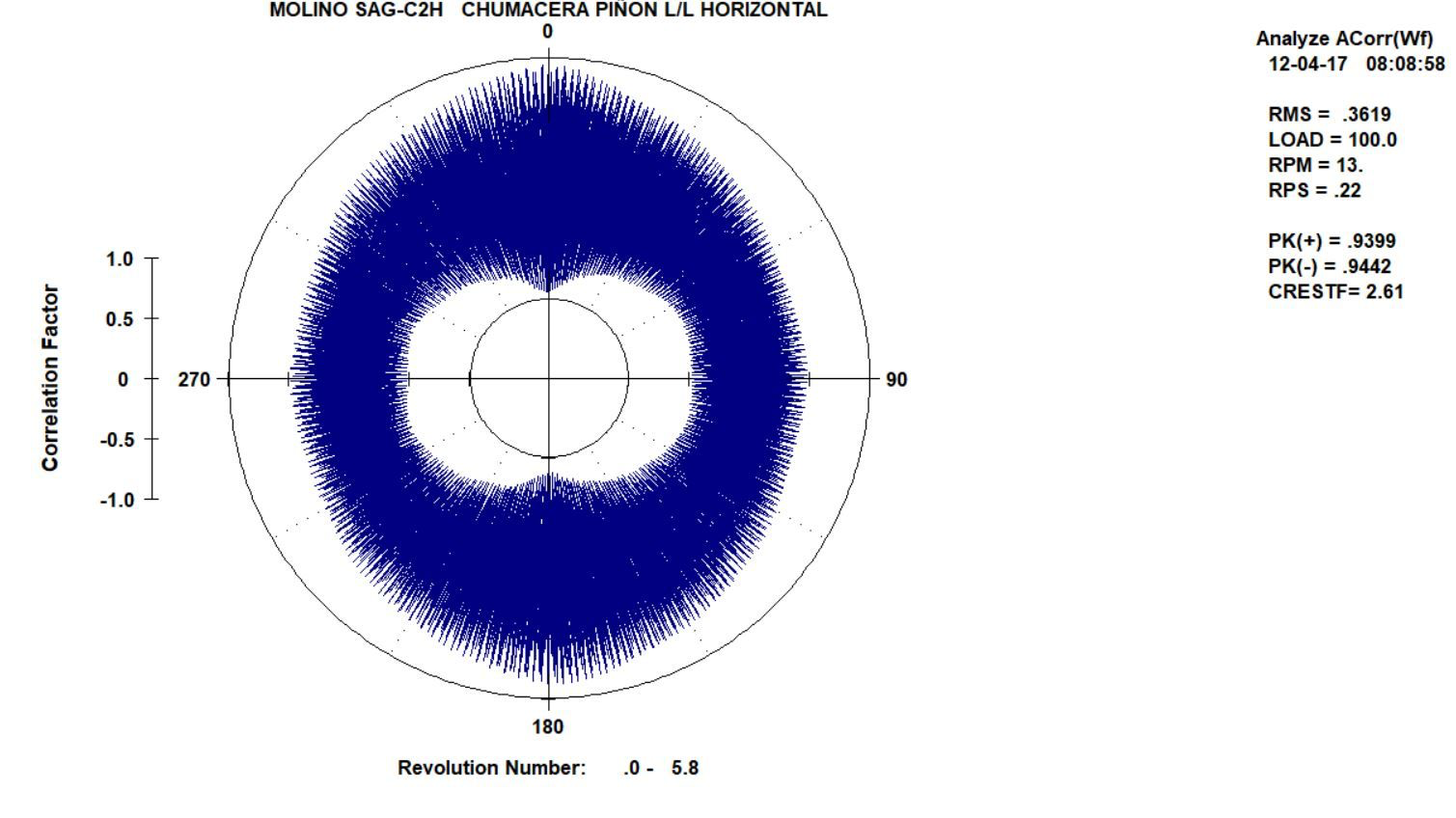

The answer is found in the lateral bands and it can be indicated that the corona presents the anomaly and we can rely on the circular waveform. The images show the circular waveform tuned to the rotational frequency of the pinion and then to the rotational frequency of the drum. I leave it to you what you would report because the circular waveform says EVERYTHING.

We canMPC México determine the problem of your equipment without any problem, because we have the CSI 2140 analyzer + certified analysts.

And how is that modulation heard?, leave you the link of the audio that is generated with the AMS software from the waveform of the vibration readings. Yes... with AMS software we can do that and more.
