Bearing Outer Race Defect with 1X Harmonics Case

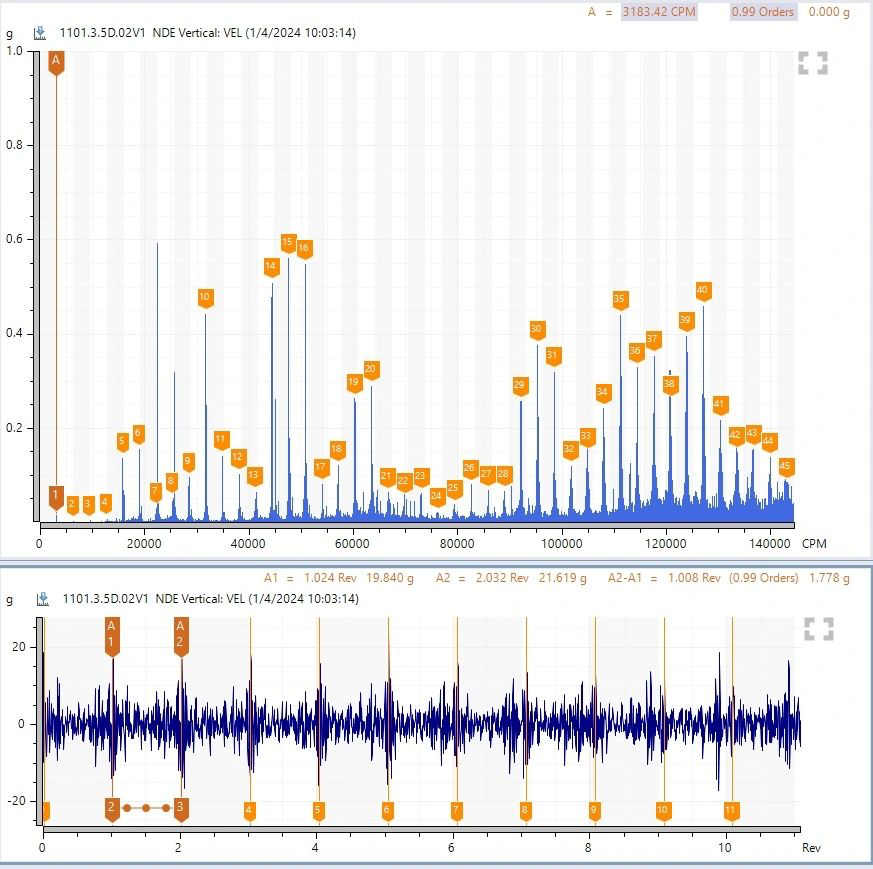

An 7313 bearing defect is indicated by a spectrum showing 1x harmonics, with the outer ring visible
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
An 7313 bearing defect is indicated by a spectrum showing 1x harmonics, with the outer ring visible
Frederic Robinet: One can clearly see the 7.something and harmonic in there …. Pretty sure that the BPFO you looking for ? Just over 7 x. It start separating itself from harmonics of RPM with the first harmonics just passed 14 x
