Pump Bearing Pitting on the Inner Ring
Bearing damage at the load end of the pump, with pitting on the inner ring raceway, is evident in the FFT spectrum and time waveform.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
A bearing damage and raceway of the inner ring is pitting case

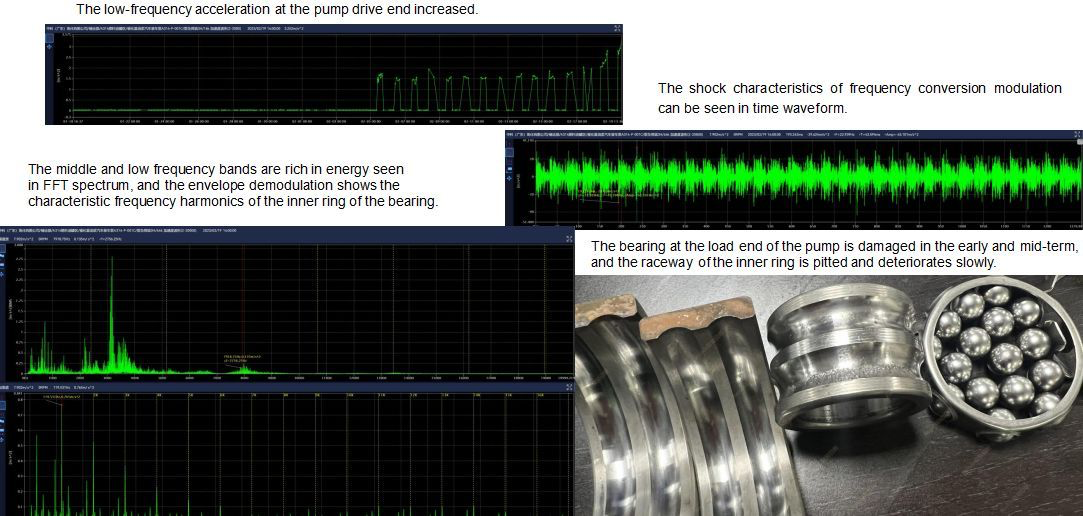

The middle and low frequency bands are rich in energy seen in FFT spectrum, and the envelope demodulation shows the characteristic frequency harmonics of the inner ring of the bearing.
The shock characteristics of frequency conversion modulation can be seen in time waveform.
The bearing at the load end of the pump is damaged in the early and mid-term, and the raceway ofthe inner ring is pitted and deteriorates slowly.
