Exhaust Fan Bearing Fault Diagnosis
Inner race fault diagnosed in exhaust fan 2A, causing 5-15% energy consumption savings. Inspect and replace motor bearings.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Fault Stage:
- Stage 3 - Inner Race Fault Diagnosed
- Energy Consumption Savings: 5-15%
Appplication:
Exhaust Fan 2A
Prescription:
Inspect motor bearings & replace in next opportunity
Findings:

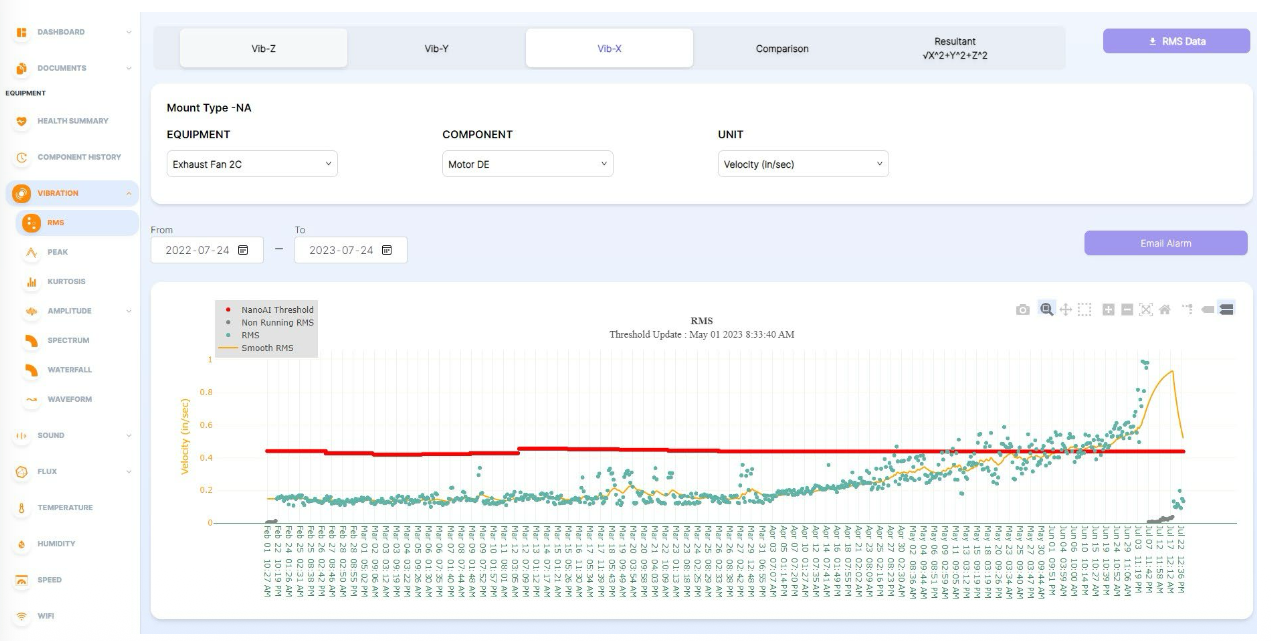

- Overall acceleration RMS step changed

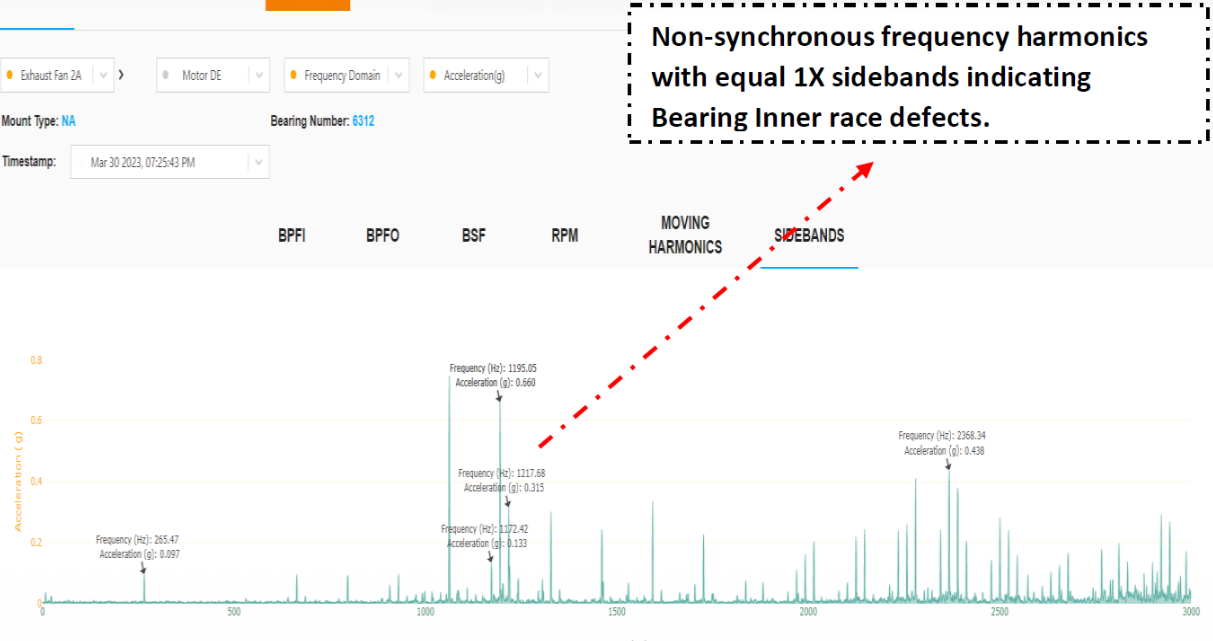

- Time waveform analysis indicates bearing impacts with high acceleration amplitude
Additional Images
Post Information
Category:
Vibration Case Study
Language:
English
Reading Time:
1 min
