Belt Conveyor Coupling Defect

Belt conveyor vibration increased from 6mm/s to 14mm/s, with harmonics at 3x and 6x, indicating potential coupling defects or misalignment.

Like what you see? Sign up to share your own knowledge, like posts, and engage with the community!

belt conveyor
power 22 KW
speed 1500 Rpm (25 Hz)
it used for convying materials.
while vibration data collect we noted increase vibration level to 6 mm/s with small sound and impact ,

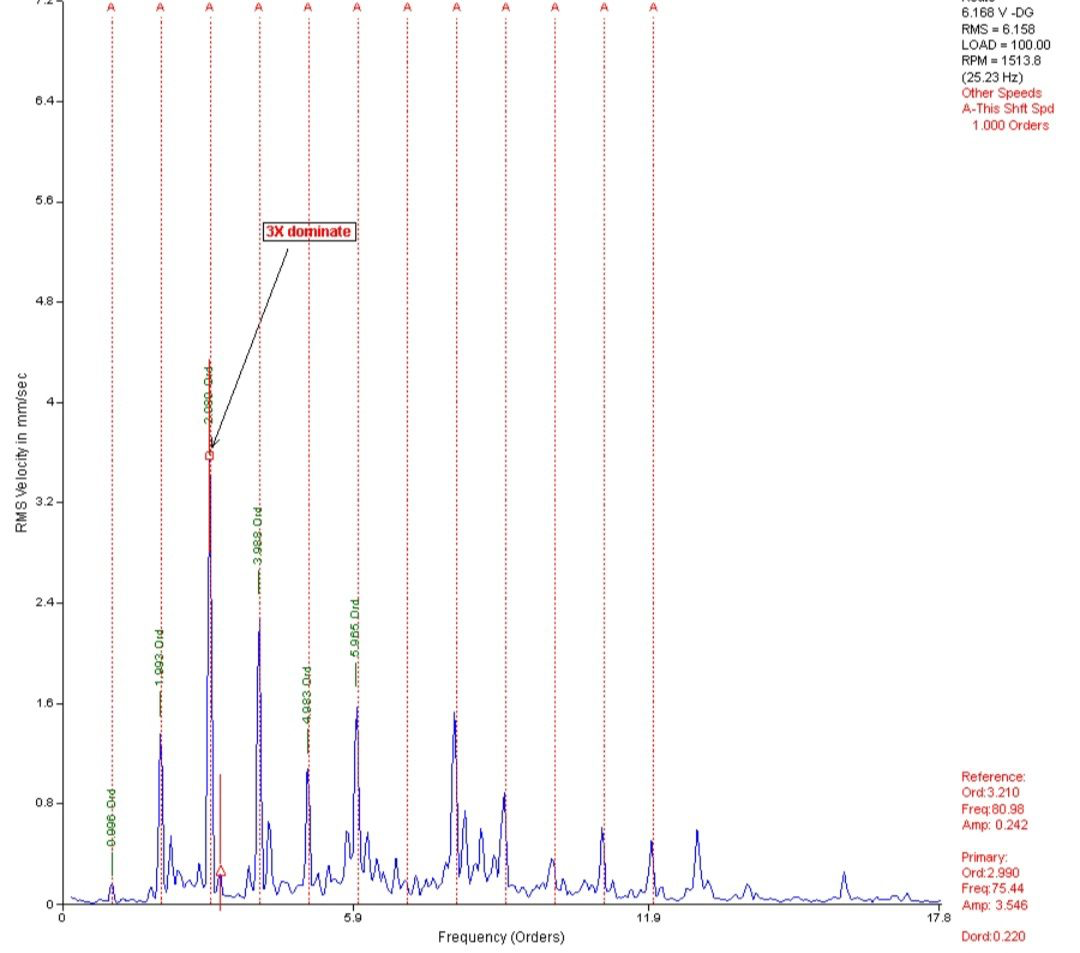

in spectrum we noted some harmonic with 3 x dominate
after few days the vibration reach 14 mm/s .

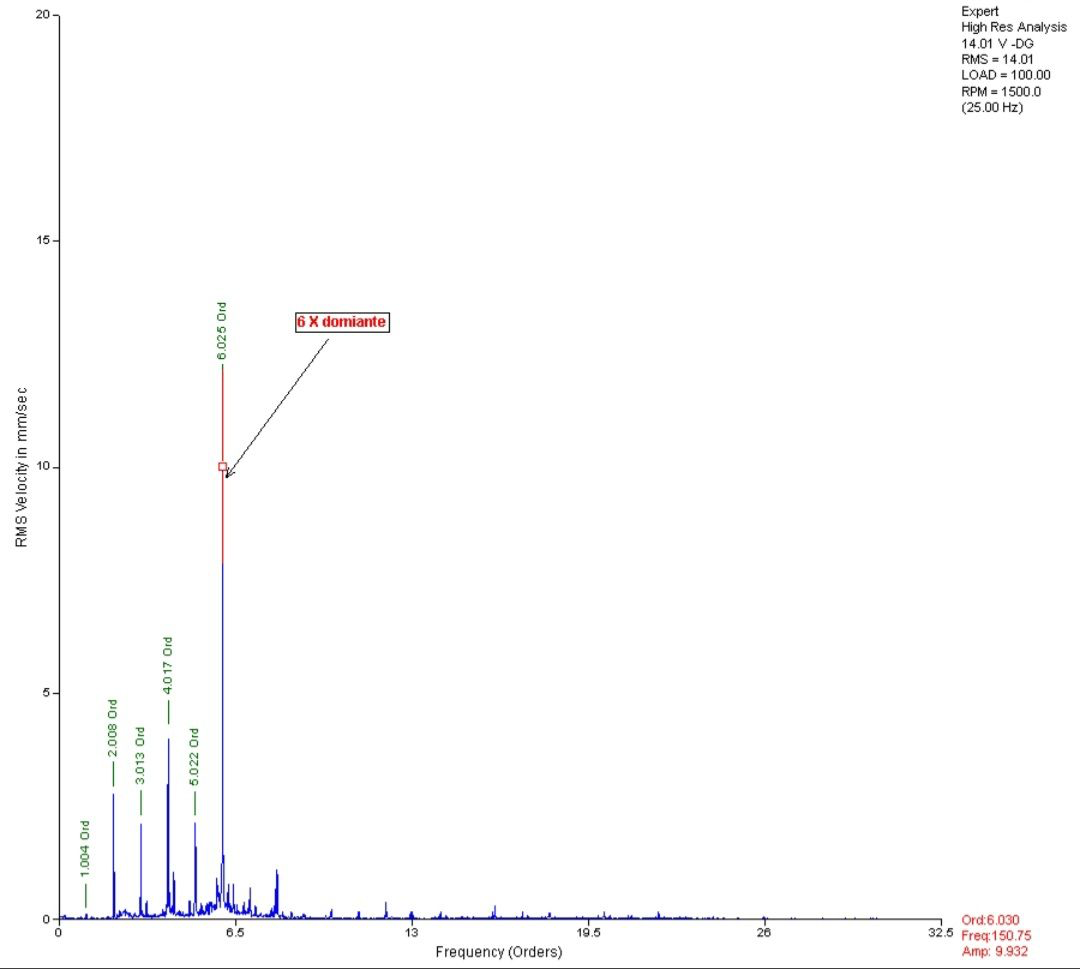

in spectrum we noted harmonic with 6 x dominate .

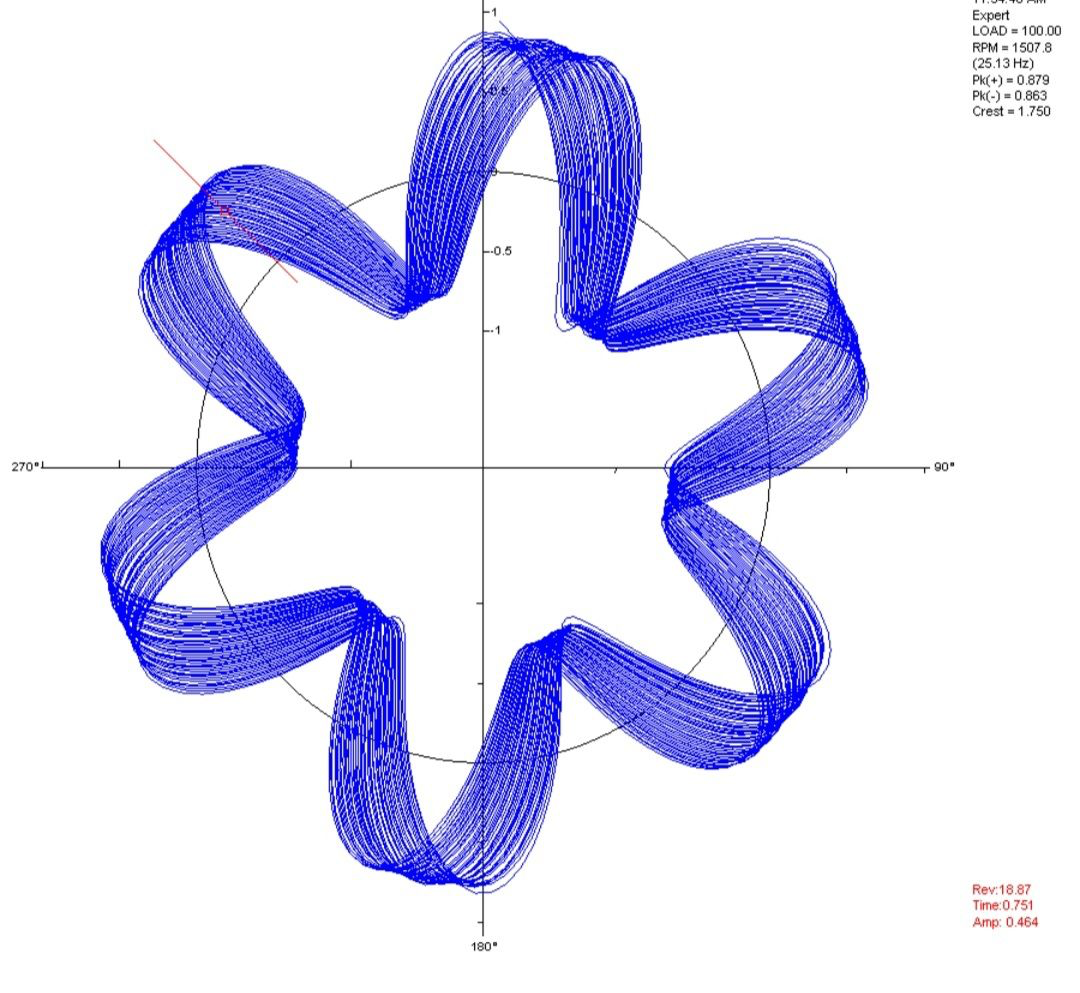

In TWF we noted high 6 impacte each revolution with kind of misalignment and lossness ,
most commonly issue like this is coupling defects according to rubber element or lose or sever misalignment or cracks ,
after machine stop the cracks apear on top of key .
