Induced Fan Mechanical Looseness
Induced fan vibration increased suddenly after balancing, showing multiple harmonics and sidebands, indicating mechanical looseness.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
nduced Fan - overhang type
Power 90 KW
Speed 1485 Rpm (24.75 hz)
Pillow block bearings with tapered sleeve bearings .
purpose of use : dust collection .
Durring 1st level inspection noted suddenly incrase vibration with radial directions after do balancing on it before 3 days .

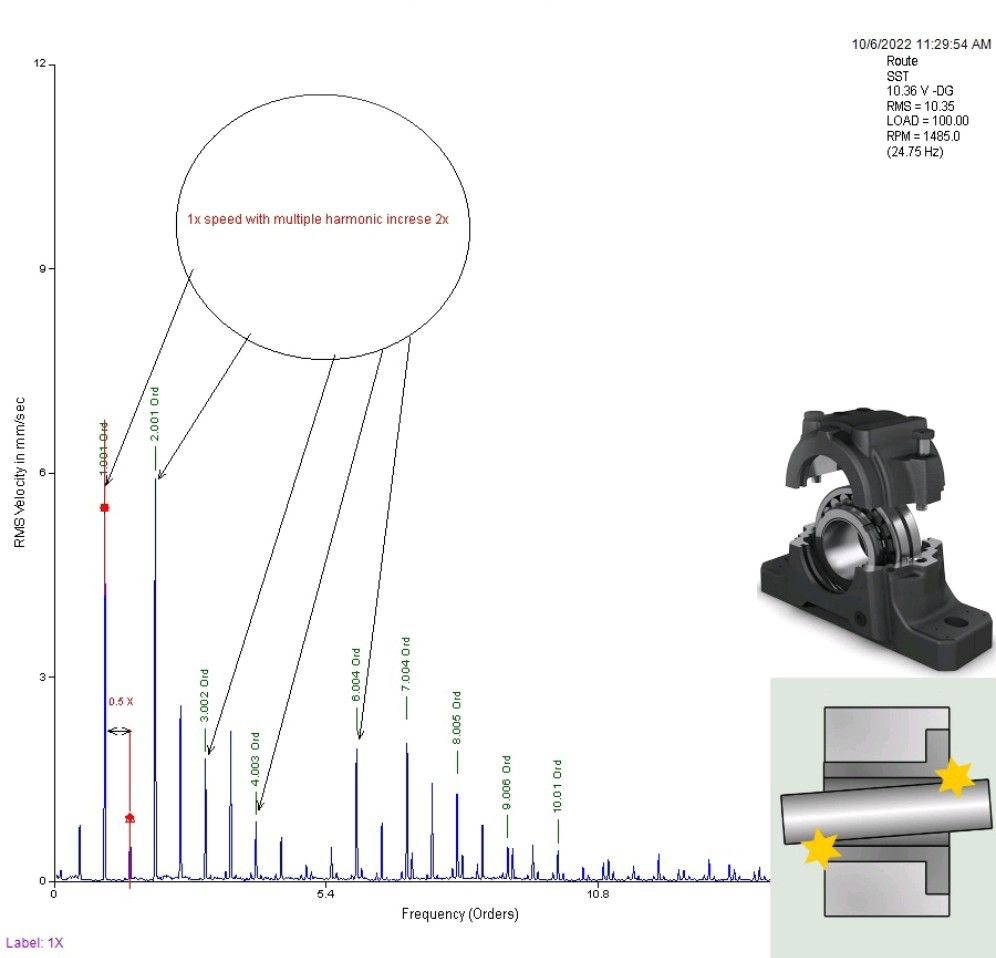

when vibration was taken the spectrum show
1. multiable harmonic of 1x
2. 2x dominated more than 1x
3. 0.5 X sideband around the rotation speed and there harmonic.
the symptoms was mechanical lossness according to lose tighten sleeve bearings
