Gearbox Pinion Defect at Rolling Mill
Pinion defect in the gearbox confirmed by repetitive shocks of the shaft frequency (17.54 Hz) in the Rolling Mill.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Catch Of The Day

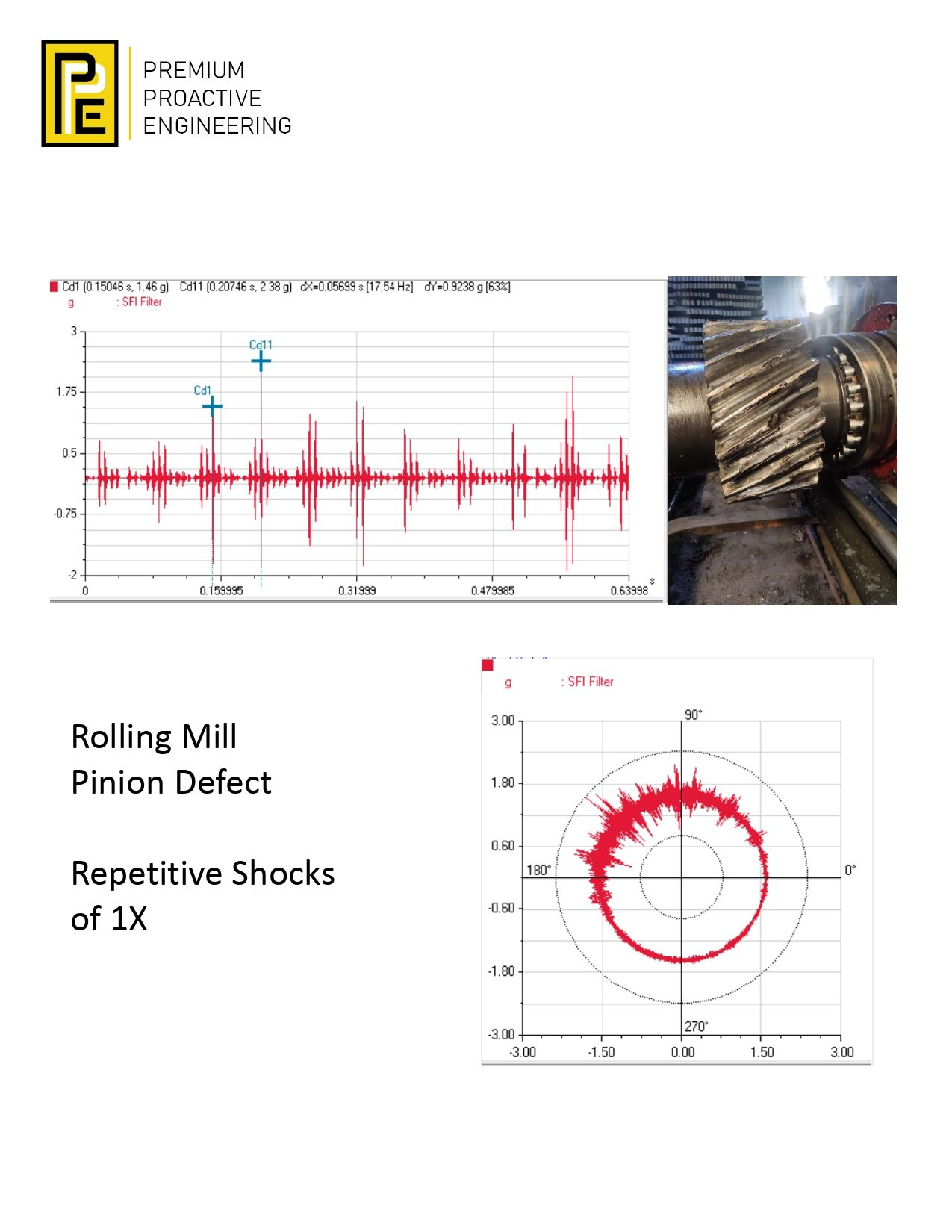

Repetitive shocks of the shaft frequency (17.54 Hz) in Rolling Mill reported as Pinion defect in the gearbox, the defect confirmed as shown in the photo.
The SFI - Shock Finder Filter from Acoem shows vividly the shaft frequency of the shaft in the Time-Waveform.
The Circular Plot was also effective to confirm the damaged area in the pinion.
