Bearing Fault Case Study
A low-speed equipment defect with a Timken bearing reached a severe stage, with visible sidebands and impacting at 68 G’s before repairs.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

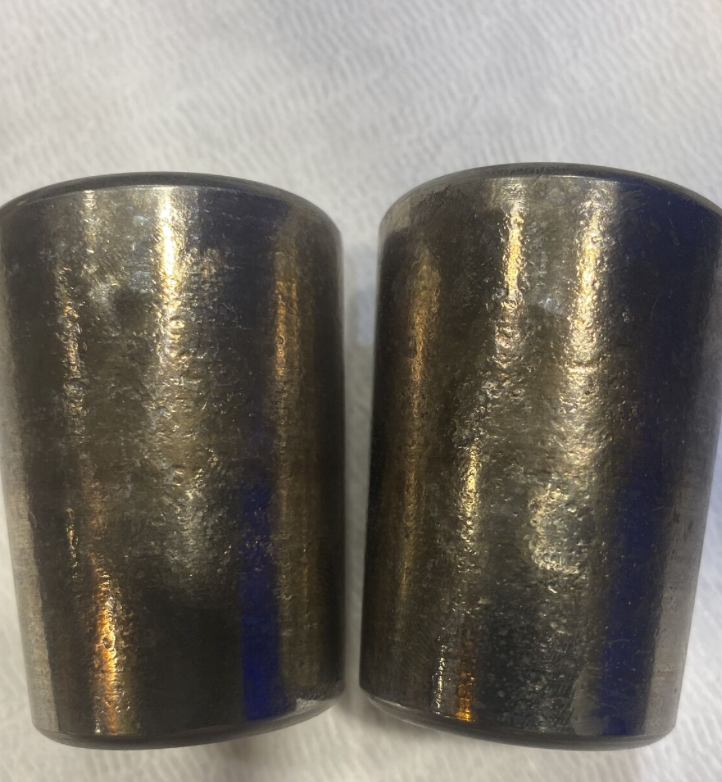

Here is a little share from low speed piece of equipment 311.5 RPM. Bearing was a H936349 Timken. The defect reach a more severe stage while it had to waiting for parts and a schedule to do the repairs.
The Side bands are very visibly. Thought I might share because they can be seen so clearly.

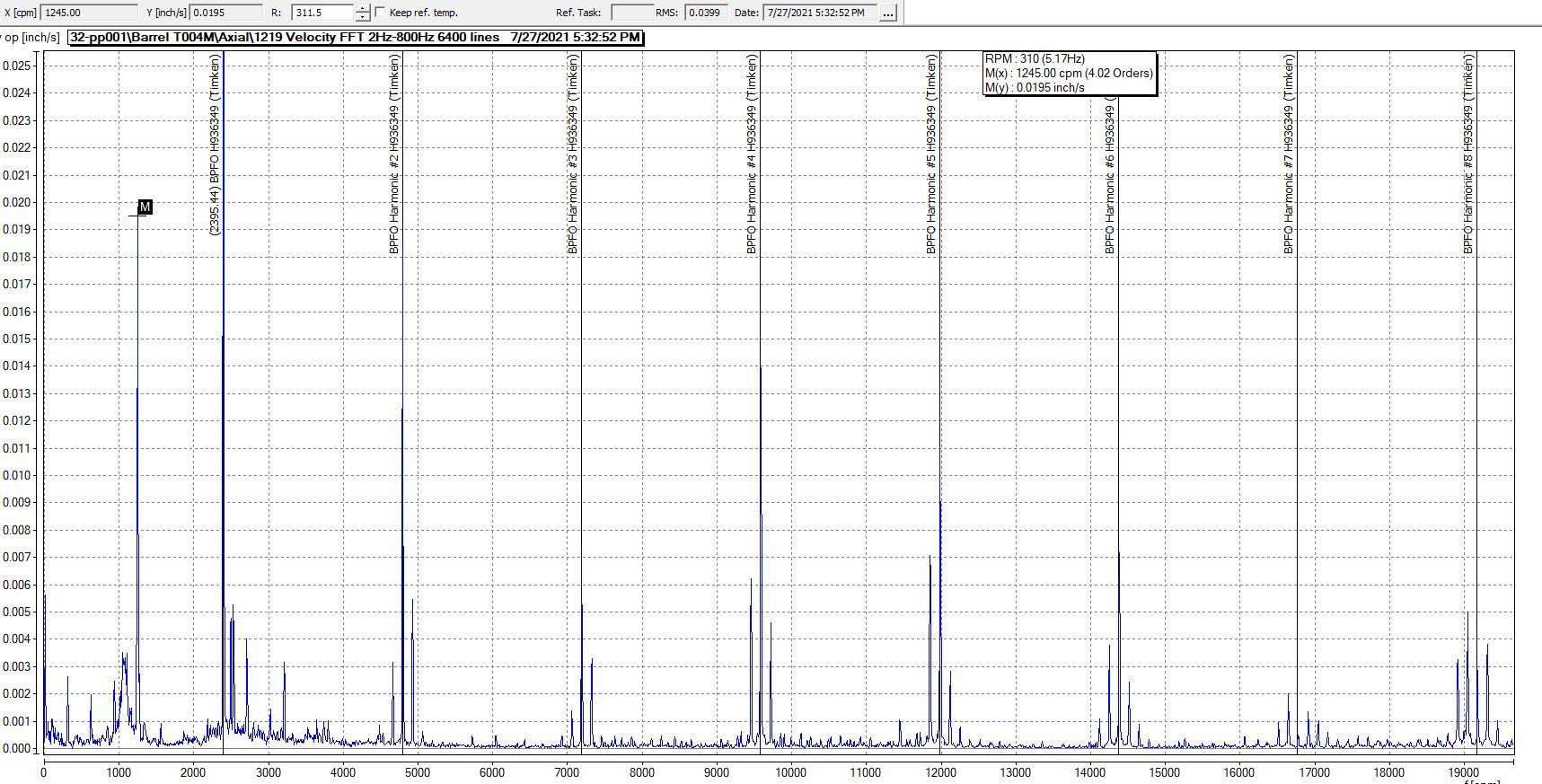

Attached is a higher resolution low Fmax. Velocity spectrum.
Attached is a Envelope spectrum 3.2K LOR, in the envelope you can also see the "FTF" side bands around the "BPFO".
Attached is a time waveform in acc. showing the impacting at "BPFO". This reached an impressive 68 G`s of acc. before part came in for repair.
