Conveyor Bearing Inner Race Fracture
Data shared of inner race fracture on 51 RPM conveyor bearing.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Here is some clean data of an inner race fracture from a 51 RPM conveyor bearing on a 12 inch shaft.

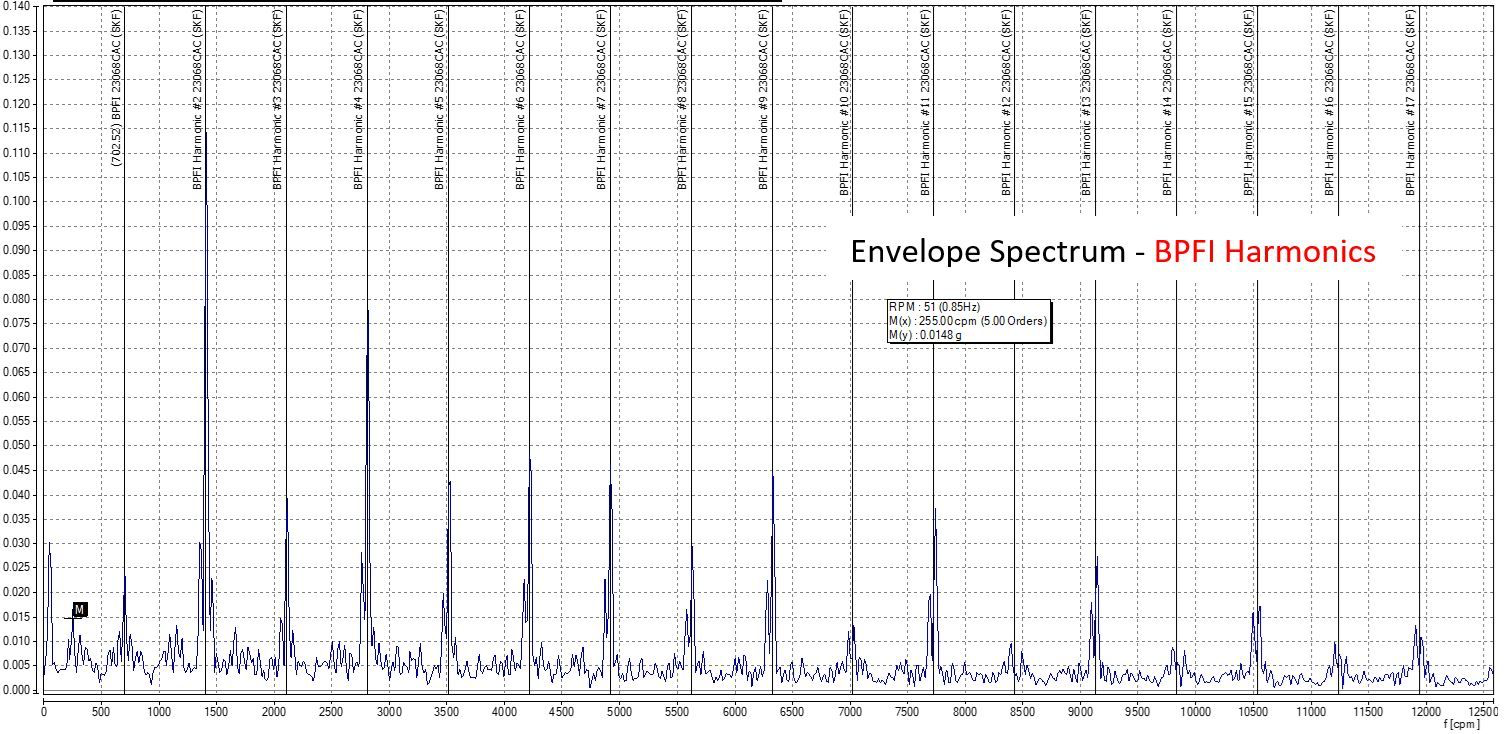

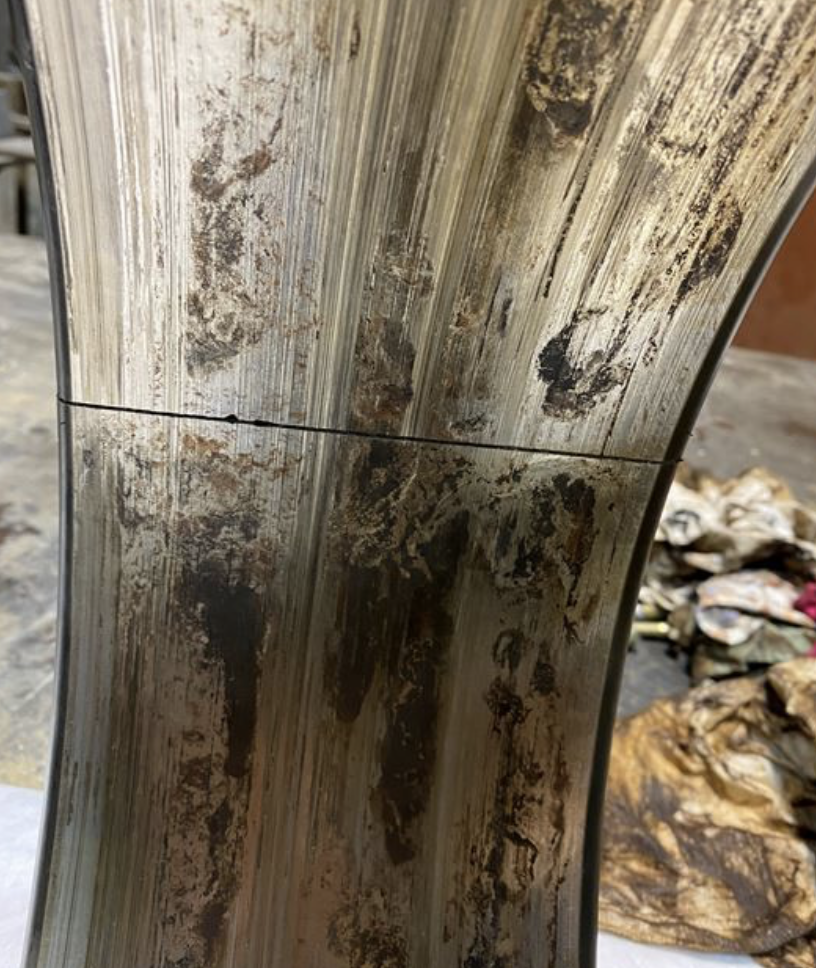

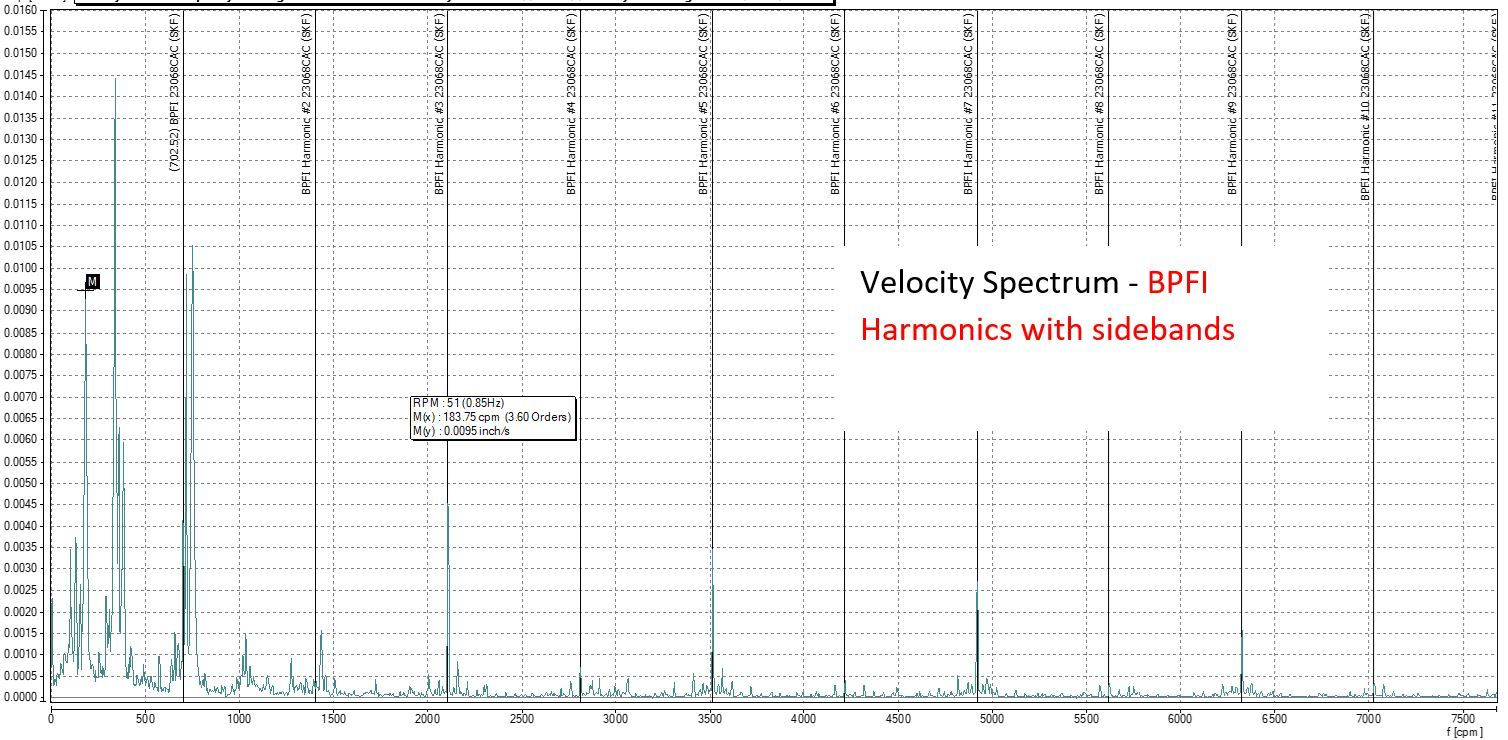

This defect was identified and changed out later on a planned outage. BPFI - inner race fracture.
(SFK) 23068CAC Taper Lock bearing. 51 RPM (0.85 Hz).
I enjoy reading everyone else`s data and thought this was a fair one to share as the fault frequencies are very clear.
Gear - Old tired boots, Pruftechnik Vibexpert II with a 6.142R 100mg acc.
