Paper Mill Dry Section Bearing Outer Race Fault
Bearing 23036 CCK/W33 in the dry section of a paper mill is experiencing outer race and rolling element defects at 106 rpm.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Catch of the day 🕵♂️
Slow Speed bearing, where you should take care of frequency component regardless of amplitudes 📈
in paper Mill the dry section is challenged and hazardous area ⚠⛔
because the high temperature degrees 120 c and more. in addition to rotating equipment, so take care and remember that safety first.
So, Create Concentrate Database, use available techniques to compare, and first Ask God for success.
👉 Bearing 23036 CCK/W33
👉 Speed 106 rpm

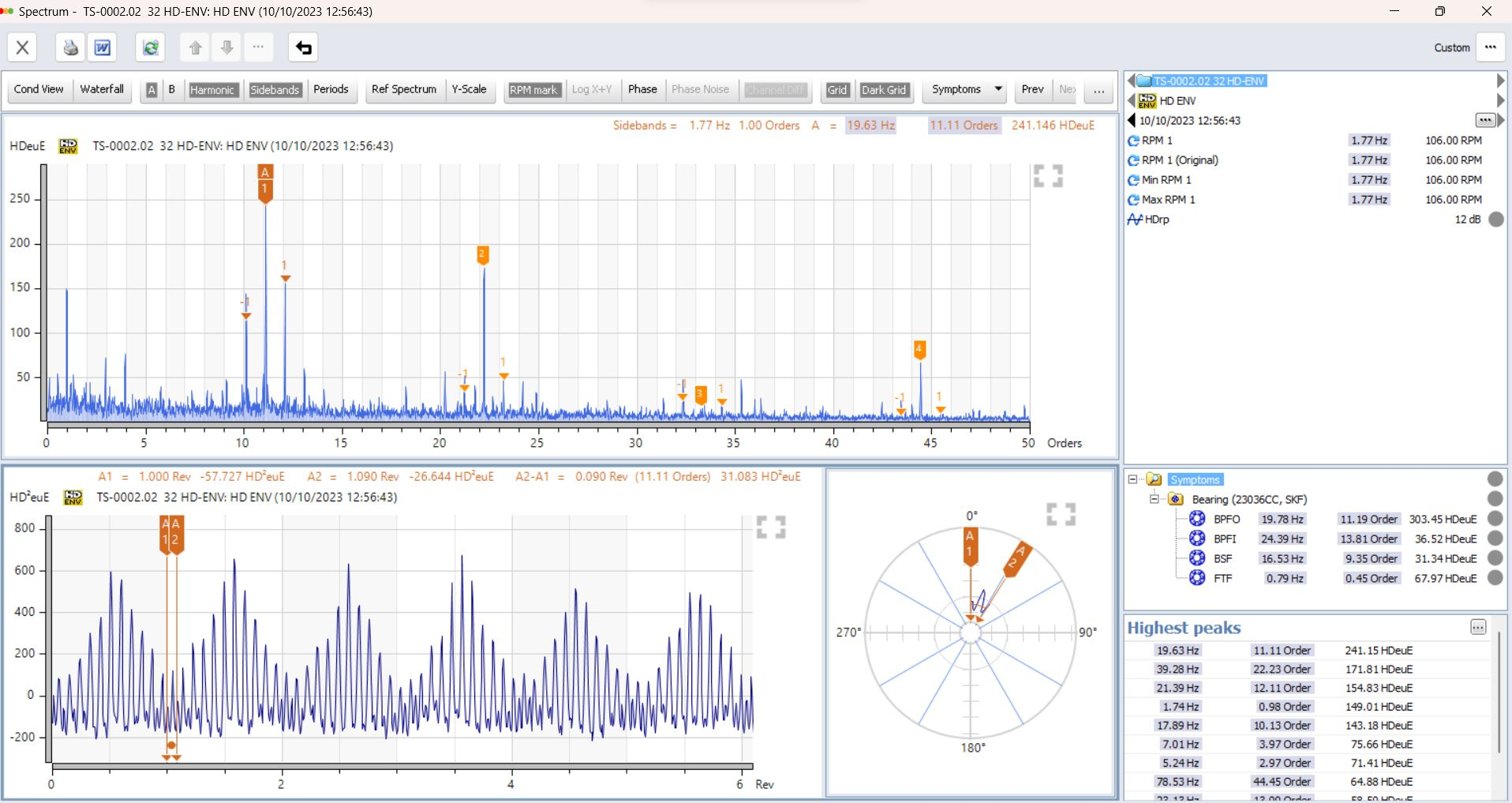

👉 Technique "HD-Enveloping"
"Vibration (High Frequency range ACC)"

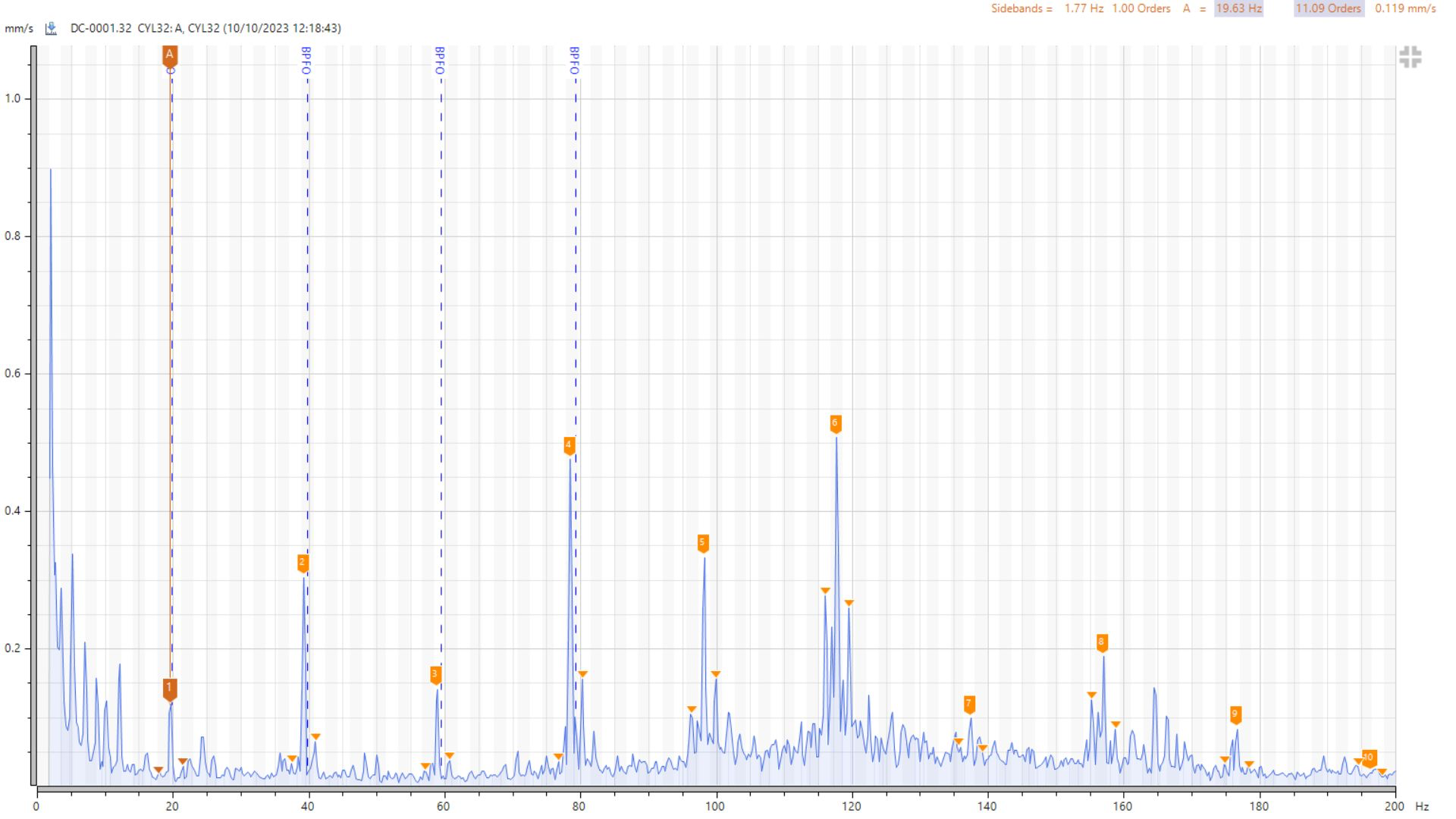

"Vibration Velocity low range"

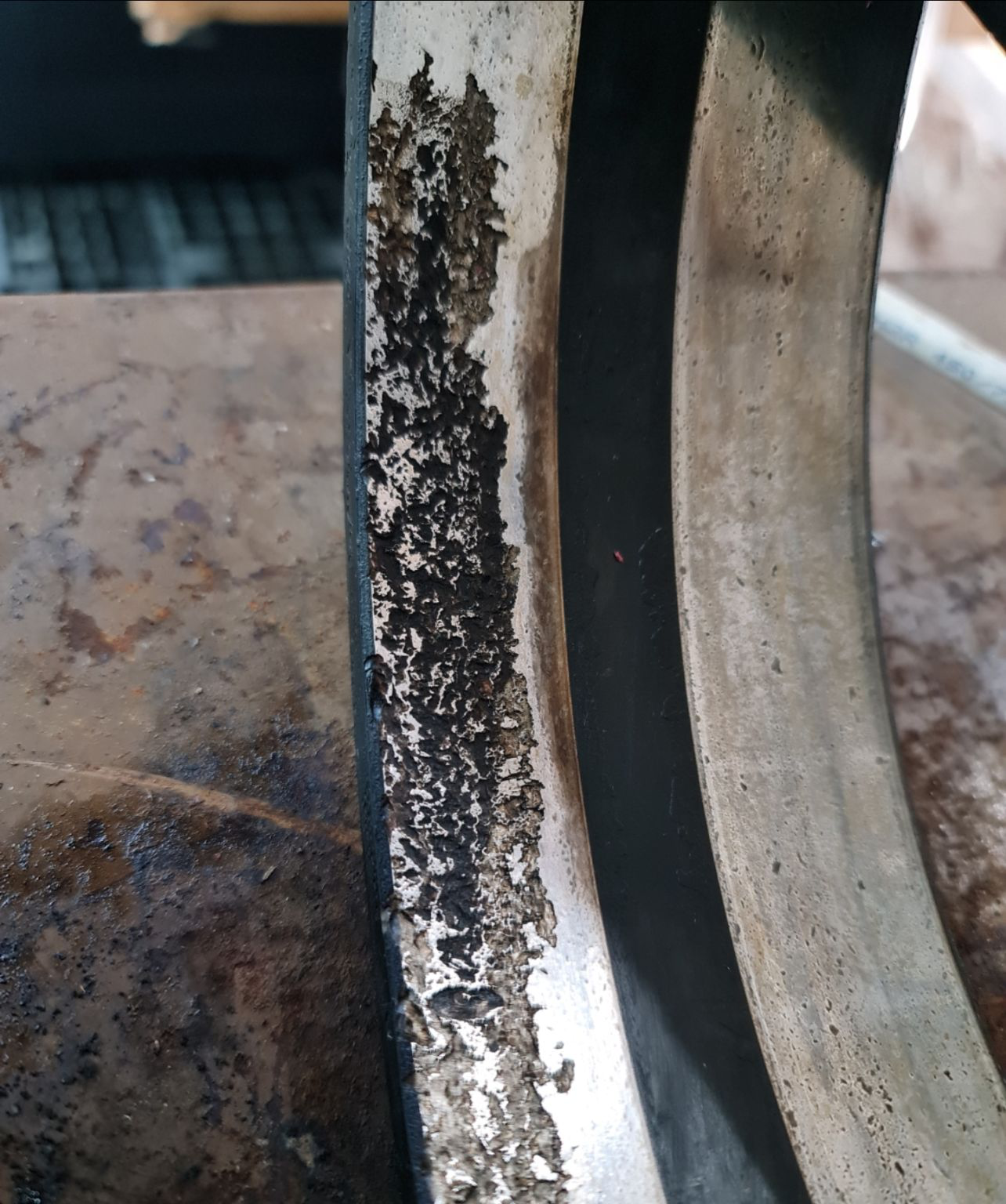

✅ Outer race and rolling element defect.
