Ball Mill Pitting Wear at Bearing
Ball mill gearbox shaft 2 bearing damaged due to pitting wear.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Equipment Type: Ball Mill
Rated speed：1000rpm

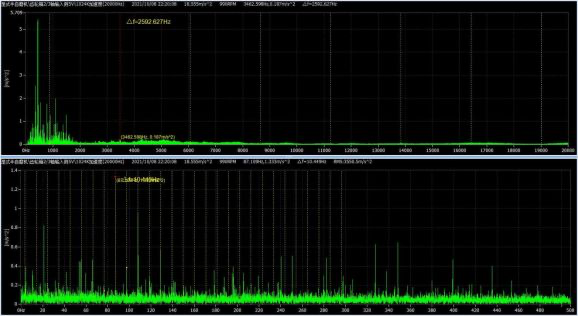

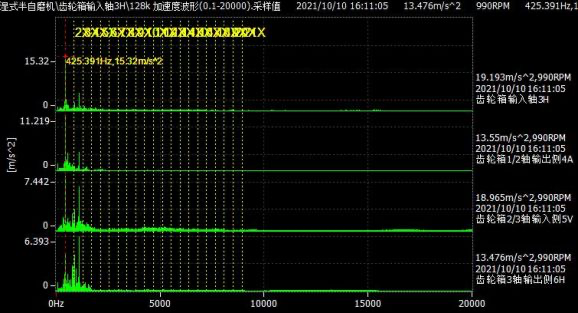

The shaft 2 bearing of the gearbox is damaged in the early and mid-term, mainly due to the uniformly distributed pitting wear of the inner ring, and has deteriorated recently.
