Pump Soft Foot Fault
Abnormal vibration increase at 2x value detected at P. DE.H and M. DE.H, requiring soft foot check for pump and motor.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Vibration Analysis

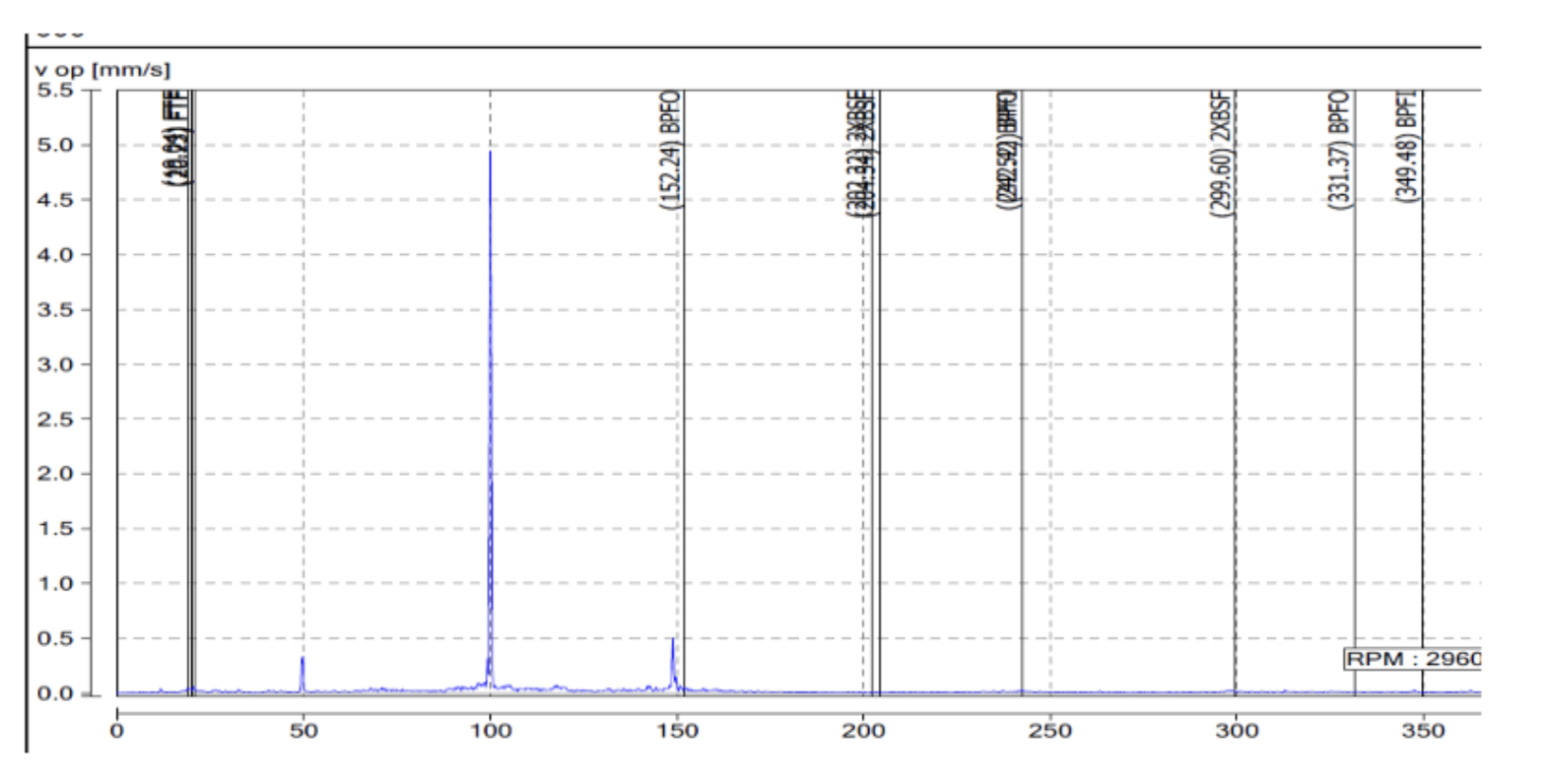

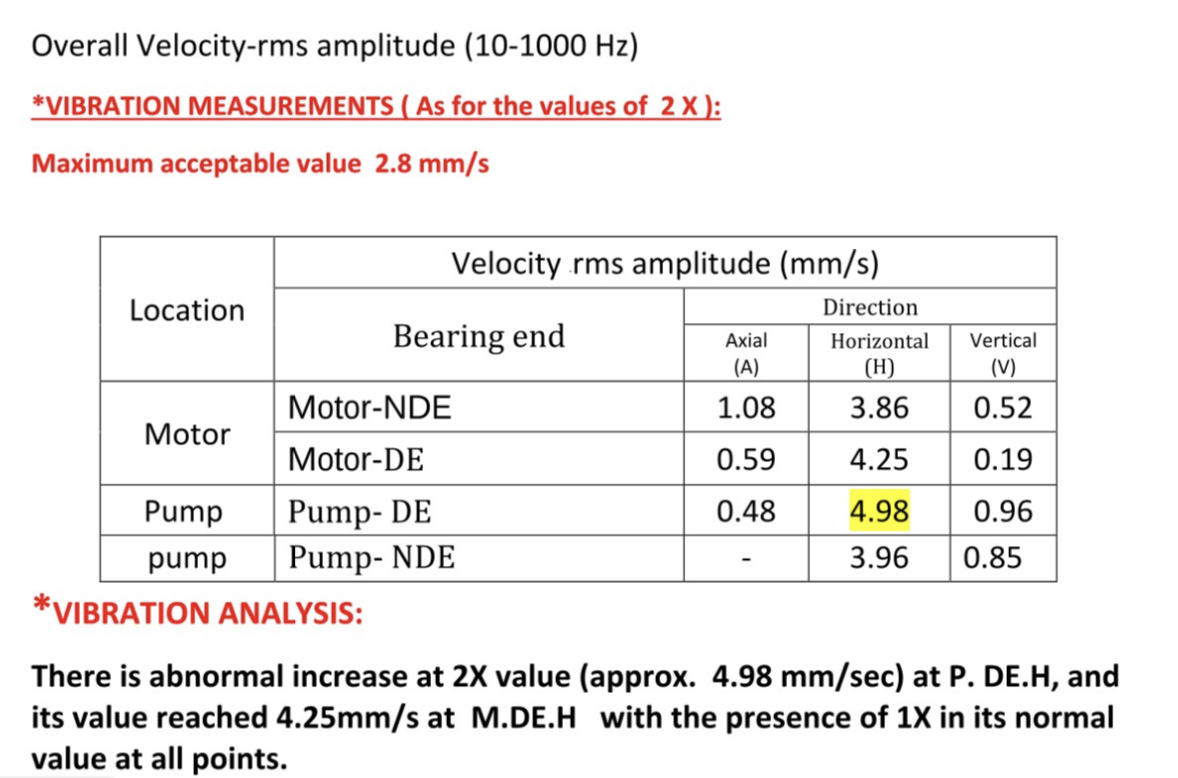

There is abnormal increase at 2x value, approx. 4.98 mm/sec at P. DE.H, and its value reached 4.25 mm/s at M.DE.H with the presense of 1X in its normal value at all points.
Soft foot shall be checked for pump and motor
