Cement Mill Separator Fan Bearing Fault
Vibration analysis of a VSD drive revealed high envelope levels and ball pass frequency harmonics, leading to bearing replacement and subsequent defect discovery.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Deep Grove Ball Bearing
Number of Bearing 6218
Machine : VSD drive 1500 RPM
210 KW
.........

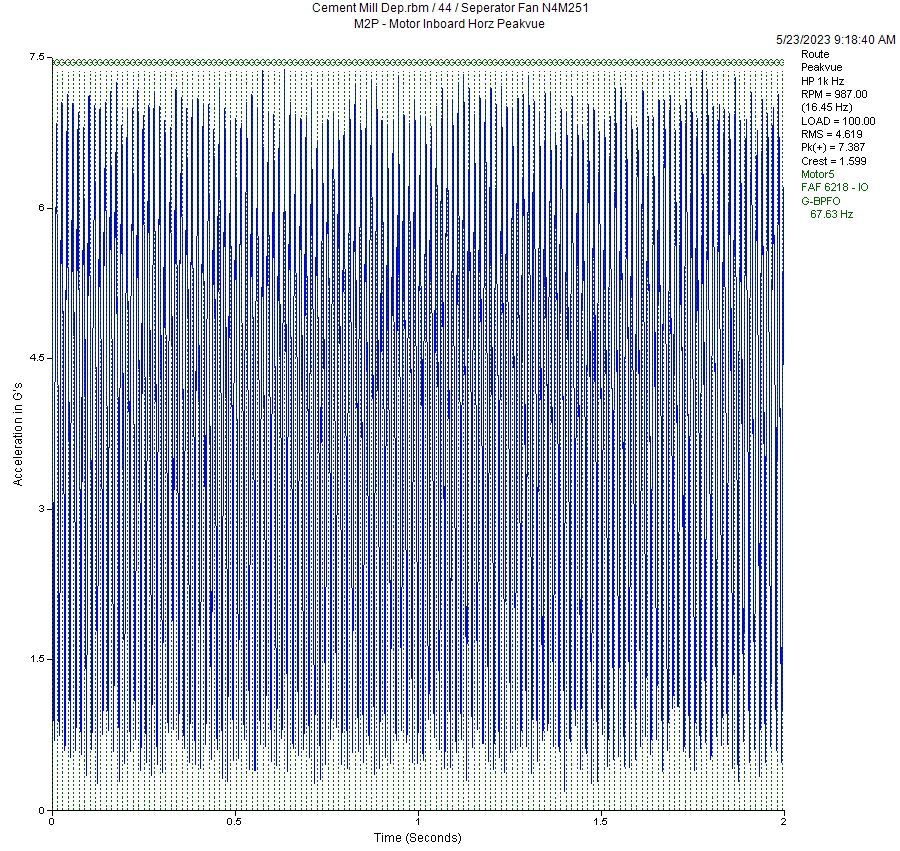

During our vibration route we noted that the envelop level increased to 18 gE

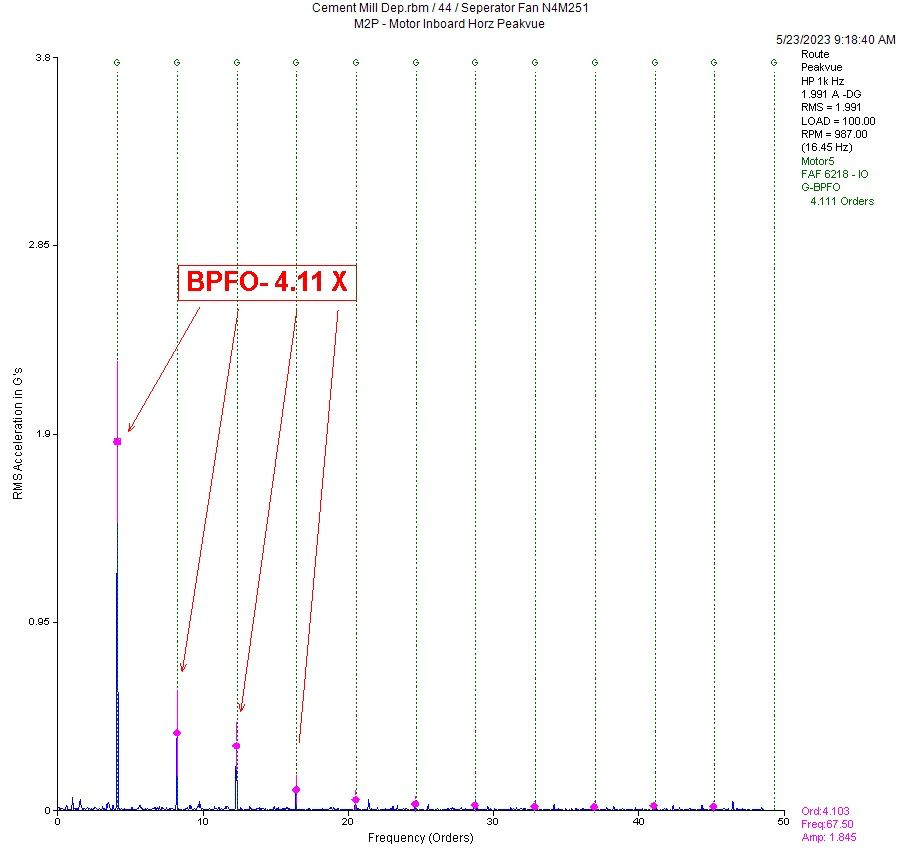

after data was accusations the value of spectrum shows
Ball pass frequency outer race with theirs harmonics.
We selected to replace the bearing & after bearing dismantle the bearing we noted the defects.
