Rotor Bar Problem for Electric Motor
High-frequency vibration analysis of a 40HP-1200 rpm electric motor revealed rotor bar failures. Damage to the plates was also observed.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

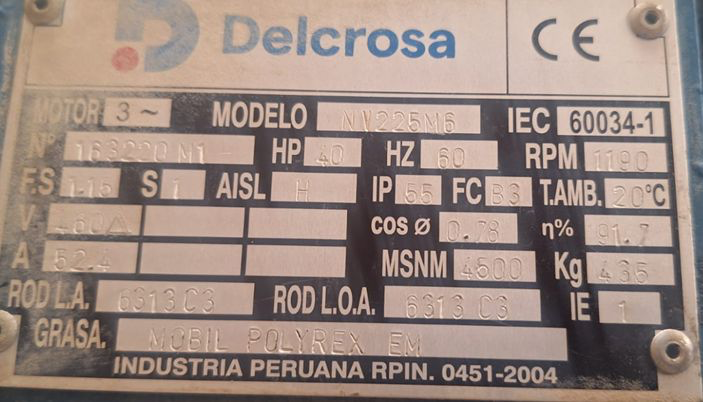

Failure analysis in a 40HP-1200 rpm electric motor. - FPB failure

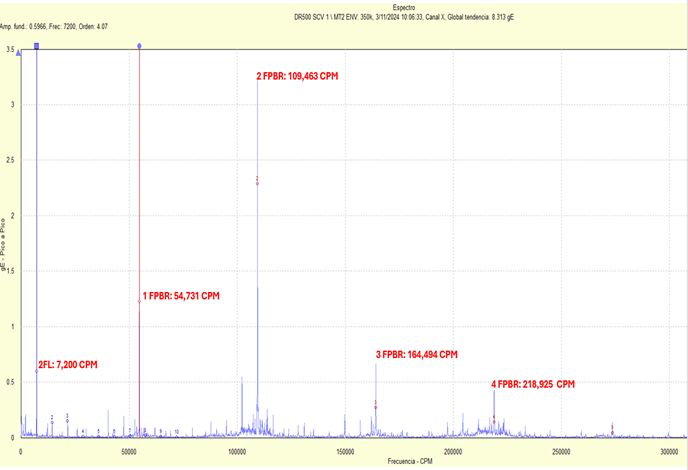

An electric motor with high noise at very high frequency was intervened. The very high frequency vibration spectra were analyzed; the frequency of failures of electric rotor bars was observed.

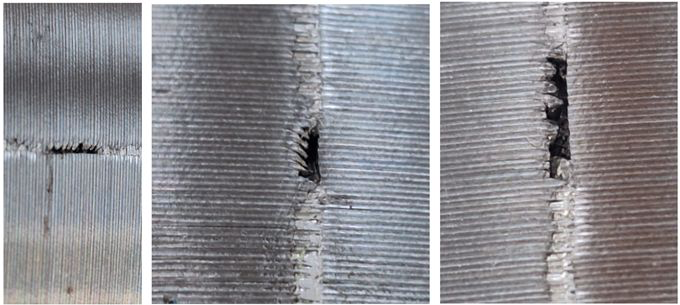

The plates were checked and the following damage was found shown in the images.
Additional Images
