Hammer Head Damage
A damaged hammer head caused an abrupt increase in machine vibration.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
A single worn out hammer head can create impact on machine vibration.

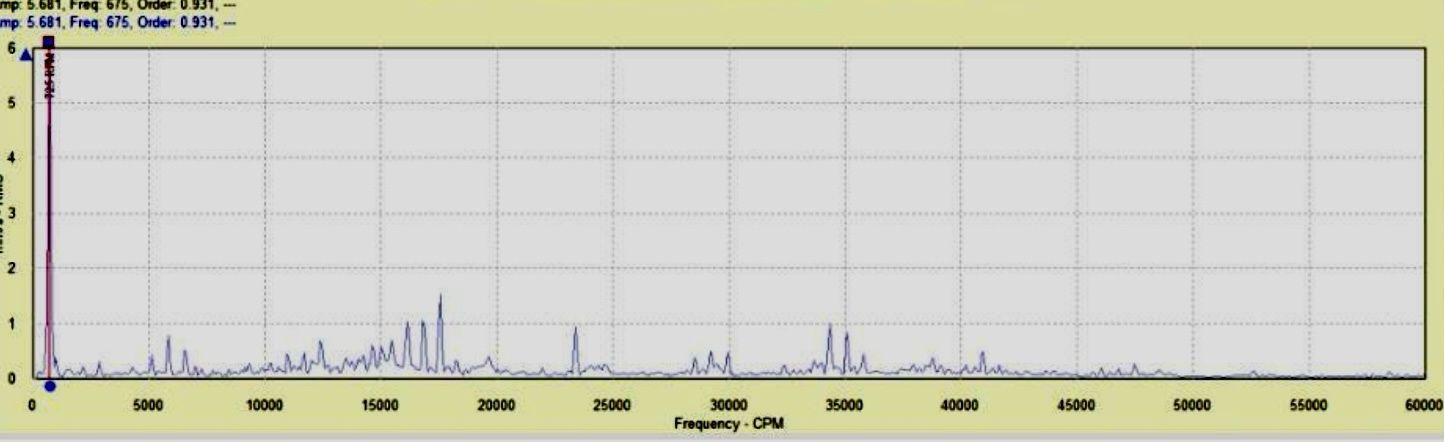

During routine data gathering, an observed abrupt increase in overall velocity vibration. Spectrum indicates dominant 1x shaft turning speed- a suspected unbalance of the equipment.

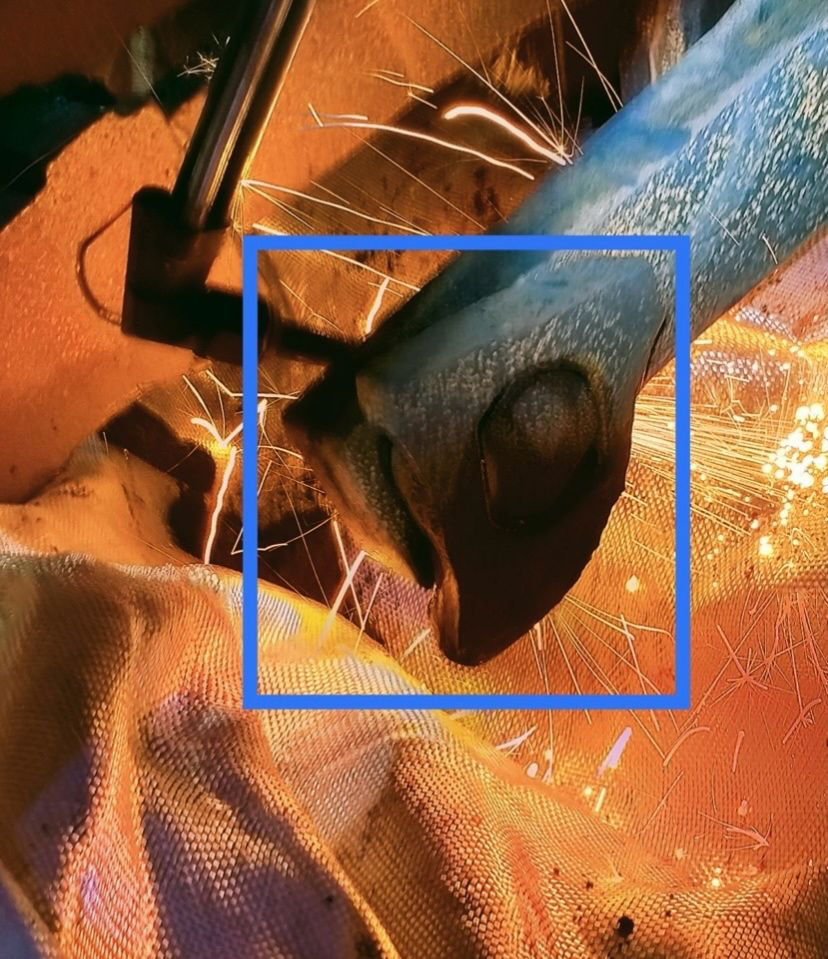

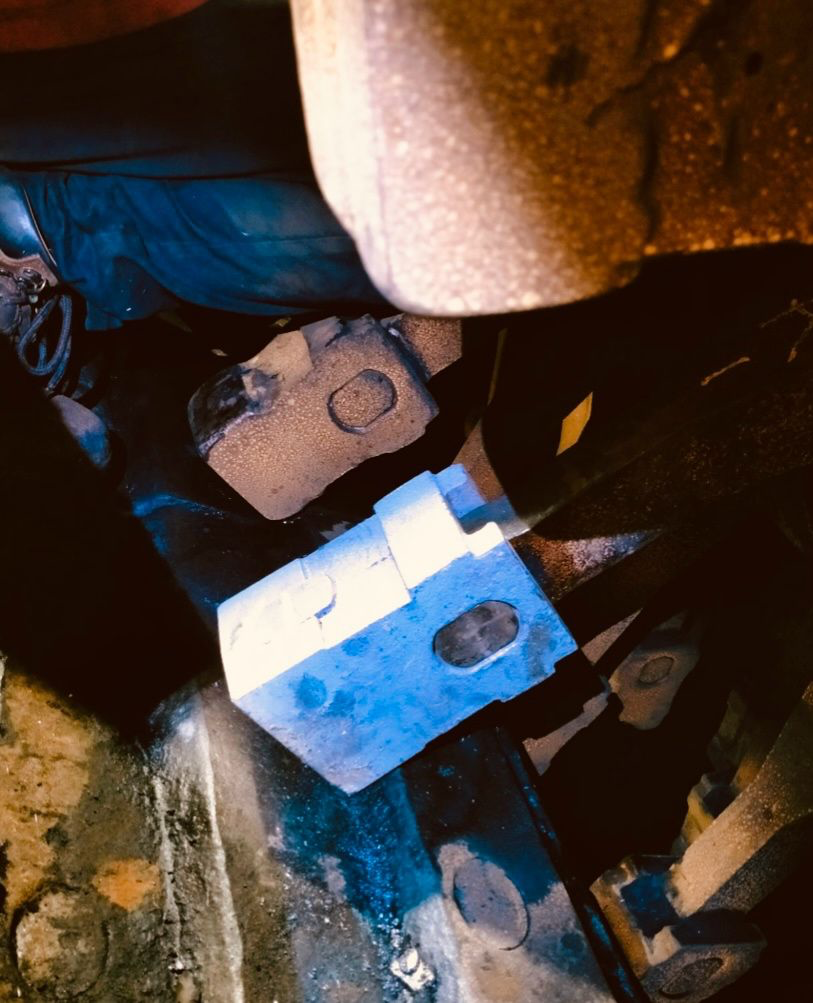

Upon actual inspection, 1 hammer head is already damaged.
