Bearing Wear Prediction Before Catastrophic Failure
Vibration analysis detected developing bearing wear, allowing for scheduled repairs before catastrophic failure.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
With Condition Monitoring-Vibration Analysis we are able to detect developing bearing wear. The detection helps our operation and maintenance team scheduling repair before catastropic failure.
Both spectrum and time waveform are showing indication of bearing defect.

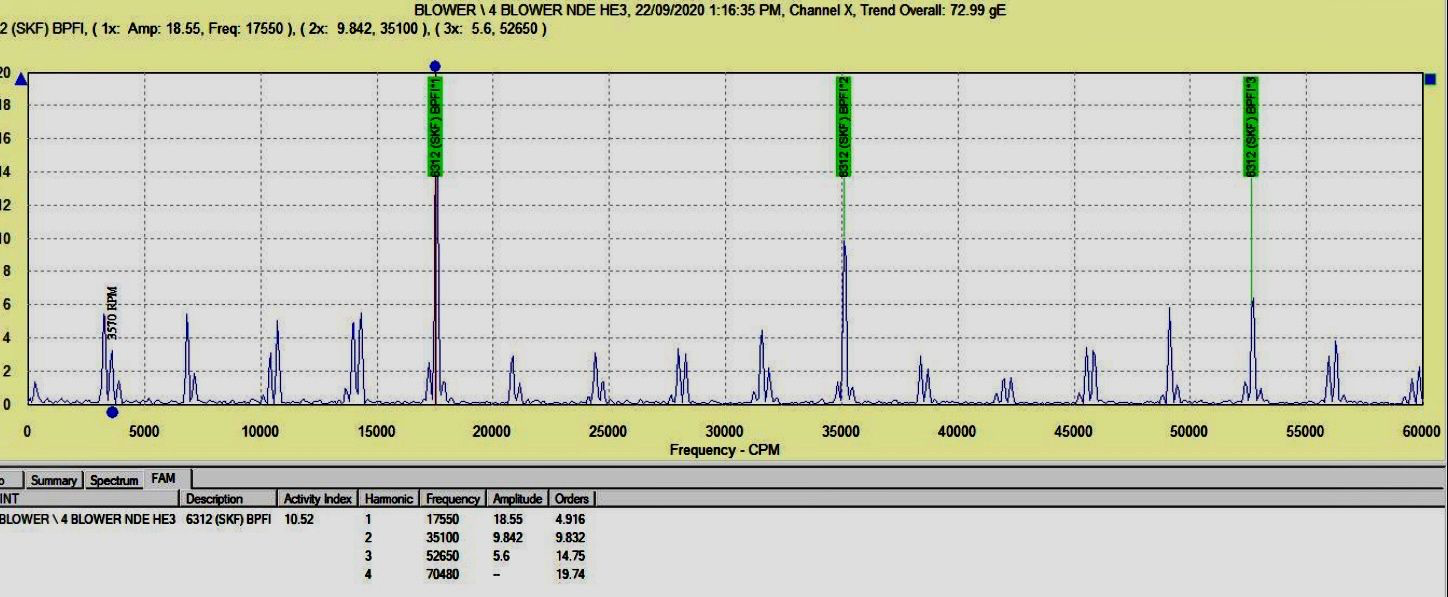

Spectrum shows non-synchronous peak(Ball pass frequency inner race of 6312 bearing.

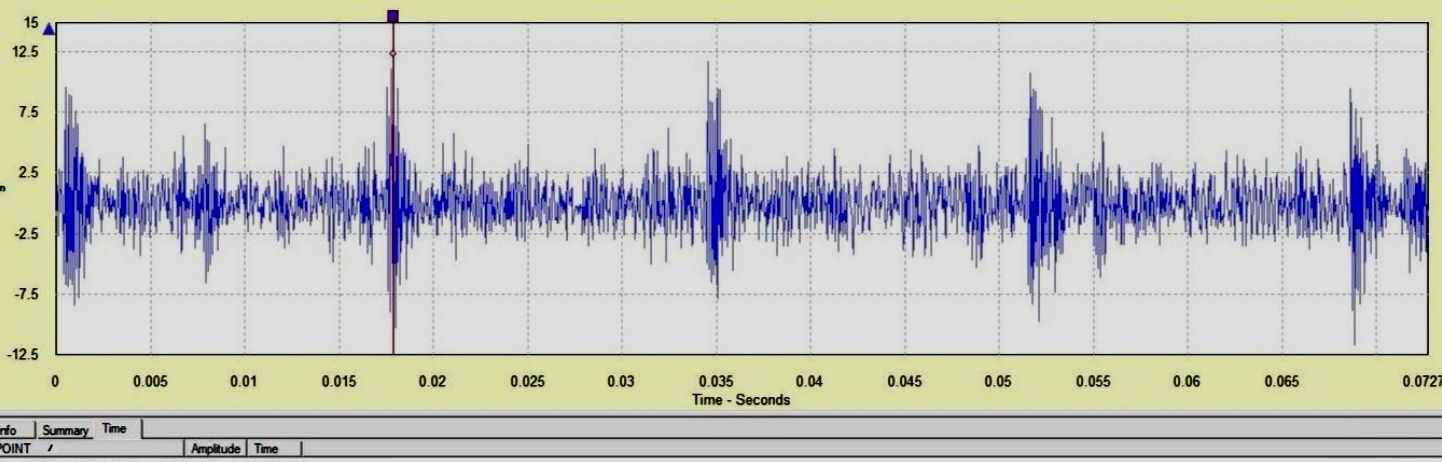

Time waveform shows regular impacting noise.
