Extruder Outer Race Bearing Fault
Vibration analysis detected a bearing fault, leading to a timely replacement and preventing delays.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
The power of vibration analysis & its benefits.
Good morning conditions monitoring specialist.

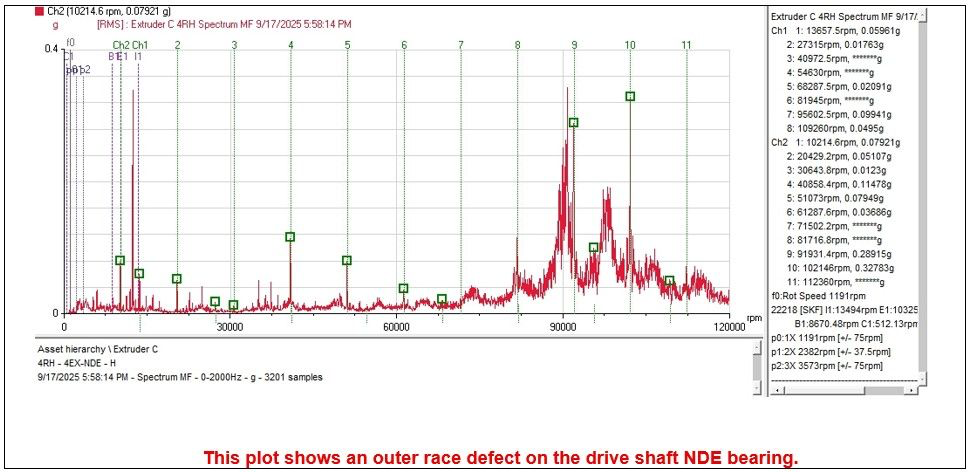

During my rounds on 2025-09-17 I noticed a different noise coming from one off my bearing. This was picked up with my SDT270, I then checked this bearing using the Aceom oneprod falcon & confirmed that we had a outer race bearing fault. I sent my client a message right away asking them to investigate this issue. During their investigation they had discovered that the bearing had a crack in the outer race. They were able to replace the bearing & start backup without any issues or delays.
Additional Images
