Greasing Effect on Bearing Fault Frequencies

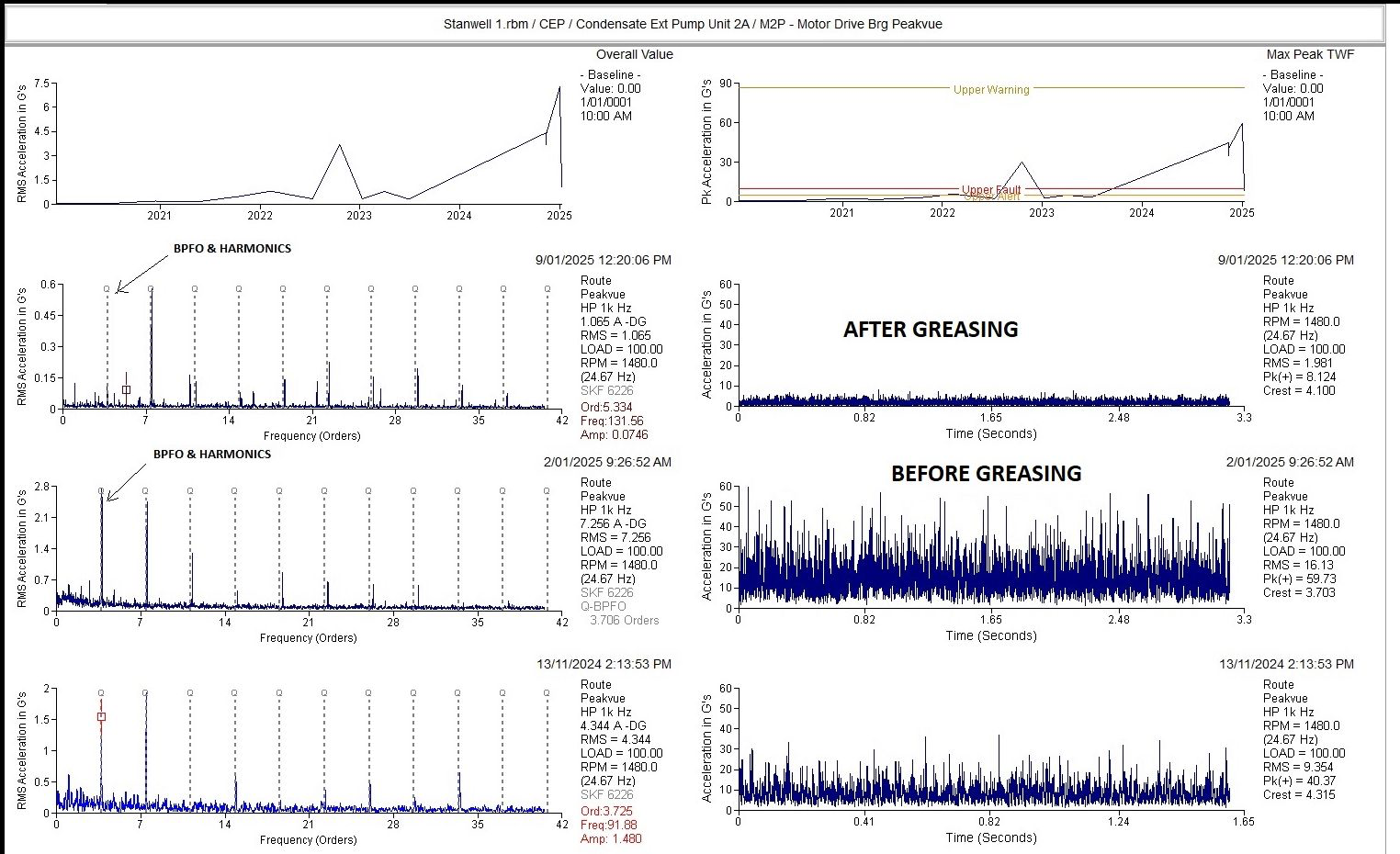

During the last routine data collection, BPFO & BPFI peaks were observed at the DE of Condensate extraction Pump 2A & 4A. On 2A peaks were up to 60 g's pk-pk while on 4A peaks were at 55 g's pk-pk (Waveform).
Customer was advised to grease motor bearing. Shortly after greasing, peaks dropped to 8 g's pk-pk and 15 g's pk-pk respectively (waveform). After greasing, looking at the spectrum for 4A, peaks at BPFI with 1X sideband became obvious along BPFO, when you add both peaks together, it gives an interger number of 9 (3.73x + 5.27x = 9), indicating the number of balls on the bearing are 9. Below are attached photos

At Machinery Consultation and Services Pty Ltd we do due deligence to avert failures and prolong the life of your equipment...

Data were collected using the Emerson AMS 2140 vibration analyzer
