Axial Fan Imbalance and Bent Shaft Failure
Axial fan experienced imbalance and bent shaft failures, detected through velocity spectrum analysis. Balancing and shaft correction resolved the issues.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Equipment: Axial Fan(Vacuum Fan)
250kW/3000rpm
Drive Type= Coupling
Detected Failures= Imbalance and bent shaft

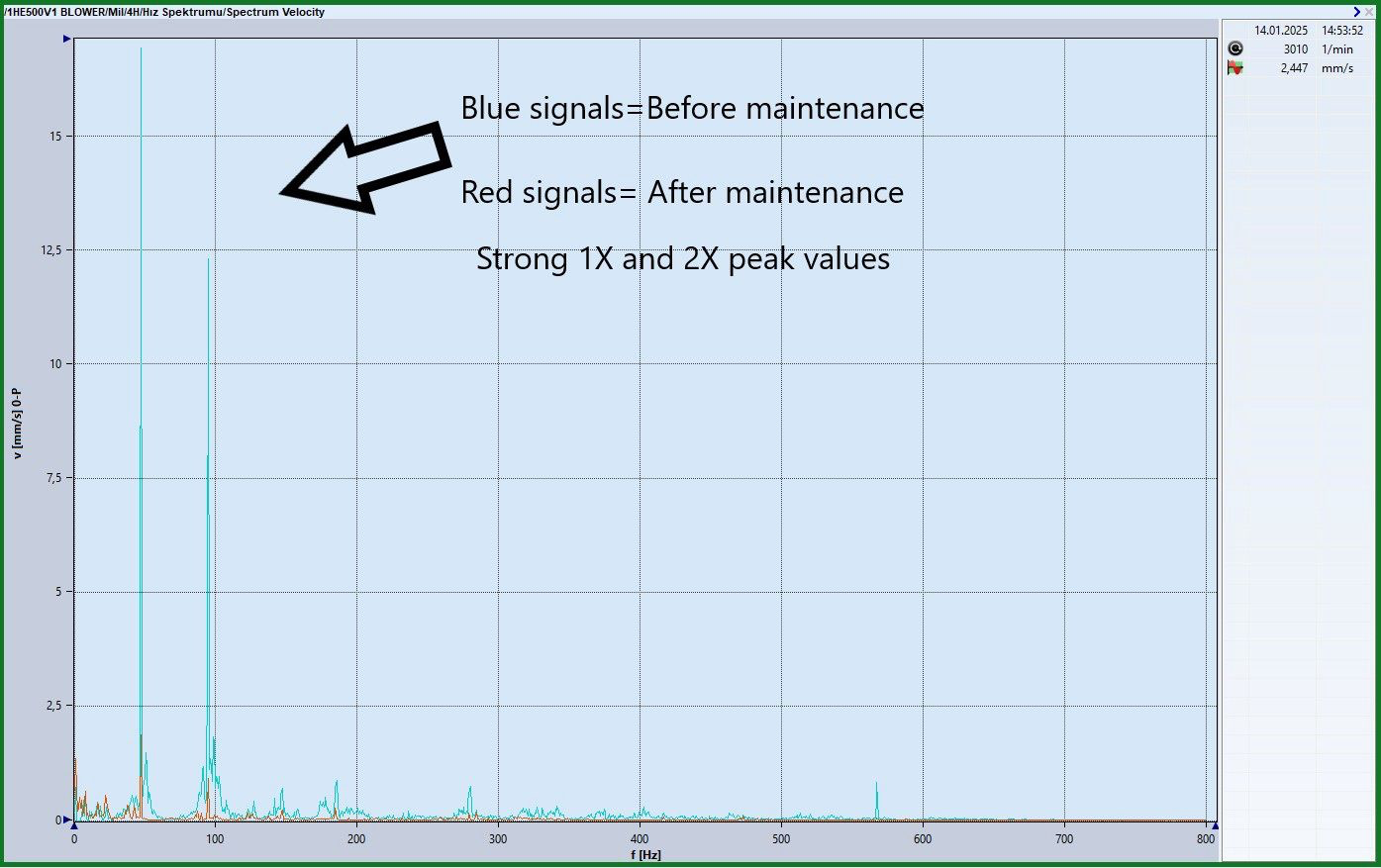

When we look at the velocity spectrum, there are 2 peak values in the first and second orders(Blue colored signals)

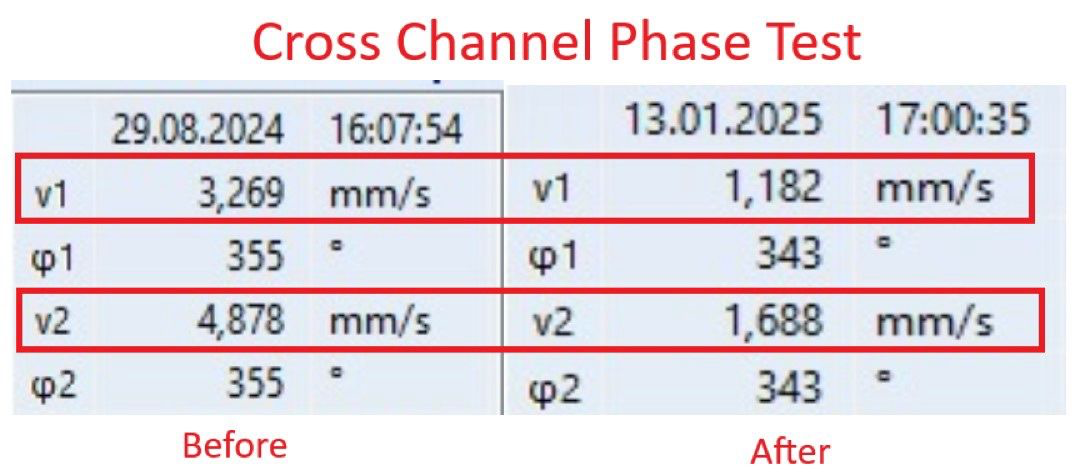

After we detect the bent shaft failure, we took a test of cross channel phase.
In this test we've detected the imbalance failure(Values are near the 360 degrees)

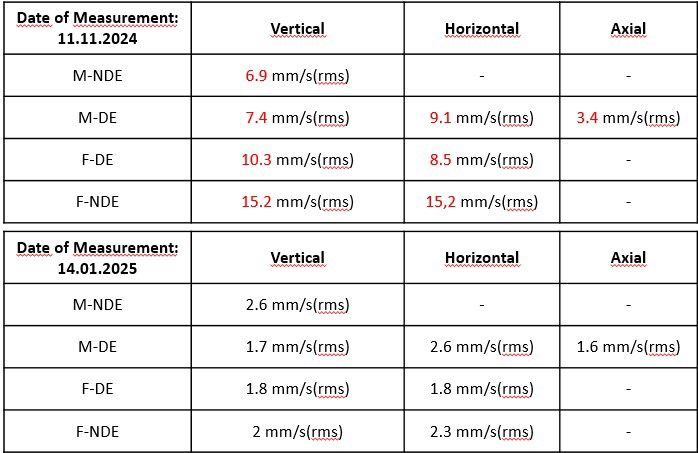

After the balancing and shaft correction services, we took a vibration measurement. All the problems were gone
