Incorrect Belt Tension and Alignment Problems
Incorrect belt tension and alignment in belt-pulley-connected equipment lead to excessive pressure, temperature increase, and potential equipment failure.
Tension and alignment tolerances of belt-pulley-connected equipment are vital for equipment continuity...!
The excessive pressure created by the over-tensioned belts on the motor inboard and equipment inboard increases the centrifugal level to Max levels, causing excessive pressure and temperature increase in the bearing outer ring

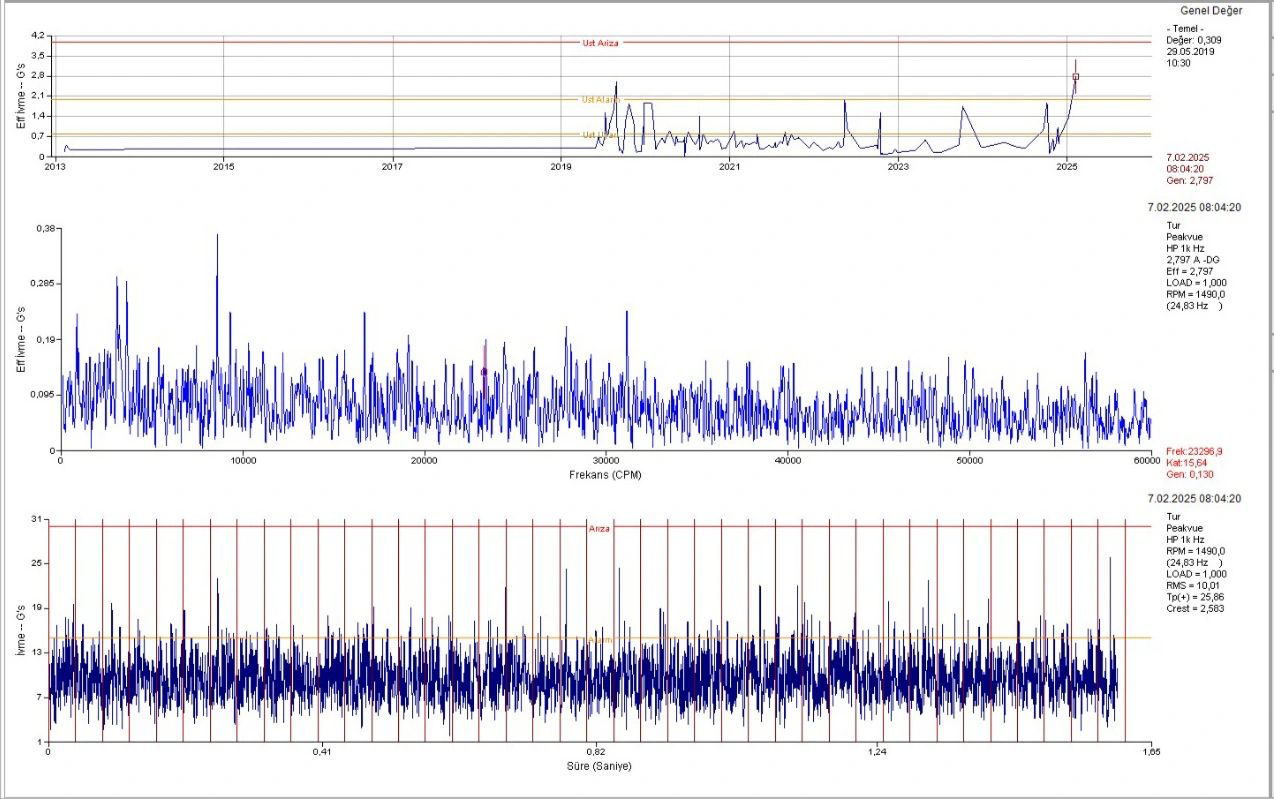

1x + ground swell comes with dominant belt frequencies
( p=t1-t2. V )
p=power transferred
T1= Traction direction belt tension
T2= direction of thrust belt tension
V=belt circumferential velocity m/s
INCORRECT ALIGNMENT - INCORRECT TENSION = LOSS OF PRODUCTION AND WASTE OF SPARE PARTS
