Motor Pump Axial Pulling Force to Bearing Damage
Excessive torque on lamellar coupling during reassembly causes axial pulling force on motor bearing, leading to damage.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

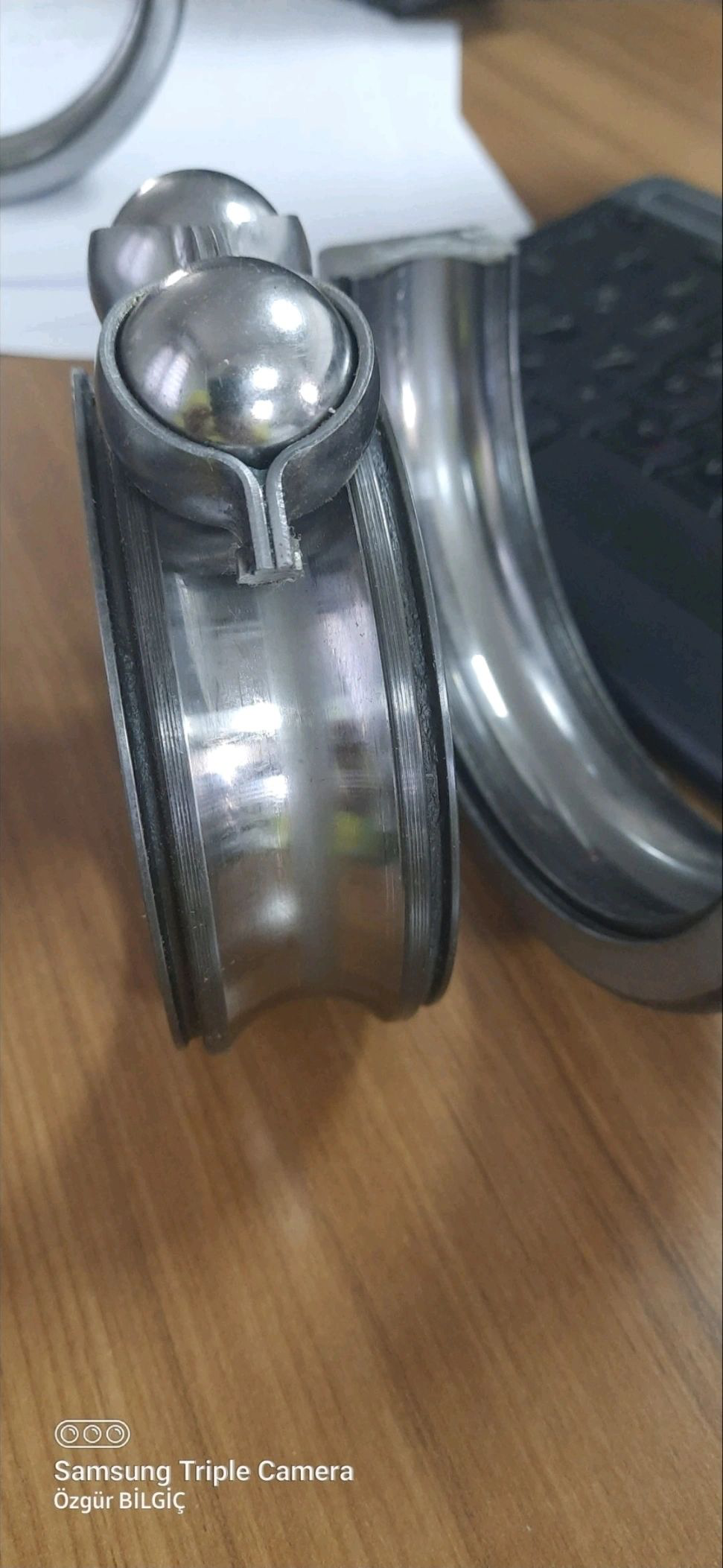

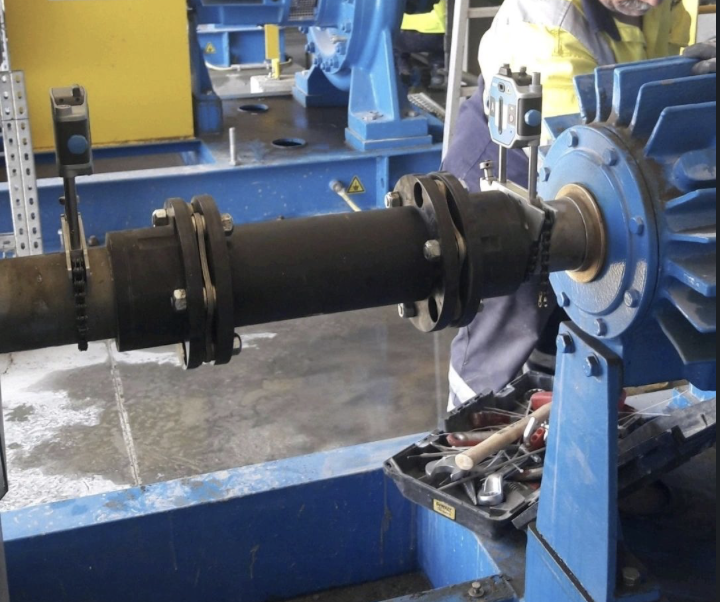

The marks formed on the inner ring and outer ring of a 75 kW motor bearing. Lamellar coupling is an application that facilitates disassembly of the pump without dismantling the motor used between the motor and the pump. Excessive torque on the lamellas during reassembly pulls the motor or pump shaft and creates axial pulling force on the bearing. This leads to bearing damage. We can call the fault in these pictures an Example Pure Axial Load case.
Additional Images
Post Information
Category:
Vibration Case Study
Language:
English
Reading Time:
1 min
Tags
Original Authors
Özgür BİLGİÇ
Source:
https://www.lin...
