Gearbox Bearing Usage Until Failure
Gearbox Bearing failure due to BPFO.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
High Speed Bearing Inspection Gear Box

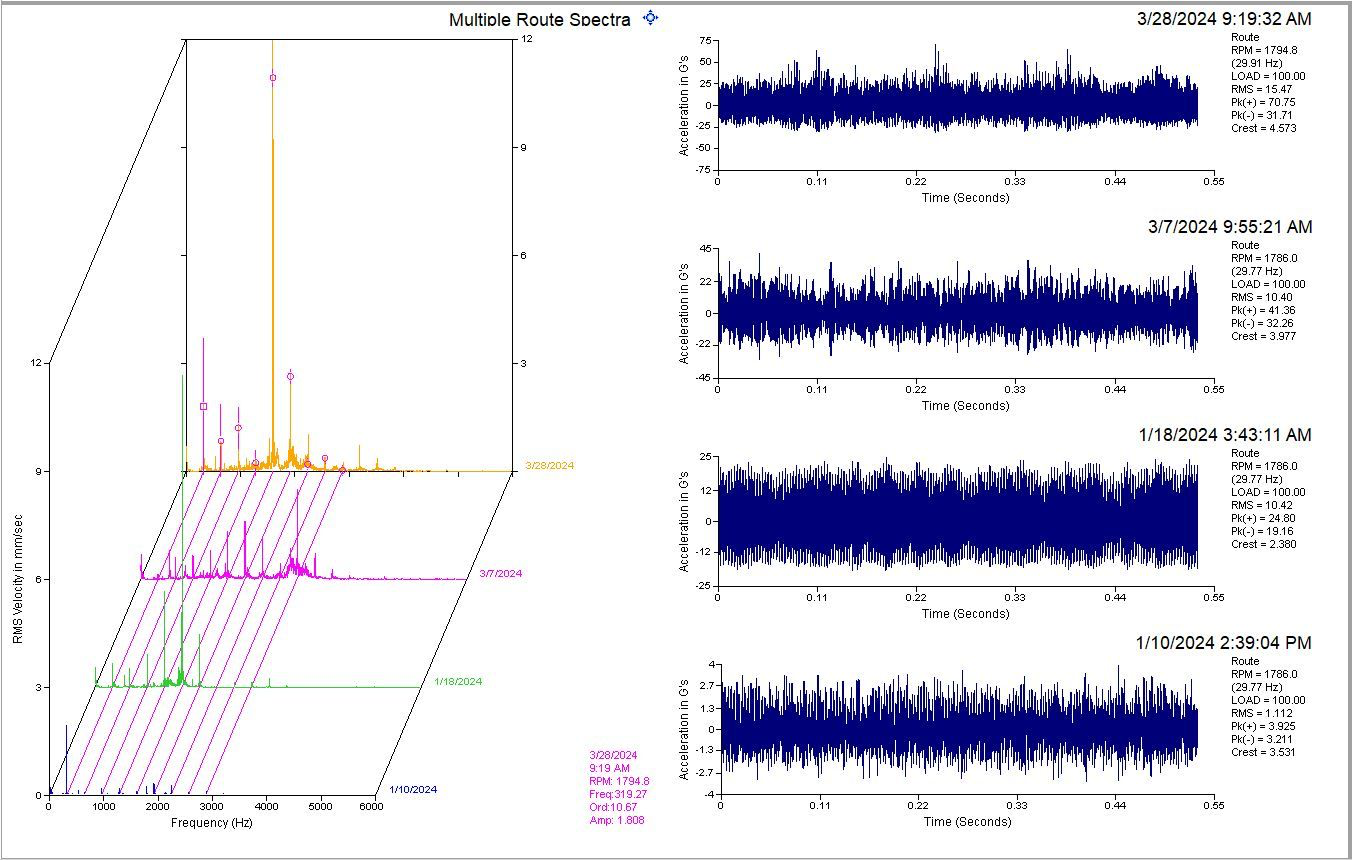

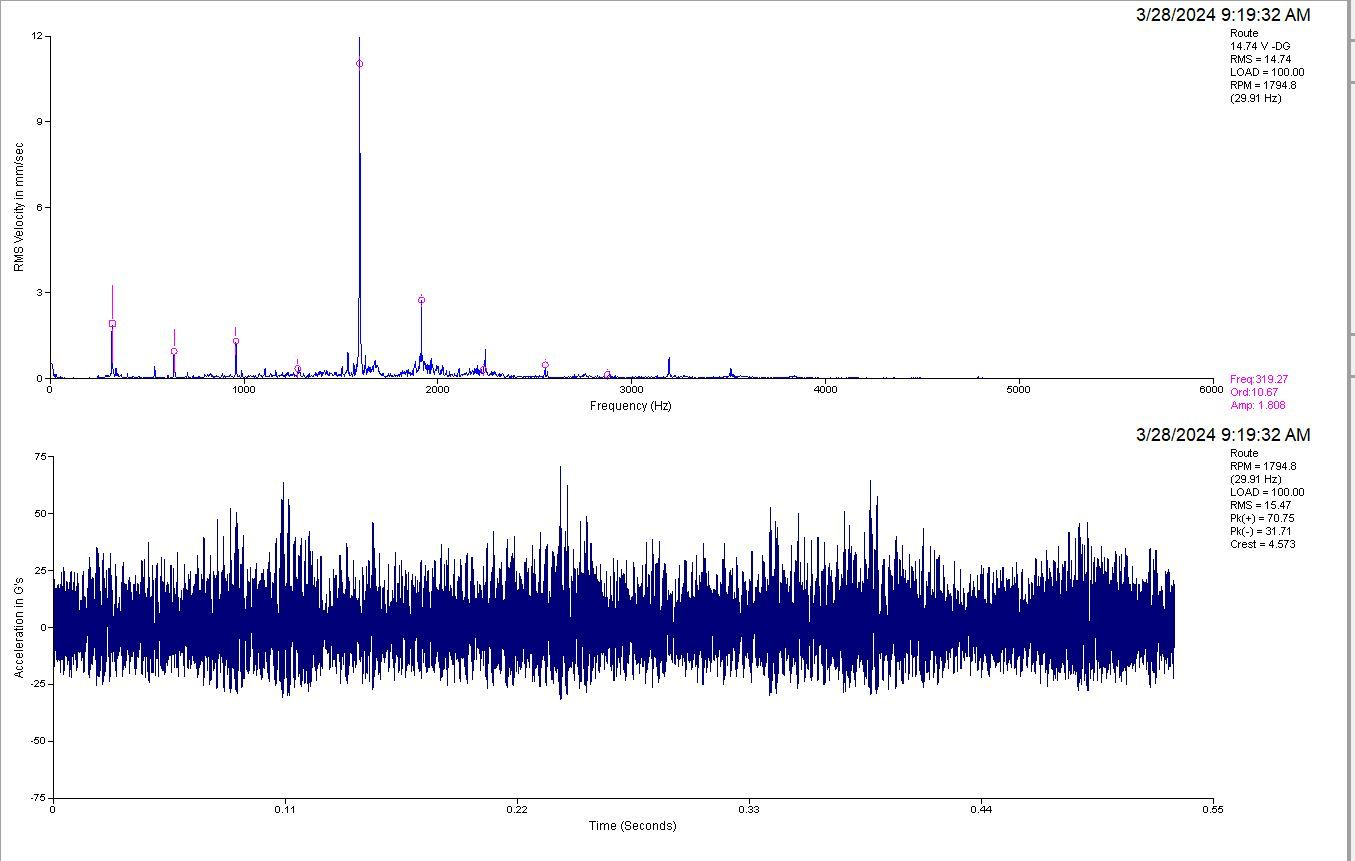

Failure: BPFO (BALL PASS FREQUENCY OUTER)
Data: SKF 24022CC/W3 Bearing, Speed: 1785 RPM.
Well, this is what happens when you don't stop the equipment and let it work until functional failure.
