Belt and Pulley Drive Systems Beat Vibrations
Belt and pulley drive systems should avoid identical pulley diameters to prevent belt slippage and beat vibrations. Adjusting pulley diameters is recommended but often disrupts operational parameters.

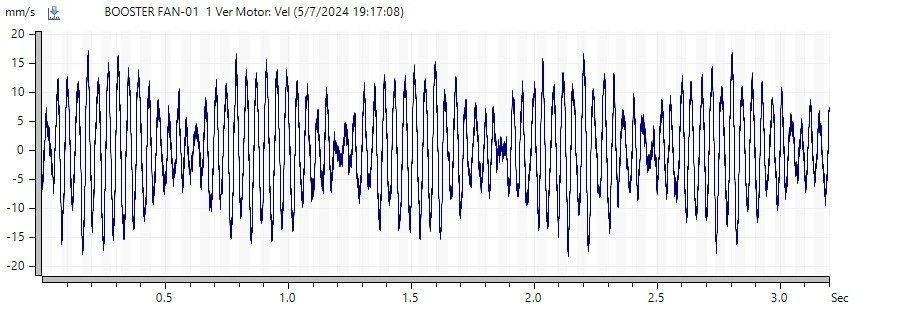

In the design of belt and pulley drive systems, pulleys should ideally not be identical in diameter to prevent belt slippage on one pulley, which causes the rotational frequencies of the motor and driven component (e.g., a fan) to closely align, resulting in beat vibrations (|f₁ − f₂|) (The attached diagrams illustrate an actual case study exhibiting this specific issue).
Where feasible, adjusting the diameter of one pulley is recommended. However, this modification often disrupts critical operational parameters (e.g., speed ratio, alignment) and compromises production efficiency. What engineering solutions do you propose to resolve this trade-off while maintaining system performance?
