Pulp & Paper Plant Outer Race Bearing Defect Case Study
An outer race bearing defect in a Pulp & Paper Plant’s Dryer Section was analyzed using SDT’s UAS3 Software. The defect was found to be an inner race defect in an SKF-6312E bearing.

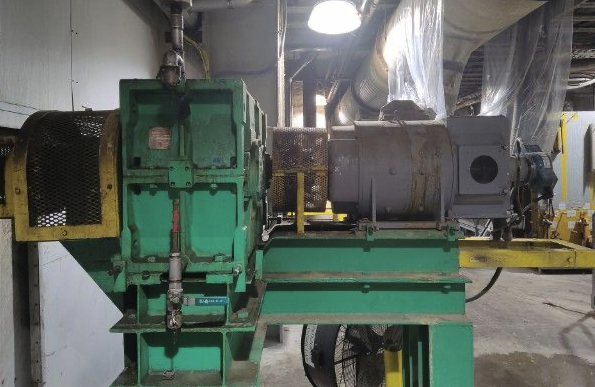

This outer race bearing defect was found in the Dryer Section of a Pulp & Paper Plant. It was pulled off the main motor which is connected to a gearbox. It controls a section of the dryers.
When this machine is down, the facility can’t dry their paper, and the production process grinds to a halt, costing tens of thousands of dollars per hour.
This data was recorded using an SDT270, and analyzed using SDT’s UAS3 Software with the Bearing Toolbox.
The bearing was an SKF – 6312E, after plugging the data, rotational speed, and bearing number into the Bearing Toolbox, our technicians were able to deduce that the bearing was suffering from an inner race defect.
Interested in learning more about the product? hashtag#HearMore using the link below!
https://lnkd.in/edF6VEjM
Additional Images
