Outer Race Defect with Ultrasound
Outer race defect found on SKF 22312 bearing using SDT340 & UAS3, confirmed with harmonics. Bearing replacement recommended due to prevalent defect frequencies.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!

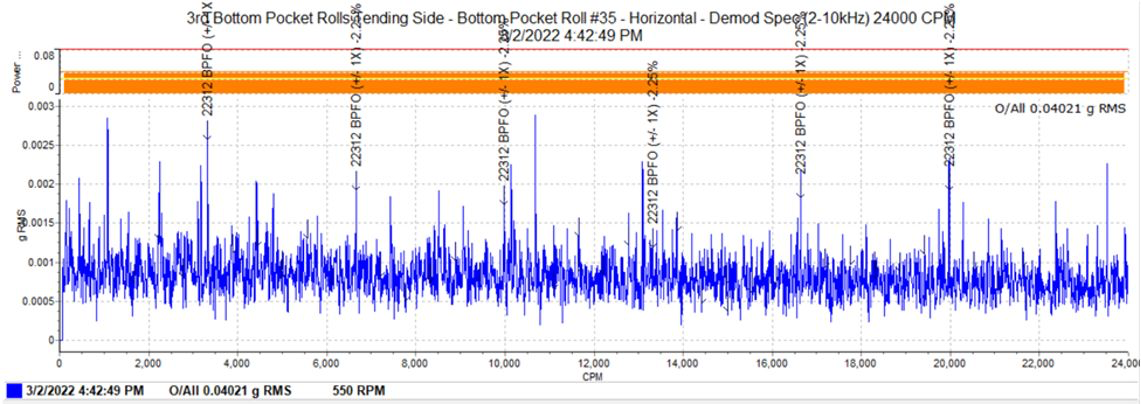

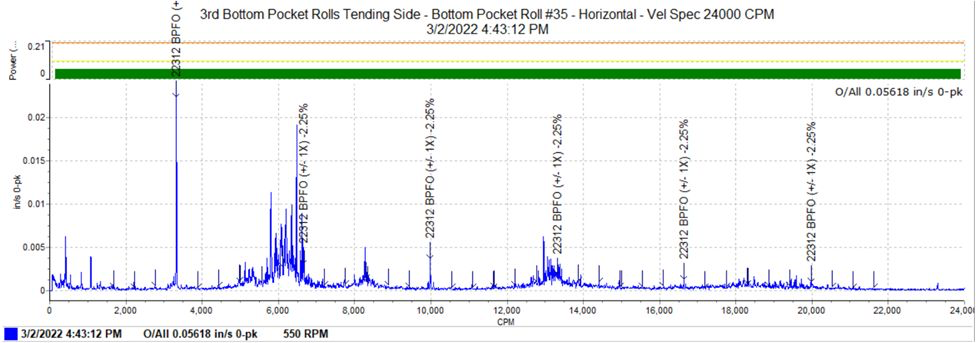

The Partnered Ultrasound team found an outer race defect on this pocket roll bearing using an SDT340 & UAS3, and then confirmed the BPFO defect with harmonics. We recommended changing the bearing because the defect frequencies were prevalent in velocity.
The bearing is an SKF 22312 on a paper machine, spinning at about 550 RPM/1500 ft/min.
Check out the data!
