Bearing Outer Race Defect Detection with Ultrasound
A ball pass frequency outer race defect was found in an SKF 23292 bearing using SDT340 and UAS3.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
The Partnered Ultrasound Team found a ball pass frequency outer race defect yesterday. The bearing is an SKF 23292.
Our Partnered Ultrasound Technicians found this fault using their SDT340 & analyzing it using UAS3.

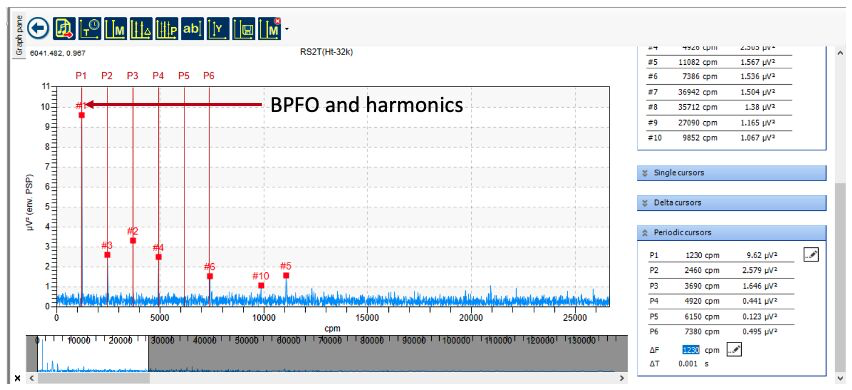

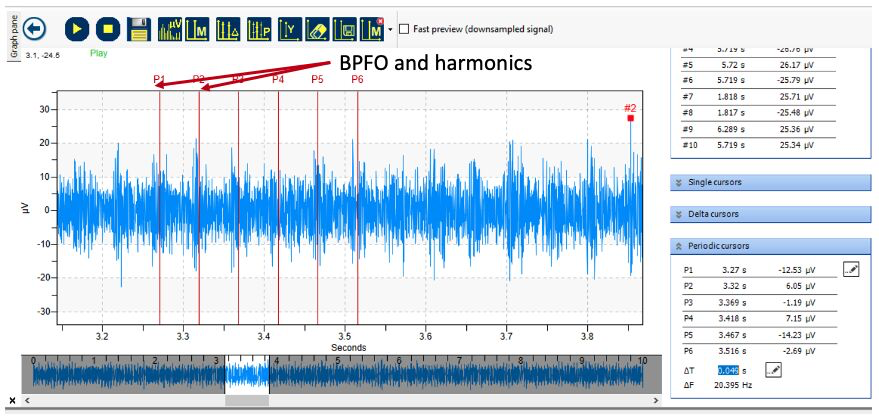

Check out the data!
