Paper Roll Defective Bearing Detection by Ultrasound
Defective bearing detected on 132 RPM Paper Roll using SDT340, RS2T Sensor, and UAS3.
Like what you see?
Sign up to share your own knowledge, like posts, and engage with the community!
Using an SDT340, RS2T Sensor, & UAS3, the Partnered Ultrasound team was able to detect a defective rolling element bearing (SKF-23264) on a 132 RPM Paper Roll.

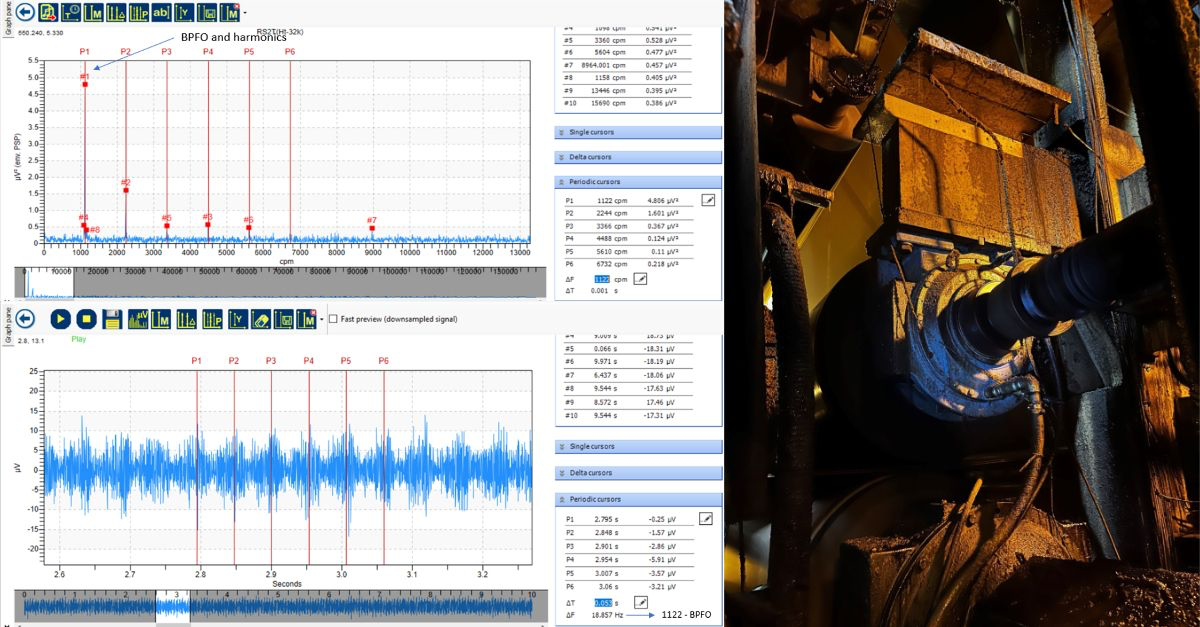

Our data indicates it has a ball pass frequency outer race defect with harmonics.
Checkout the data!
